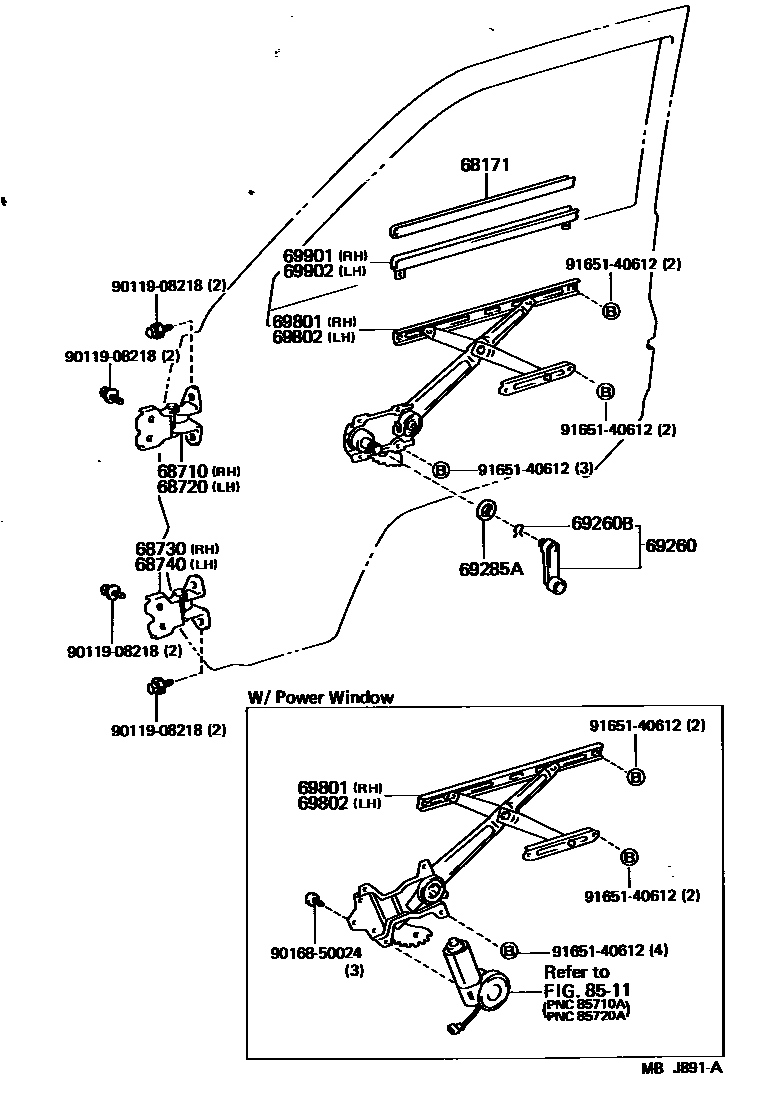

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iCM3#,4#,KM3#,YM30,40198509-198808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702iCM3#,4#,KM3#,YM30,40198509-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702iCM3#,4#,KM3#,YM30,40198509-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702iCM3#,4#,KM3#,YM30,40198509-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702iCM3#,4#,KM3#,YM30,40198509-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95702-14×2iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main69260-95702-16×2iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08×2iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

NATURAL,NATURAL WHITE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-95701iCM30,40,YM30,40..FXV; CM30,40,YM30,40..GXL198509-198808

W/POWER WINDOW

main69810-95704iCM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7198509-198808

main69810-95705iCM30,40,YM30,40..GXL198509-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-95701iCM30,40,YM30,40..FXV; CM30,40,YM30,40..GXL198509-198808

W/POWER WINDOW

main69820-95704iCM3#,4#,KM3#,YM40..DLX,SCA,SUC,SUP,SW,XL7198509-198808

main69820-95705iCM30,40,YM30,40..GXL198509-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iCM3#,4#,KM3#,YM30,40198509-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iCM3#,4#,KM3#,YM30,40198509-198808

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908218

main90119-08218

9016850024

main90168-50024

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
