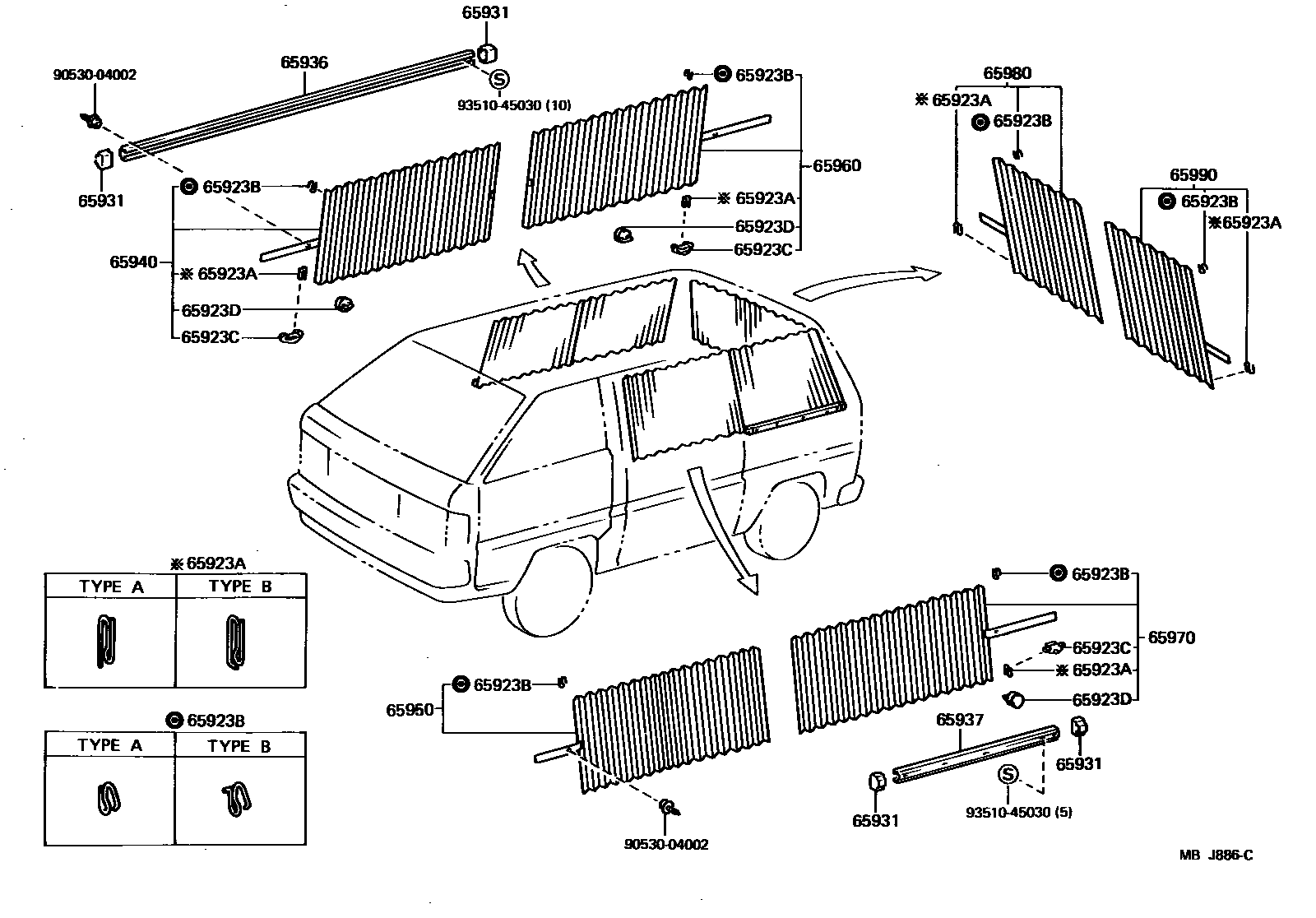

ROOM CURTAIN & ROOM RACK

65923AHOOK, CURTAIN, NO.1

main65923-87002×5iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,SCA198509-198808

TYPE B

main65923-95J02iCM30..SUC..TD198708-198808

TYPE A

65923BHOOK, CURTAIN, NO.2

main65923-95J01iCM30..SUC198509-198708

TYPE A

main65923-95J10×5iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,SCA198509-198808

TYPE B

65923CHOOK, CURTAIN, NO.3

main65909-95700×3iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

65923DHOOK, CURTAIN, NO.4

main65923-87003iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

65931COVER, CURTAIN RAIL

main65931-87002-04×4iCM30..SUC..TD198709-198808

BLUE,BLUE,TRIM4#,8#

main65931-87002-06×4iKM30..SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

main65931-87002-14×4iCM30,40,YM30,40..GXL198509-198808

BLUE,BLUE,TRIM4#,8#

main65931-87002-16×4iCM30,40,YM30,40..FXV,GXL198509-198808

BROWN,BROWN,TRIM4#

65936RAIL, CURTAIN, NO.1

main65936-95700iKM30..SCA,SUC198509-198808

main65936-95701iCM30,40,YM30,40..FXV,GXL198509-198808

65937RAIL, CURTAIN, NO.2

main65937-95700iCM30,40,YM30,40..FXV,GXL198509-198808

main65937-95701iCM30..SUC..TD198708-198808

65940CURTAIN ASSY, SIDE, FRONT RH

main65940-95703-04iCM30..GXL; CM40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main65940-95703-06iCM30..SUC..TD198708-198808

BROWN,BROWN,TRIM4#

65950CURTAIN ASSY, SIDE, FRONT LH

main65950-95702-04iCM30..GXL; CM40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main65950-95702-06iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

65960CURTAIN ASSY, SIDE, REAR RH

main65960-95702-04iCM30..GXL; CM40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main65960-95702-06iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

65970CURTAIN ASSY, SIDE, REAR LH

main65970-95702-04iCM30..SUC198509-198708

BLUE,BLUE,TRIM4#,8#

main65970-95702-06iCM30..SUC198509-198708

BROWN,BROWN,TRIM4#

65980CURTAIN ASSY, BACK DOOR, RH

main65980-95702-04iCM30..GXL; CM40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main65980-95702-06iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

65990CURTAIN ASSY, BACK DOOR, LH

main65990-95701-04iCM30..SUC198509-198708

BLUE,BLUE,TRIM4#,8#

main65990-95701-06iCM30..FXV,GXL; CM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

9053004002

main90530-04002

9351045030

main93510-45030

15 parts on this diagram · 1 diagram in section
