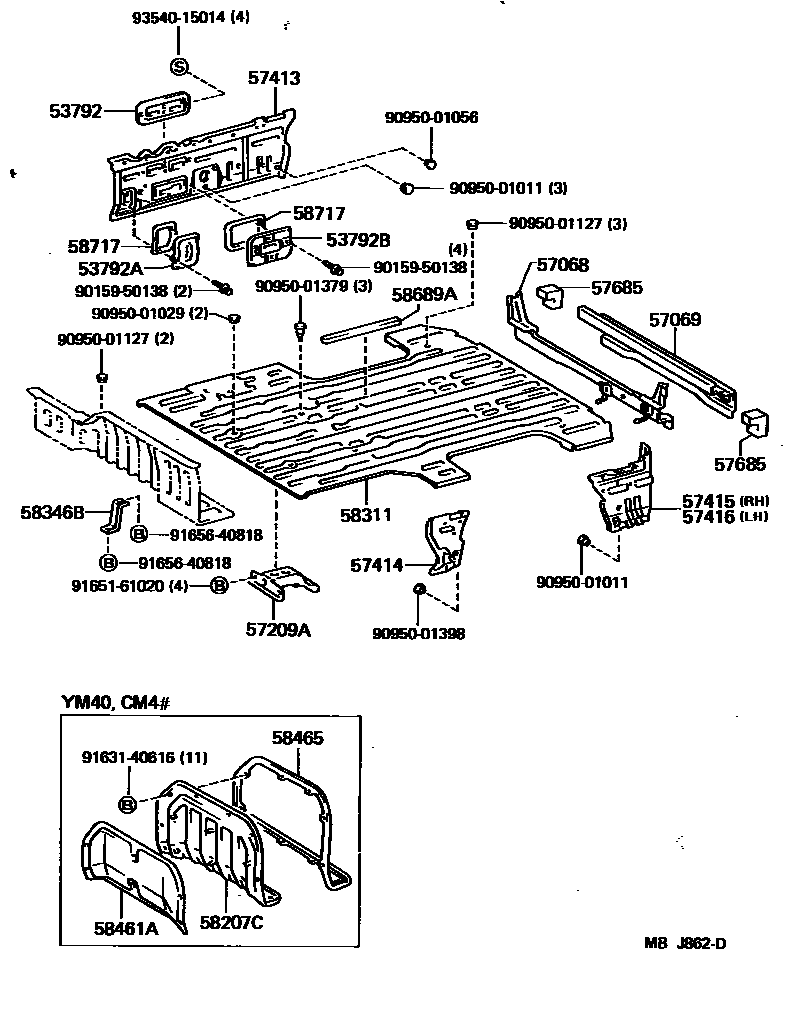

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

53792COVER, COOLER AIR INLET

main53792-95704iCM30,40,KM30,YM30,40198509-198808

53792ACOVER, COOLER AIR INLET NO.1

main53792-95706iCM30,40,KM30,YM30,40198509-198808

53792BCOVER, COOLER AIR INLET NO.2

main53792-95705iCM30,40,KM30,YM30,40198509-198808

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-95700iCM35,36,KM31,35,36..V1198509-198808

main57068-95701iCM35,KM35,36..MRF198509-198808

main57068-95702iCM30,4#,KM30,YM30,40198509-198808

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-95700iCM35,36,40,KM31,35,36,YM40198510-198808

main57069-95701iCM3#,KM3#,YM30198509-198510

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-95701iYM30..5F198509-198708

main57209-95702iYM40..5F198510-198708

main57209-95703iYM30..4FC198509-198708

main57209-95704iYM40..4FC198510-198708

main57209-95705iCM30,36;CM35..V1198509-198708

main57209-95707iCM4#198510-198708

main57209-95708iKM30,31..3FC198509-198708

main57209-95709iCM35..MRF198509-198708

main57209-95710iKM30,31..3FC198708-198808

main57209-95711iYM30..5F198708-198808

main57209-95712iYM30..4FC198708-198808

main57209-95713iCM30,36;CM35..V1198708-198808

main57209-95714iCM35..MRF198708-198808

main57209-95715iYM40..5F198708-198808

main57209-95716iYM40..4FC198708-198808

main57209-95717iCM4#198708-198808

57413RAIL, FLOOR SIDE, CENTER RH

main57405-95720iCM30,40,KM30,YM40..DLX,SW,XL7198509-198808

W/RR HEATER

main57405-95721iCM30,40,KM30,YM40..DLX,SW198509-198808

main57405-95722iCM30,KM30..SUC198509-198808

main57405-95723iCM30,40,YM30,40..FXV,GXL198509-198808

main57405-95728iKM30..SCA198608-198808

main57405-95730iCM35,KM35,36..V1..V4D..(02S,03S)198608-198808

main57405-95732iCM35,KM35,36..V4D..MRF198509-198808

main57405-95736iCM35,36,41,KM31,35,36..V1..V4D..(05S,06S)198608-198808

main57405-95737iCM35,36,41,KM31,35,36..V1..V4D..(05S,06S)198608-198808

W/RR HEATER

main57405-95738iCM35,36,KM31,35,36..V1..V5D..(05S,06S)198608-198808

main57413-95735iCM35,41,KM31,35,36..V1..V5D198509-198608

main57413-95737iCM35,KM35,36..V5D..MRF198509-198808

57414RAIL, FLOOR SIDE, CENTER LH

main57406-95714iCM35,36,41,KM31,35,36..V1..(05S,06S)198608-198808

main57406-95717iCM30,40,KM30,YM30,40..FXV,GXL,SUC198608-198808

main57414-95718iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM40..DLX,FXV,GXL,SUC,SUP,XL7198509-198608

main57414-95719iCM35,KM35,36..MRF198509-198808

57415RAIL, FLOOR SIDE, REAR RH

main57047-95700iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198509-198808

main57047-95705iCM36..V5D198608-198808

main57047-95706iCM35,KM35,36..MRF198509-198808

57416RAIL, FLOOR SIDE, REAR LH

main57048-95700iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198509-198808

main57048-95705iCM35,36,41,KM35,36..V1;CM30,40,KM30,31,YM40..SUP,SW198509-198808

main57048-95706iCM35,KM35,36..MRF198509-198808

57685DUST PROOF, REAR FLOOR CROSSMEMBER

main57685-95700×2iCM3#,KM3#,YM30198509-198708

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-95702iCM4#,YM40198510-198608

main58207-95703iCM4#,YM40..DLX,SW,XL7198608-198808

main58207-95704iCM40,YM40..FXV,GXL198608-198808

58311PAN, REAR FLOOR

main58311-95767iCM35,36..V1..V4D..05S198509-198608

main58311-95768iCM35..V4D..MRF..05S198509-198608

main58311-95769iCM41..V4D..05S198510-198608

main58311-95770iCM35..V1..V5D..05S198509-198608

main58311-95771iCM35..V5D..MRF..05S198509-198608

main58311-95772iCM41..V5D..05S198510-198608

main58311-95774iKM31,35,36..V1..V4D..(05S,06S)198509-198608

main58311-95775iKM35,36..V4D..MRF..06S198509-198608

main58311-95776iKM31,35,36..V1..V5D..(05S,06S)198509-198608

main58311-95777iKM35,36..V5D..MRF..06S198509-198608

main58311-95778iCM30,KM30..DLX198509-198608

W/RR HEATER

main58311-95779iCM30,KM30..DLX198509-198608

main58311-95782iCM30,KM30..XL7198509-198608

main58311-95783iCM40,YM40..XL7198510-198608

main58311-95G00iCM30,KM30,YM30..FXV,GXL,SUC198509-198808

main58311-95G01iCM40,YM40..FXV,GXL198510-198808

main58311-95G02iCM30,KM30..SW198509-198808

main58311-95G10iCM41..V4D..02S198510-198808

main58311-95G11iCM35,KM35,36..V4D..MRF..(02S,03S)198509-198808

main58311-95G13iCM41..V5D..02S198510-198808

main58311-95G14iCM35,KM35..V5D..MRF..(02S,03S)198509-198808

main58311-95G18iCM35,KM35,36..V1..V4D..(02S,03S)198509-198808

main58311-95G19iCM35,KM35..V1..V5D..(02S,03S)198509-198808

main58311-95G28iCM30,KM30..DLX198608-198808

main58311-95G29iCM30,KM30..DLX198608-198808

W/RR HEATER

main58311-95G30iCM30,KM30..XL7198608-198808

main58311-95G31iCM40,YM40..XL7198608-198808

main58311-95G32iCM35,36,KM31,35,36..V1..V4D..(05S,06S)198608-198808

main58311-95G33iCM35,36,KM31,35,36..V1..V5D..(05S,06S)198608-198808

main58311-95G34iCM35,KM35,36..V4D..MRF..(05S,06S)198608-198808

main58311-95G35iCM35,KM35,36..V5D..MRF..(05S,06S)198608-198808

main58311-95G36iCM41..V4D..05S198608-198808

main58311-95G37iCM41..V5D..05S198608-198808

main58311-95G38iCM40,YM40..SW198608-198808

main58311-95G39iKM30..SCA198608-198802

main58311-95G65iKM30..SCA198802-198808

58346BBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-95700iKM31,35,36..V1198509-198808

58461ASILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main59289-95700iCM4#,YM40198510-198808

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-95702iCM4#,YM40198510-198808

58689AWEIGHT, REAR FLOOR

main58688-95700×12iKM30..SW; KM31198509-198808

L=460

main58688-95701×7iKM35..VSP; KM36..VSG..03S; YM40198510-198808

L=300

58717PACKING, COOLER AIR INLET COVER

main58717-95700iCM30,40,KM30,YM30,40198509-198808

RR

main58717-95701iCM30,40,KM30,YM30,40198509-198808

FR

9015950138

main90159-50138

9095001011

main90950-01011

9095001029

main90950-01029

9095001056

main90950-01056

9095001127

main90950-01127

9095001379

main90950-01379

9095001398

main90950-01398

9163140616

main91631-40616

9165161020

main91651-61020

9165640818

main91656-40818

9354015014

main93540-15014

29 parts on this diagram · 4 diagrams in section
