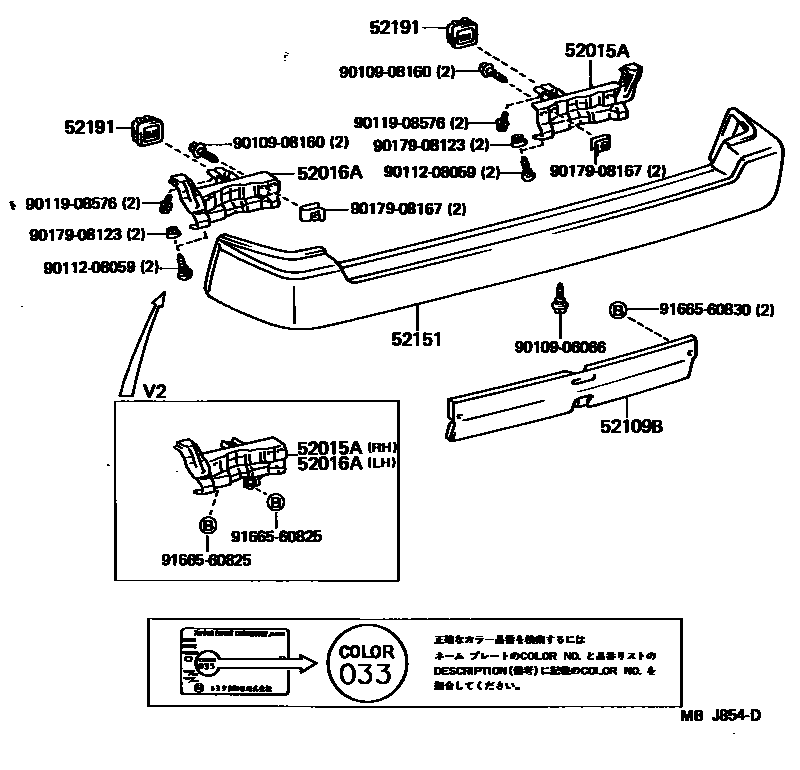

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-95700iCM40,YM40;CM35,36,KM31,35,36..V1198510-198808

main52015-95701iCM35,KM35,36..MRF198509-198808

main52015-95703iCM30,41,KM30,YM30198510-198808

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-95700iCM40,YM40;CM35,36,KM31,35,36..V1198510-198808

main52016-95701iCM35,KM35,36..MRF198509-198808

main52016-95703iCM35,KM35,36..V1;CM30,36,KM30,31,YM30198509-198510

52109BWEIGHT SUB-ASSY, REAR BUMPER

main52109-95700iCM3#,4#,KM3#,YM30,40198509-198808

52151BUMPER ASSY, REAR

main52151-95708iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

main52151-95709-03iCM30,YM30198709-198808

GLX LIMITED SILVER-M,SILVER-M,148

main52151-95709-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BLUE-M,BLUE METALLIC,2Y3

main52151-95709-05iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BEIGE-M,BEIGE METALLIC,4D2

main52151-95709-08iCM30,40,YM30,40..FXV198509-198608

WHITE,WHITE,033

main52151-95709-13iCM40,YM40198709-198808

GXL LIMITED DARK GRAY-M,DARK GRAY M,155

main52151-95709-15iCM30,40,YM30,40..FXV198509-198808

BEIGE-M,BEIGE METALLIC,2R4

main52151-95709-18iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198608-198708

WHITE,WHITE,041

main52151-95709-28iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198708-198808

WHITE,WHITE,045

main52151-95711iCM40,YM40..GXL198610-198704

GXL LIMITED,8B5

52191PACKING, REAR BUMPER STAY

main52191-95701×2iCM3#,4#,KM3#,YM30,40198509-198808

9010906066

main90109-06066

9010908160

main90109-08160

9011208059

main90112-08059

9011908576

main90119-08576

9017908123

main90179-08123

9017908167

main90179-08167

9166560825

main91665-60825

9166560830

main91665-60830

13 parts on this diagram · 1 diagram in section
