Toyota LITEACE VAN,WAGON — BRAKE TUBE & CLAMP

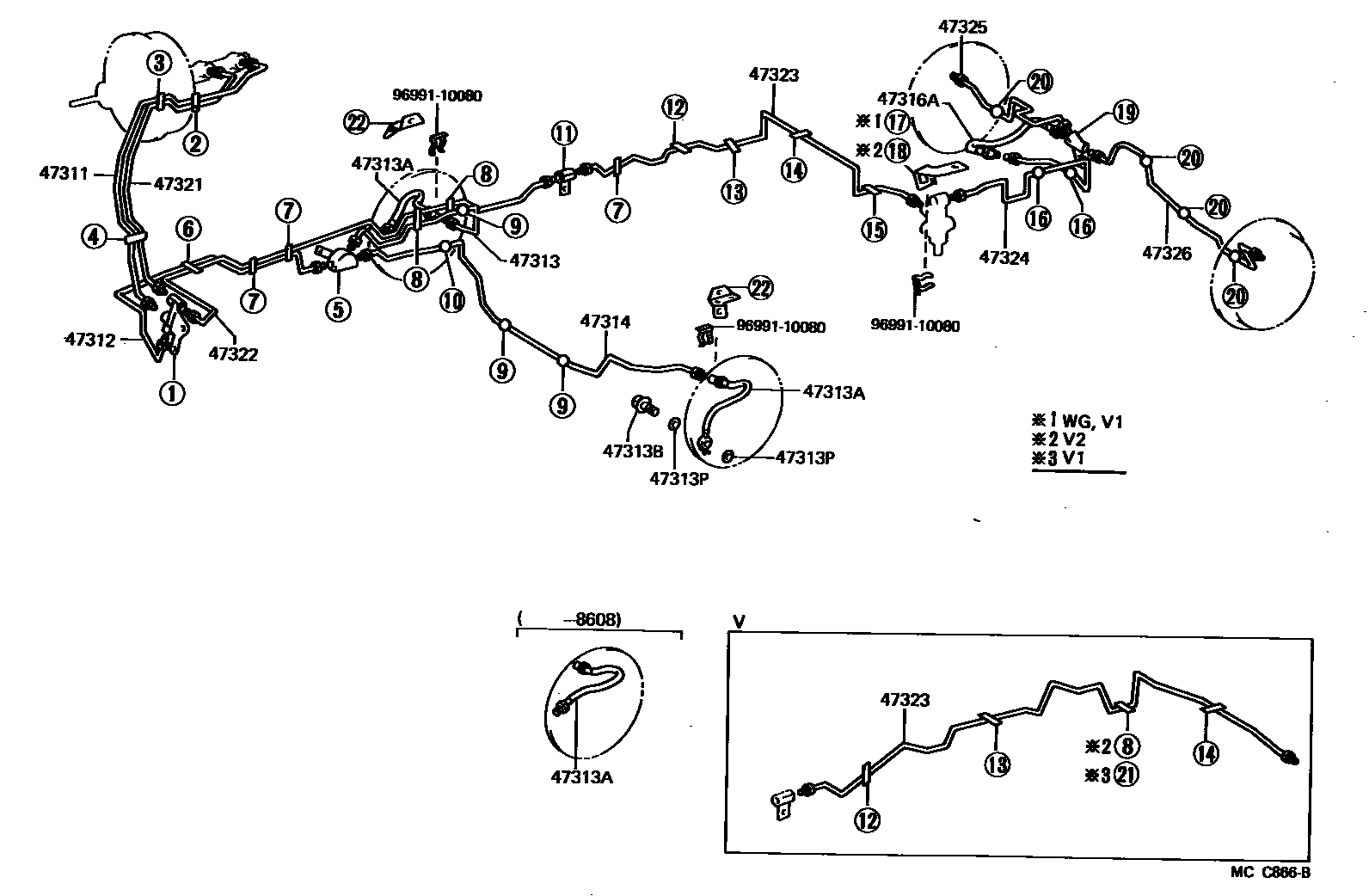

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

47314TUBE, FRONT BRAKE, NO.4

47316TUBE, FRONT BRAKE, NO.6

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321TUBE, REAR BRAKE, NO.1

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

9699110080

16 parts on this diagram · 4 diagrams in section

BRAKE TUBE & CLAMP for Toyota LITEACE VAN,WAGON

This section contains 77 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota LITEACE VAN,WAGON. Key components include: BUSH & BOOT KIT, LOAD SENSING SPRING, TUBE, FRONT BRAKE, NO.1, WAY, NO.1(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, WAY, NO.2(FOR FRONT BRAKE TUBE).
