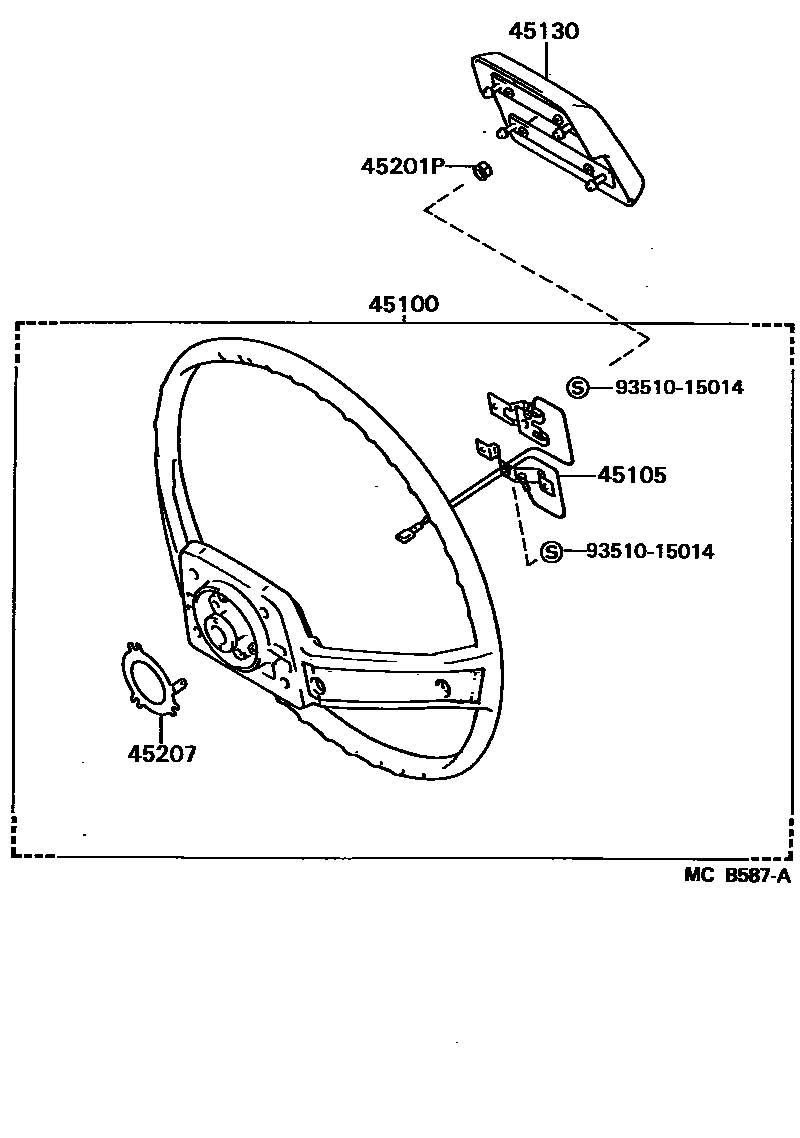

STEERING WHEEL

0001 1 0002 1URETHANE

45100WHEEL ASSY, STEERING

main45100-10250-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

main45100-10250-14iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

main45100-10261-01iCM30,40,YM30,40..FXV198509-198808

LEATHER,BLACK,BLACK

main45100-10262-06iCM30,40,YM30,40..FXV198804-198805

main45100-10270-06iCM35,36,41,KM31,35,36198509-198808

main45100-10270-14iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-10010iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7; CM30,40,YM30,40..FXV198509-198808

LEATHER

main45105-10020iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

URETHANE

45130BUTTON ASSY, HORN

main45130-27020-04iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main45130-27020-06iCM35,36,41,KM31,35,36198509-198808

BROWN,BROWN,TRIM4#

main45130-27030-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

URETHANE BLUE,BLUE,TRIM4#,8#

main45130-27030-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

URETHANE,BROWN,BROWN,TRIM4#

main45130-27040-06iCM30,40,YM30,40..FXV198804-198805

45201PNUT, STEERING WHEEL SET

main90179-12086iCM3#,4#,KM3#,YM30,40198509-198808

45207RING, HORN CONTACT

main45176-35020iCM3#,4#,KM3#,YM30,40..DLX,FXV,SUP,SW,XL7198509-198808

9351015014

main93510-15014

6 parts on this diagram · 2 diagrams in section
