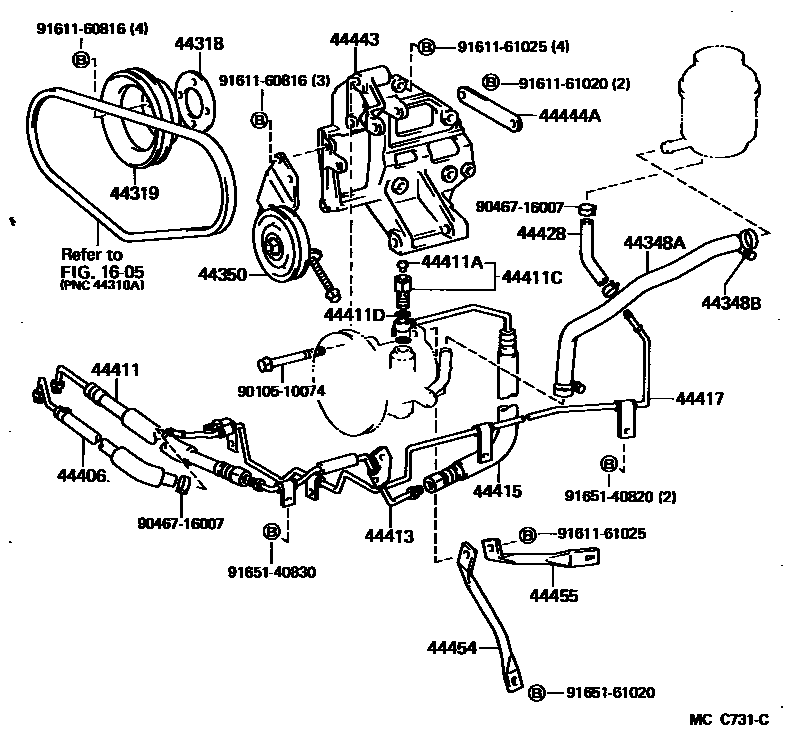

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-27010iKM30,31,36198509-198808

main44318-28012iYM30,40198509-198808

44319PULLEY, VANE PUMP DRIVE

main44319-27010iCM3#,4#198509-198808

main44319-27020iKM30,31,36198509-198808

main44319-28013iYM30,40198509-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-27020iKM30,31,36198509-198510

main44348-27021iKM30,31,36198510-198808

main44348-27030iYM30,40198509-198603

main44348-27060iCM3#198509-198808

main44348-27070iCM4#198510-198808

main44348-27100iYM30,40198603-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×3iCM3#,4#,KM30,31,36,YM30,40198509-198808

44350PULLEY ASSY, POWER STEERING IDLE

main44350-27010iKM30,31,36198509-198808

main44350-28011iYM30,40198509-198808

44406TUBE SUB-ASSY, RETURN

main44406-27010iCM3#,KM30,31,36,YM30198509-198808

main44406-27020iYM40198510-198808

main44406-27030iCM4#198510-198808

44411HOSE, PRESSURE FEED

main44411-27020iKM30,31,36,YM30198509-198808

main44411-27030iCM3#198509-198808

main44411-27040iYM40198510-198808

main44411-27050iCM4#198510-198808

44411ASEAT, UNION(FOR PRESSURE FEED HOSE)

main90410-05005iKM30,31,36198509-198808

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iCM3#,4#198509-198808

main90401-16010iKM30,31,36198509-198808

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242×2iCM3#,4#,KM30,31,36198509-198808

44413TUBE, PRESSURE FEED, NO.1

main44413-27020iKM30,31,36198509-198808

44415HOSE, PRESSURE FEED, NO.2

main44415-27010iKM30,31,36198509-198601

main44415-27011iKM30,31,36198601-198808

main44415-27021iCM3#198509-198808

main44415-27030iCM4#198510-198808

44417TUBE, RETURN, NO.2

main44417-27040iKM30,31,36,YM30198509-198808

44428HOSE, RETURN, NO.2

main44428-27010iKM30,31,36,YM30,40198509-198808

main44428-27020iCM3#198509-198808

44443BRACKET, PUMP

main44443-14030iCM3#,4#198509-198808

main44443-27010iKM30,31,36198509-198808

main44443-28011iYM30198509-198808

main44443-28021iYM40198510-198808

44444ASTAY, PUMP, REAR NO.1

main44444-27020iKM30,31,36198509-198808

main44444-27030iYM30,40198509-198808

44454STAY, PUMP, REAR NO.2

main44454-27010iKM30,31,36198509-198808

44455STAY, PUMP, REAR NO.3

main44455-27011iKM30,31,36198509-198808

9010510074

main90105-10074

9046716007

main90467-16007

9161160816

main91611-60816

9161161020

main91611-61020

9161161025

main91611-61025

9165140820

main91651-40820

9165140830

main91651-40830

9165161020

main91651-61020

27 parts on this diagram · 5 diagrams in section
