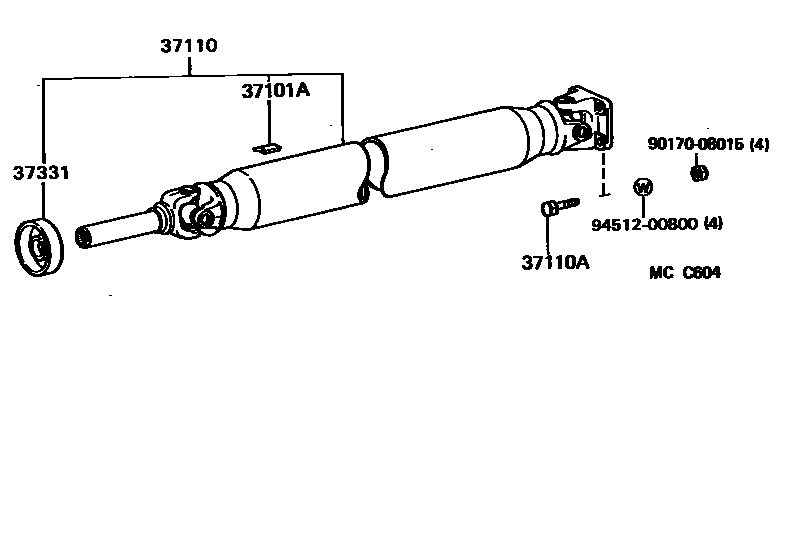

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iCM4#,YM40198510-198808

main90937-01136iCM3#,KM3#,YM30198509-198608

main90937-01140iCM3#,KM3#,YM30198509-198608

main90937-01147iCM4#,YM40198510-198808

main90937-01148iCM4#,YM40198510-198808

main90937-01149iCM4#,YM40198510-198808

main90937-01150iCM3#,KM3#,YM30198509-198808

main90937-01151iCM3#,KM3#,YM30198509-198808

main90937-01152iCM3#,KM3#,YM30198509-198808

main90937-01153iCM3#,KM3#,YM30198509-198608

main90937-01154iCM3#,KM3#,YM30198509-198608

main90937-01155iCM3#,KM3#,YM30198509-198608

main90937-01156iCM3#,KM3#,YM30198509-198608

main90937-01157iCM3#,KM3#,YM30198509-198608

main90937-01158iCM4#,YM40198510-198608

main90937-01184iCM4#,YM40198510-198808

main90937-01191iCM4#,YM40198510-198808

main90937-01192iCM4#,YM40198510-198808

main90937-01193iCM4#,YM40198510-198808

main90937-01194iCM4#,YM40198510-198808

main90937-01198iCM4#,YM40198510-198608

main90937-01199iCM4#,YM40198510-198608

main90937-01200iCM4#,YM40198510-198608

main90937-01268iCM4#,YM40198510-198808

main90937-01269iCM4#,YM40198510-198808

main90937-01270iCM4#,YM40198510-198808

main90937-01271iCM4#,YM40198510-198808

main90937-01272iCM4#,YM40198510-198808

main90937-01273iCM4#,YM40198510-198808

main90937-01274iCM4#,YM40198510-198808

main90937-01290iCM4#,YM40198510-198808

main90937-01291iCM4#,YM40198510-198808

main90937-01292iCM4#,YM40198510-198808

main90937-01293iCM4#,YM40198510-198808

main90937-01294iCM4#,YM40198510-198808

main90937-01295iCM4#,YM40198510-198808

main90937-01296iCM4#,YM40198510-198612

main90937-01297iCM4#,YM40198510-198612

main90937-01298iCM4#,YM40198510-198612

main90937-01299iCM4#,YM40198510-198612

main90937-01300iCM4#,YM40198510-198612

main90937-01301iCM4#,YM40198510-198808

main90937-01302iCM4#,YM40198510-198808

main90937-01303iCM4#,YM40198510-198808

main90937-01304iCM4#,YM40198510-198808

37110SHAFT ASSY, PROPELLER

main37110-27130iCM30,35..5F; KM30,31..3FC198509-198808

main37110-27140iCM30,36,YM30..4FC198509-198808

main37110-27150iYM30..5F198509-198808

main37110-27160iKM30,35,36..4F,4H198509-198808

main37110-27190iKM30,31,36..5F198509-198808

main37110-27200iCM4#,YM40..5F198510-198808

main37110-27220iYM40..4FC198510-198808

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×4iCM4#,YM40198510-198808

main90105-10085×8iCM4#,YM40198510-198808

37331COVER, SLIDING SHAFT DUST

main37331-28010iCM4#,YM40198510-198808

main37331-30010iCM3#,KM3#,YM30198509-198808

9017008015

main90170-08015

9451200800

main94512-00800

6 parts on this diagram · 2 diagrams in section
