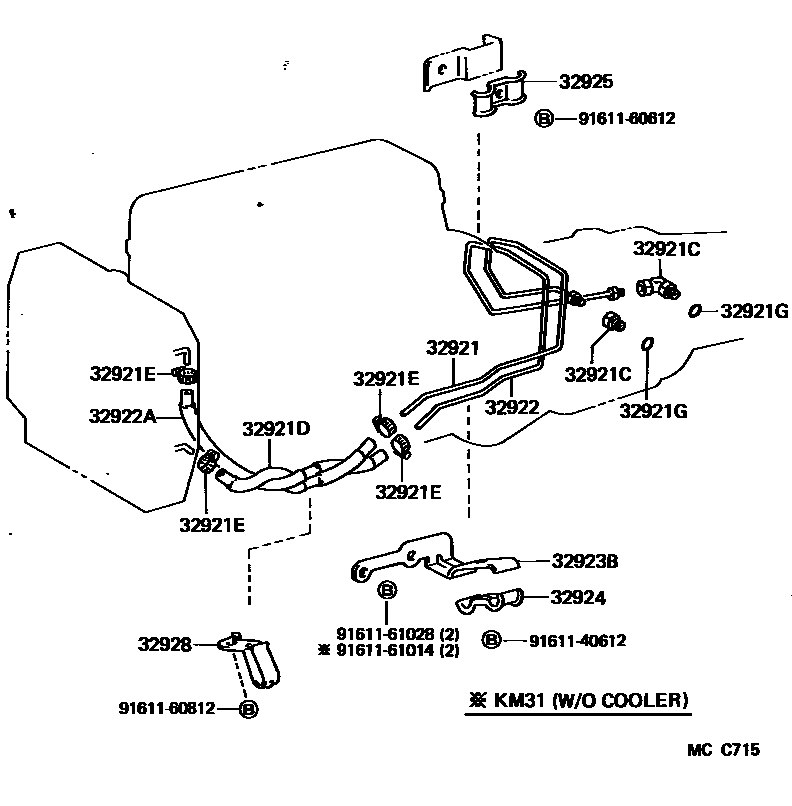

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-27020iKM30,31..3FC198509-198808

main32921-27030iYM30..4FC198509-198808

main32921-27040iCM30,36..4FC198509-198808

main32921-27050iYM40..4FC198510-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iCM30,36,KM30,31,YM30..ATM198509-198808

FR

main90407-14008iYM40..4FC198510-198808

FR

main90407-16010iCM30,36,KM30,31,YM30,40..ATM198509-198808

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-27030iKM30,31..3FC198509-198712

main32941-27040iKM30,31..3FC198712-198808

main32941-27050iCM30,36..4FC198509-198712

main32941-27060iYM40..4FC198510-198712

main32941-27120iCM30,36..4FC198712-198808

main32941-27140iYM40..4FC198712-198808

main32941-28050iYM30..4FC198509-198712

main32941-28080iYM30..4FC198712-198808

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002×4iCM30,36,KM30,31,YM30,40..ATM198509-198712

main90467-13039×4iCM30,36,KM30,31,YM30,40..ATM198712-198808

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iCM30,36,KM30,31,YM30,40..ATM198509-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-27020iKM30,31..3FC198509-198808

main32922-27030iYM30..4FC198509-198808

main32922-27040iCM30,36..4FC198509-198808

main32922-27050iYM40..4FC198510-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-27030iKM30,31..3FC198509-198712

main32942-27040iCM30,36..4FC198509-198712

main32942-27090iKM30,31..3FC198712-198808

main32942-27110iCM30,36..4FC198712-198808

main32942-27130iYM40..4FC198712-198808

main32942-28050iYM30..4FC198509-198712

main32942-28060iYM40..4FC198510-198712

main32942-28100iYM30..4FC198712-198808

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08628iYM40..4FC198510-198808

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-27010iKM31..3FC198509-198808

main32923-27020iKM30..3FC; KM31..3FC198509-198808

W/COOLER

main32923-28050iYM30..4FC198509-198808

main32923-28060iYM30..4FC198509-198808

W/COOLER

main32924-27010iCM30,36..4FC198509-198808

32924CLAMP, OIL COOLER TUBE, NO.2

main32929-28010iCM30,36,YM30,40..4FC198509-198808

main90462-12044iKM30,31..3FC198509-198808

32925CLAMP, OIL COOLER TUBE, NO.3

main32923-28040iCM30,36..4FC198509-198808

main90461-08628iYM30..4FC198509-198808

main90462-12044iKM30,31..3FC198509-198808

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-28010iYM40..4FC198510-198808

main90949-01204iYM30..4FC198509-198712

main90949-01257iCM30,36,KM30,31..ATM198509-198712

main90949-01392iYM30..4FC198712-198808

main90949-01450iCM30,36,KM30,31..ATM198712-198808

9161140612

main91611-40612

9161160812

main91611-60812

9161161014

main91611-61014

9161161028

main91611-61028

16 parts on this diagram · 4 diagrams in section
