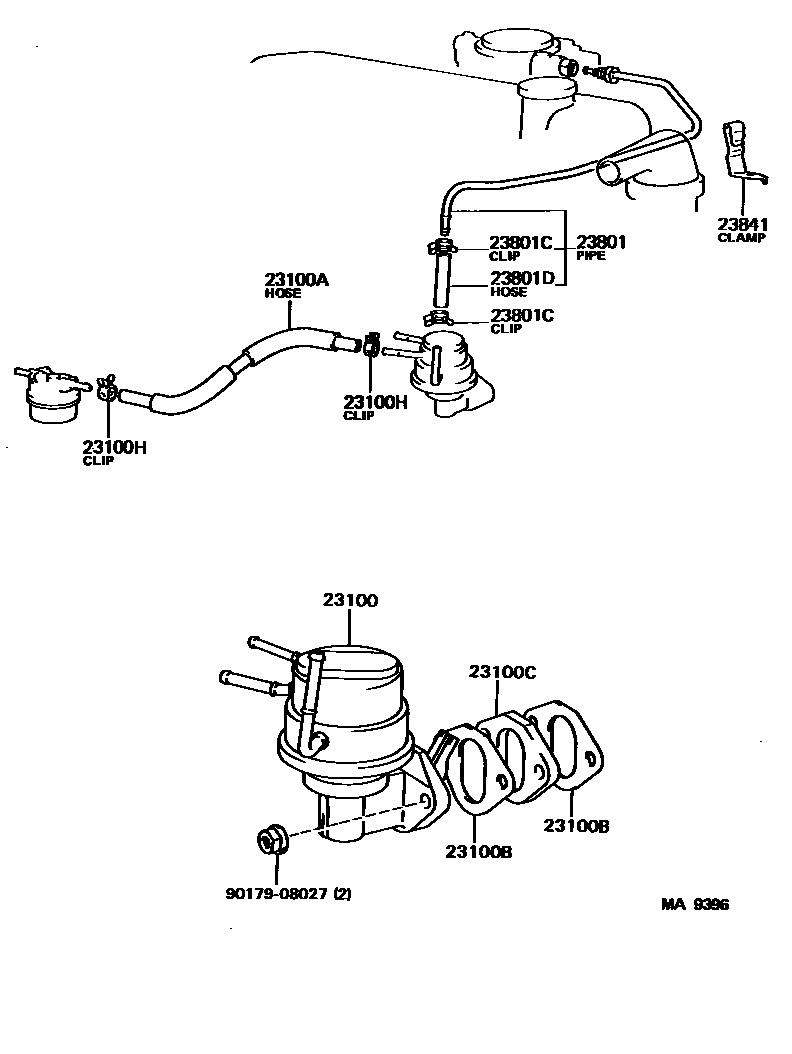

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-13100i4KJ,5K#..KM3#198509-198807

main23100-13101i4KJ,5K#..KM3#198807-198808

main23100-79015i2YU,3YU..YM30,40198509-198708

main23100-79055i2YU,3YU..YM30,40198708-198808

23100AHOSE, FUEL

main90447-12058i2YU,3YU..YM30,40198509-198808

main90447-12065i4KJ,5K#..KM3#198509-198808

23100BGASKET, FUEL PUMP

main90923-05005×2i2YU,3YU..YM30,40198509-198708

main90923-05006×2i4KJ,5K#..KM3#198509-198808

main90923-05016×2i2YU,3YU..YM30,40198708-198808

23100CINSULATOR, FUEL PUMP

main90923-06001i2YU,3YU..YM30,40198509-198708

main90923-06003i4KJ,5K#..KM3#198509-198808

main90923-06008i2YU,3YU..YM30,40198708-198808

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i2YU,3YU..YM30,40; 4KJ,5K#..KM3#198509-198808

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13100i4KJ,5K#..KM3#198509-198612

main23801-13120i4KJ,5K#..KM3#198612-198808

main23811-71011i2YU,3YU..YM30,40198509-198808

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×4i2YU,3YU..YM30,40; 4KJ,5K#..KM3#198509-198808

23801DHOSE, FUEL PIPE, NO.1

main95332-06010i2YU,3YU..YM30,40; 4KJ,5K#..KM3#198509-198701

main95333-06007i4KJ,5K#..KM3#198701-198702

main95333-06010i4KJ,5K#..KM3#198702-198808

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-13020i4KJ,5K#..KM3#198612-198808

main90461-08532i4KJ,5K#..KM3#198509-198612

9017908027

main90179-08027

10 parts on this diagram · 2 diagrams in section
