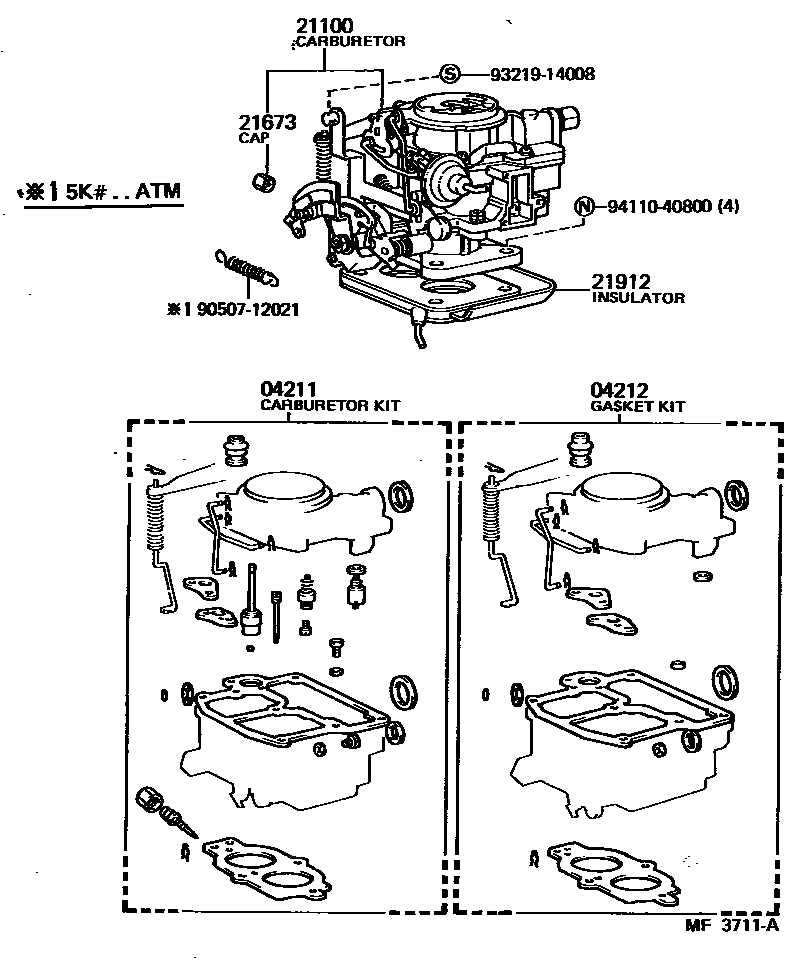

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-13270i4KJ..KM35198509-198808

main04211-13340i5KU..KM30198509-198808

main04211-13350i5KJ..KM31,36198509-198712

main04211-13351i5KJ..KM31,36198712-198808

main04211-72100i2YU,3YU..YM30,40198509-198808

04212GASKET KIT, CARBURETOR

main04212-13060i4KJ..KM35198509-198808

main04212-13070i5K#..KM30,31,36198509-198808

main04212-72020i2YU,3YU..YM30,40198509-198808

21100CARBURETOR ASSY

main21100-13391i4KJ..KM35198509-198808

main21100-13530i5KU..KM30..MTM198509-198808

main21100-13540i5KU..KM30..3FC198509-198808

main21100-13550i5KJ..KM31,36..MTM198509-198808

main21100-13560i5KJ..KM31..3FC198509-198808

main21100-72170i2YU,3YU..YM30,40198509-198708

main21100-72240i2YU,3YU..YM30,40198708-198808

21673CAP, IDLE LIMIT

main21673-13280i2YU,3YU..YM30,40; 4KJ,5K#..KM3#198509-198808

21912INSULATOR, CARBURETOR HEAT

main21912-13031i4KJ,5K#..KM3#198509-198808

main21912-72010i2YU,3YU..YM30,40198509-198808

9050712021

main90507-12021

9321914008

main93219-14008

9411040800

main94110-40800

8 parts on this diagram · 2 diagrams in section
