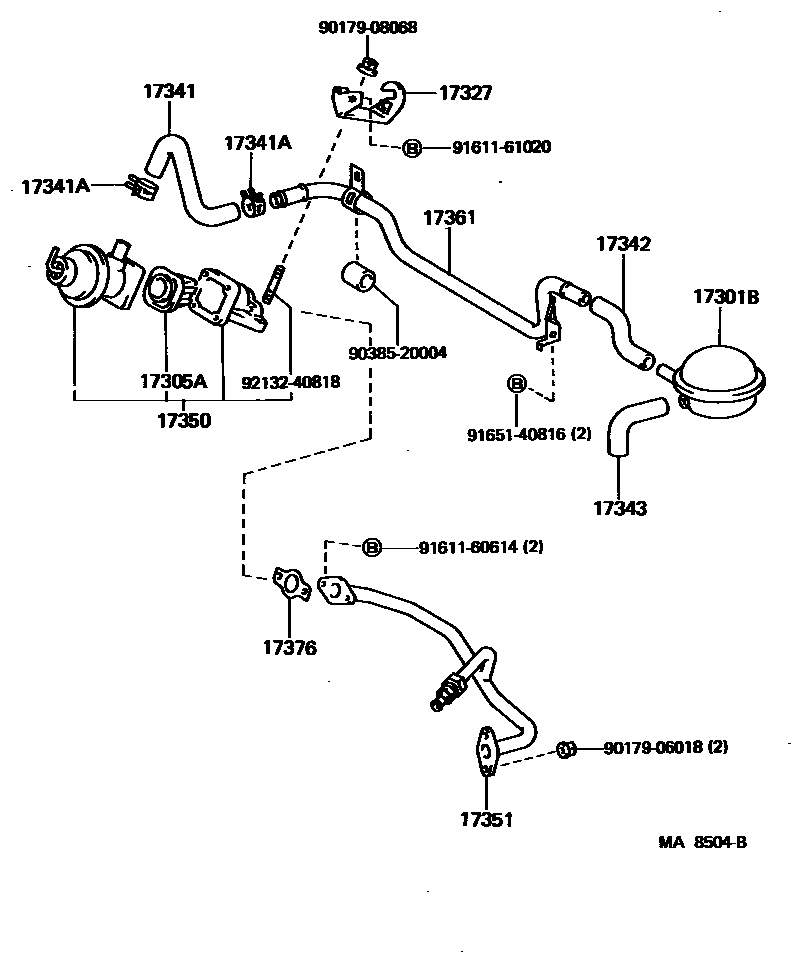

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-13020i5KU..KM30198509-198808

17305AVALVE SUB-ASSY, REED

main17305-13030i5KU..KM30198509-198808

main17305-28010×2i2YU,3YU..YM30,40198509-198808

DENSO

main17305-71010×2i2YU,3YU..YM30,40198509-198808

NOK

17327BRACKET, REED VALVE

main17327-13020i5KU..KM30198509-198808

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-13040i5KU..KM30198509-198808

main17341-71010i2YU,3YU..YM30,40198509-198808

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26001×2i5KU..KM30198509-198808

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-13020i5KU..KM30198509-198808

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-13020i5KU..KM30198509-198808

17350VALVE ASSY, REED

main17350-13070i5KU..KM30198509-198808

17351MANIFOLD, AIR INJECTION

main17306-13040i5KU..KM30198509-198808

main17306-71010i2YU,3YU..YM30,40198509-198808

17361TUBE, AIR

main17361-13050i5KU..KM30198509-198808

17376GASKET, AIR TUBE, NO.1

main17376-13010×2i5KU..KM30198509-198808

main17376-71010i2YU,3YU..YM30,40198509-198808

9017906018

main90179-06018

9017908068

main90179-08068

9038520004

main90385-20004

9161160614

main91611-60614

9161161020

main91611-61020

9165140816

main91651-40816

9213240818

main92132-40818

18 parts on this diagram · 2 diagrams in section
