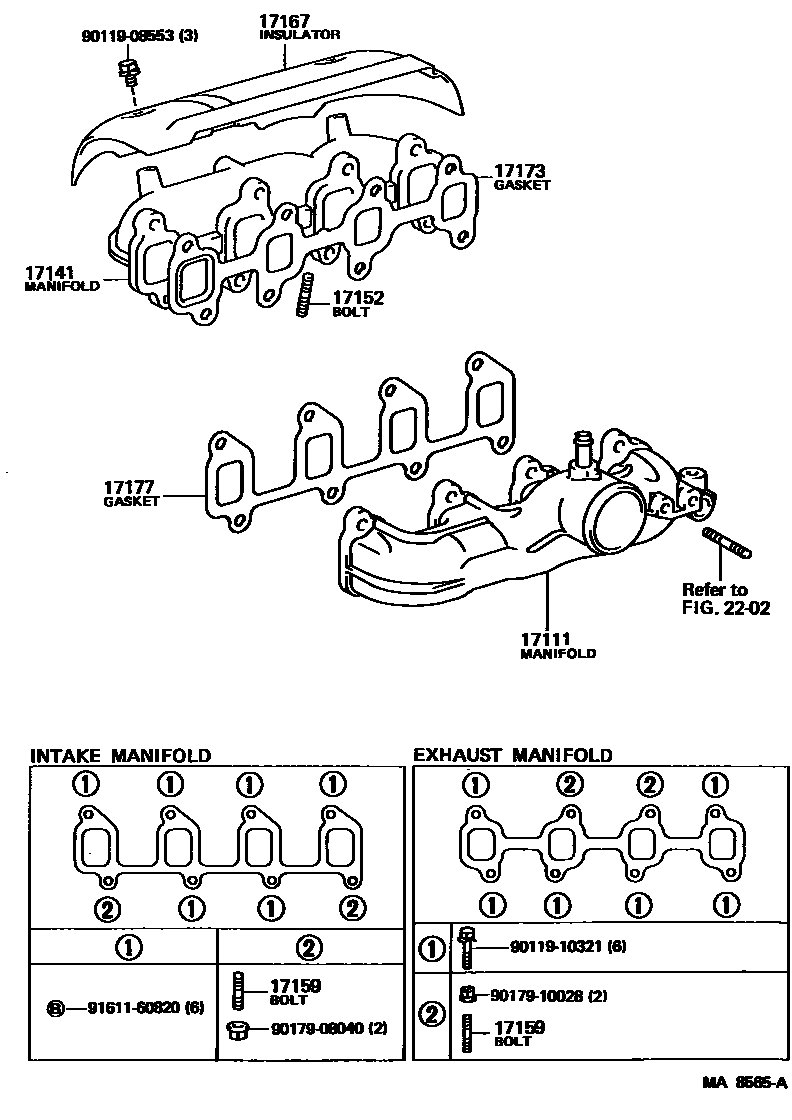

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-64070i2CT..CM30,40198509-198708

main17101-64080i1C,2C..CM3#,41198509-198808

main17101-64090i2CT..CM30,40198708-198808

main17111-71010i2YU,3YU..YM30,40198509-198808

17141MANIFOLD, EXHAUST

main17141-64011i1C,2C..CM3#,41198509-198808

sub17141-64012

sub17173-64060

main17141-64080i2CT..CM30,40198509-198808

main17141-71010i2YU,3YU..YM30,40198509-198808

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10056i4KJ,5K#..KM3#198509-198705

sub90116-10087

main90116-10058i1C,2C#..CM3#,4#198509-198808

main90116-10087i4KJ,5K#..KM3#198705-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i2YU,3YU..YM30,40198509-198808

main90116-10095i1C,2C#..CM3#,4#198509-198808

EXHAUST MANIFOLD

main92122-41028i4KJ,5K#..KM3#198509-198808

L=43,S=15&15

main92122-60820i1C,2C#..CM3#,4#198509-198808

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64020i1C,2C..CM3#,41198509-198808

main17167-64040i2CT..CM30,40198509-198808

main17167-71020i2YU,3YU..YM30,40198509-198808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64020i1C,2C..CM3#,41198509-198808

sub17173-64050

main17173-64030i2CT..CM30,40198509-198608

sub17173-64050

main17173-64050i2CT..CM30,40198608-198808

sub17173-64051

sub17173-64080

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i1C,2C#..CM3#,4#198509-198808

sub17177-64020

2202

9011908553

main90119-08553

9011910321

main90119-10321

9017908040

main90179-08040

9017910028

main90179-10028

9161160820

main91611-60820

13 parts on this diagram · 6 diagrams in section
