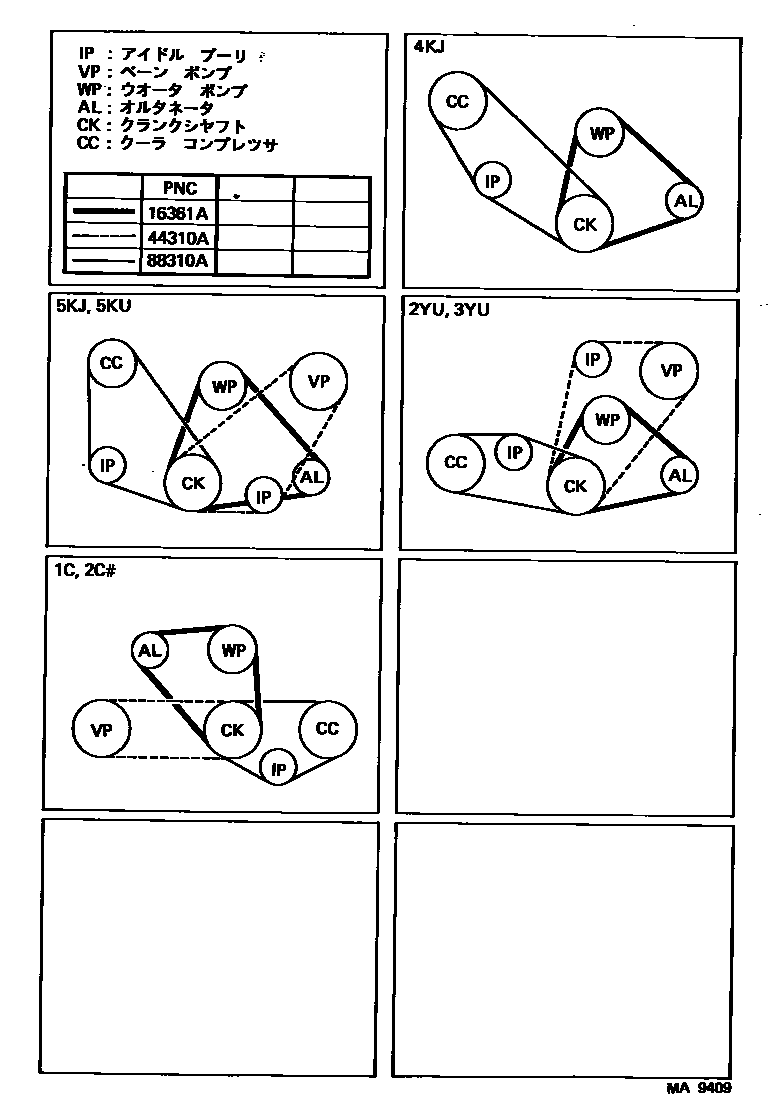

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02144i1C,2C#..CM3#,4#198509-198609

main90916-02169i1C,2C#..CM3#,4#198609-198808

main99321-00870i4KJ,5KJ..KM31,35,36198509-198808

main99321-00885i5KU..KM30..DLX,SW,XL7198608-198808

main99321-00950i5KJ..KM31,36; 5KU..KM30..DLX,SW,XL7; 5KU..KM30..SCA,SUC198608-198808

W/PS

main99365-50820i2YU,3YU..YM30,40198509-198808

44310ABELT, V(FOR VANE PUMP)

main90916-02122iCM3#,4#198509-198808

main99332-00970iKM30,31,36198509-198808

main99332-01040iYM30198509-198808

main99332-01055iYM40198510-198808

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00905iYM30198509-198808

main99322-00980iKM3#198509-198808

main99322-01000iKM30..MRF198509-198608

W/*ODAC

main99322-50835iCM3#198509-198808

main99332-60835iCM4#198510-198808

main99332-60905iYM40198510-198808

3 parts on this diagram · 1 diagram in section
