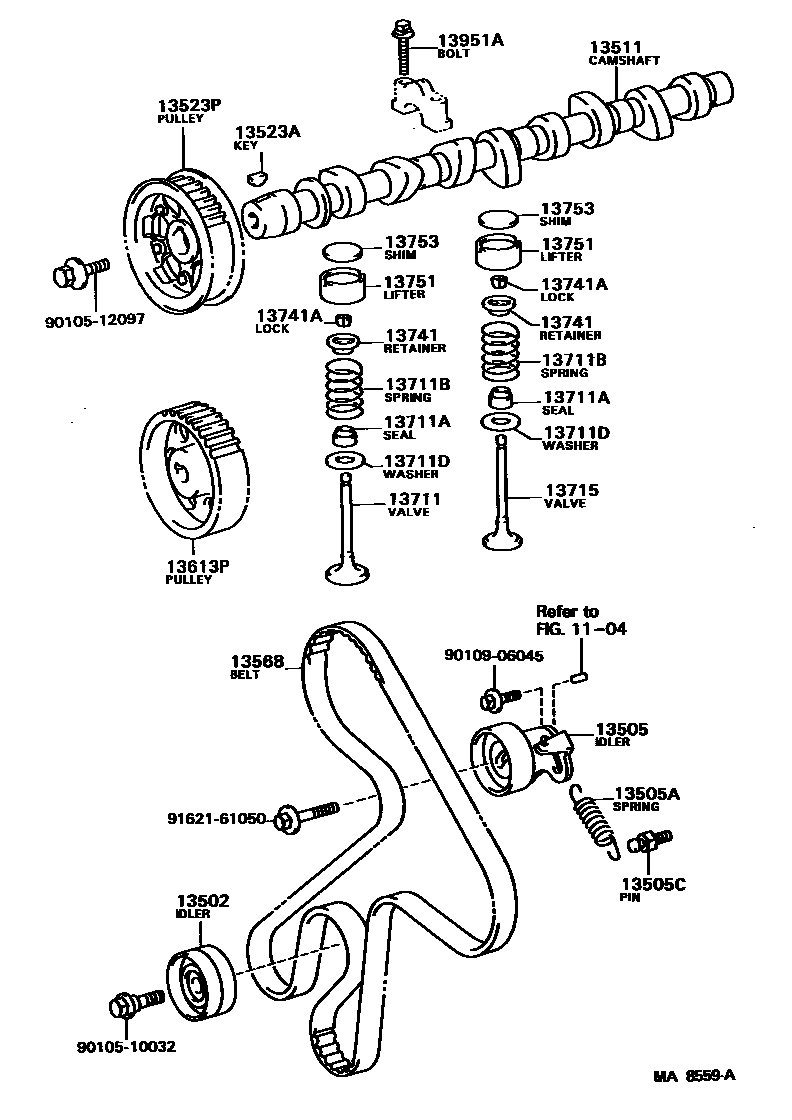

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-64020i1C,2C#..CM3#,4#198509-198808

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-64020i1C,2C#..CM3#,4#198509-198612

main13505-64021i1C,2C#..CM3#,4#198612-198808

13505ASPRING, TENSION(FOR IDLER)

main90507-18006i1C,2C#..CM3#,4#198509-198808

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i1C,2C#..CM3#,4#198509-198808

13511CAMSHAFT

main13501-13010i4KJ..KM35198509-198612

main13501-13011i4KJ..KM35198612-198808

main13501-13040i5K#..KM30,31,36198509-198808

main13511-64030i1C,2C..CM3#,41198509-198808

main13511-64040i2CT..CM30,40198509-198808

main13511-73900i2YU,3YU..YM30,40198509-198707

main13511-73902i2YU,3YU..YM30,40198707-198808

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i2YU,3YU..YM30,40198509-198808

main13523-13030i4KJ,5K#..KM3#198509-198808

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1C,2C#..CM3#,4#198509-198808

main90280-05010i2YU,3YU..YM30,40198509-198609

main95161-10519i2YU,3YU..YM30,40198609-198808

13523PPULLEY, CAMSHAFT TIMING

main13051-64011i1C,2C#..CM3#,4#198509-198808

13568BELT, TIMING

main13568-64010i1C,2C#..CM3#,4#198509-198603

main13568-64011i1C,2C#..CM3#,4#198603-198808

13613PPULLEY, INJECTION PUMP DRIVE

main13613-64011i1C,2C#..CM3#,4#198509-198808

13711VALVE, INTAKE

main13711-24011×4i4KJ,5K#..KM3#198509-198808

main13711-64020×4i1C,2C#..CM3#,4#198509-198808

main13711-71010×4i2YU,3YU..YM30,40198509-198808

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02053×8i1C,2C#..CM3#,4#198509-198808

main90913-02057×8i4KJ,5K#..KM3#198509-198808

main90913-02065×8i2YU,3YU..YM30,40198509-198704

main90913-02073×8i2YU,3YU..YM30,40198704-198808

13711BSPRING, COMPRESSION(FOR INNER)

main90501-42010×8i5K#..KM30,31,36198509-198808

main90501-42293×8i4KJ..KM35198509-198808

main90501-43003×8i1C,2C#..CM3#,4#198509-198808

main90501-47005×8i2YU,3YU..YM30,40198509-198808

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16002×8i4KJ,5K#..KM3#198509-198808

main90201-16010×8i1C,2C#..CM3#,4#198509-198808

main90201-21002×8i2YU,3YU..YM30,40198509-198808

13715VALVE, EXHAUST

main13715-24013×4i4KJ,5K#..KM3#198509-198808

main13715-64030×4i1C,2C..CM3#,41198509-198808

main13715-64040×4i2CT..CM30,40198509-198808

main13715-71010×4i2YU,3YU..YM30,40198509-198808

13741RETAINER, VALVE SPRING

main13741-24020×8i4KJ,5K#..KM3#198509-198808

main13741-43010×8i1C,2C#..CM3#,4#198509-198808

main13741-63010×8i2YU,3YU..YM30,40198509-198808

13741ALOCK, VALVE SPRING RETAINER

main90913-03005×16i4KJ,5K#..KM3#198509-198808

main90913-03014×16i1C,2C#..CM3#,4#; 2YU,3YU..YM30,40198509-198808

13751LIFTER, VALVE

main13750-13020×8i5K#..KM30,31,36198509-198808

main13750-71010×8i2YU,3YU..YM30,40198509-198808

main13751-22014×8i4KJ..KM35198509-198808

STD

main13751-64011×8i1C,2C#..CM3#,4#198509-198808

main13755-22014×8i4KJ..KM35198509-198808

O/S 0.05

13753SHIM, VALVE ADJUSTING

main13753-64010×8i1C,2C#..CM3#,4#198509-198808

main13753-64030×8i1C,2C#..CM3#,4#198509-198808

main13753-64050×8i1C,2C#..CM3#,4#198509-198808

main13753-64070×8i1C,2C#..CM3#,4#198509-198808

main13753-64090×8i1C,2C#..CM3#,4#198509-198808

main13753-64110×8i1C,2C#..CM3#,4#198509-198808

main13753-64130×8i1C,2C#..CM3#,4#198509-198808

main13753-64150×8i1C,2C#..CM3#,4#198509-198808

main13753-64170×8i1C,2C#..CM3#,4#198509-198808

main13753-64190×8i1C,2C#..CM3#,4#198509-198808

main13753-64210×8i1C,2C#..CM3#,4#198509-198808

main13753-64230×8i1C,2C#..CM3#,4#198509-198808

main13753-64250×8i1C,2C#..CM3#,4#198509-198808

main13753-64270×8i1C,2C#..CM3#,4#198509-198808

main13753-64290×8i1C,2C#..CM3#,4#198509-198808

main13753-64310×8i1C,2C#..CM3#,4#198509-198808

main13753-64330×8i1C,2C#..CM3#,4#198509-198808

main13753-64350×8i1C,2C#..CM3#,4#198509-198808

main13753-64370×8i1C,2C#..CM3#,4#198509-198808

main13753-64390×8i1C,2C#..CM3#,4#198509-198808

main13753-64410×8i1C,2C#..CM3#,4#198509-198808

main13753-64430×8i1C,2C#..CM3#,4#198509-198808

main13753-64450×8i1C,2C#..CM3#,4#198509-198808

main13753-64470×8i1C,2C#..CM3#,4#198509-198808

main13753-64490×8i1C,2C#..CM3#,4#198509-198808

13951SUPPORT, VALVE ROCKER, NO.1

main13952-24012×3i4KJ,5K#..KM3#198509-198808

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08028×6i4KJ,5K#..KM3#198509-198808

*8-1.25PX53-15

main91621-60840×10i1C,2C#..CM3#,4#198509-198808

9010510032

main90105-10032

9010512097

main90105-12097

9010906045

main90109-06045

9162161050

main91621-61050

26 parts on this diagram · 3 diagrams in section
