ENGINE OVERHAUL GASKET KIT

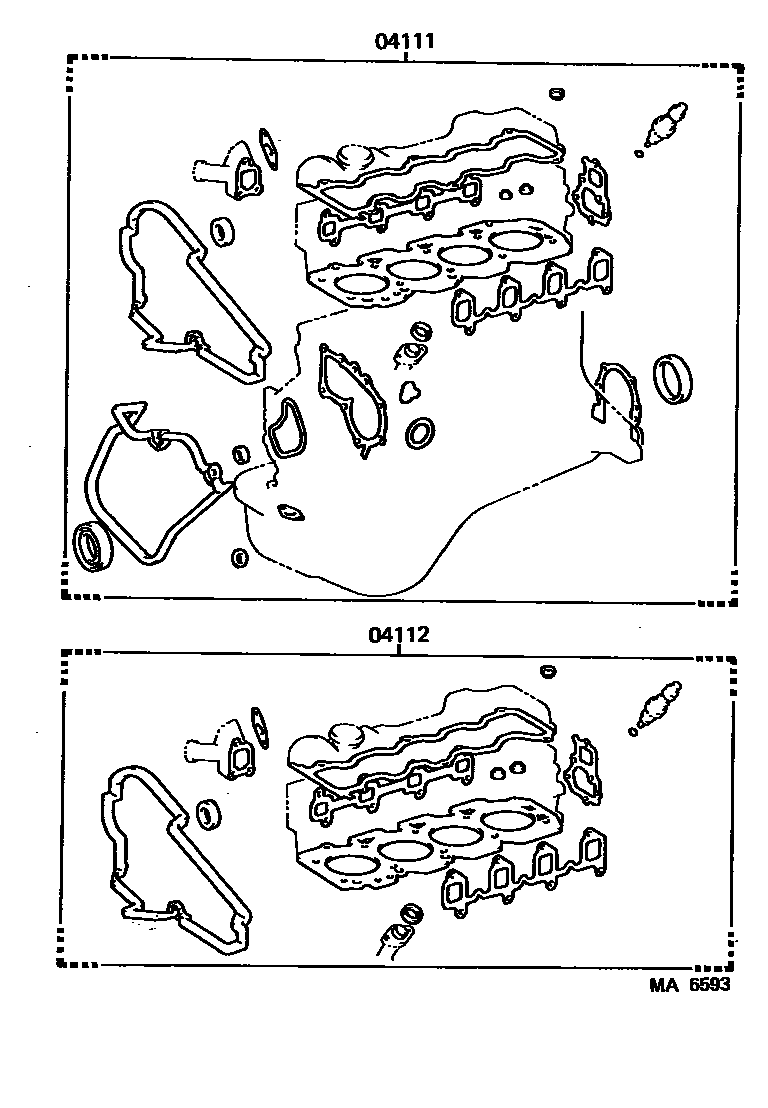

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-13033i198509-198808
sub04111-13035
main04111-13041i198509-198808
sub04111-13042
main04111-64042i198509-198608
sub04111-64043
main04111-64043i198608-198808
sub04111-64044
main04111-64070i198509-198608
sub04111-64071
main04111-64071i198608-198609
sub04111-64072
main04111-64072i198609-198808
sub04111-64073
main04111-64080i198509-198608
sub04111-64081
main04111-64081i198608-198609
sub04111-64082
main04111-64082i198609-198808
sub04111-64083
main04111-72011i198509-198704
sub04111-72012
main04111-72012i198704-198808
sub04111-72013
main04111-73021i198510-198704
sub04111-73022
main04111-73022i198704-198707
sub04111-73023
main04111-73023i198707-198808
sub04111-73024
04112GASKET KIT, ENGINE VALVE GRIND
main04112-13012i198509-198808
sub04112-13013
main04112-13020i198509-198808
sub04112-13021
main04112-64041i198509-198808
sub04112-64042
main04112-64070i198509-198609
sub04112-64071
main04112-64071i198609-198808
sub04112-64073
main04112-64080i198509-198609
sub04112-64081
main04112-64082i198609-198808
sub04112-64084
main04112-72011i198509-198704
sub04112-72012
main04112-72012i198704-198808
sub04112-72013
main04112-73021i198510-198704
sub04112-73022
main04112-73022i198704-198808
sub04112-73023

2 parts on this diagram · 4 diagrams in section
