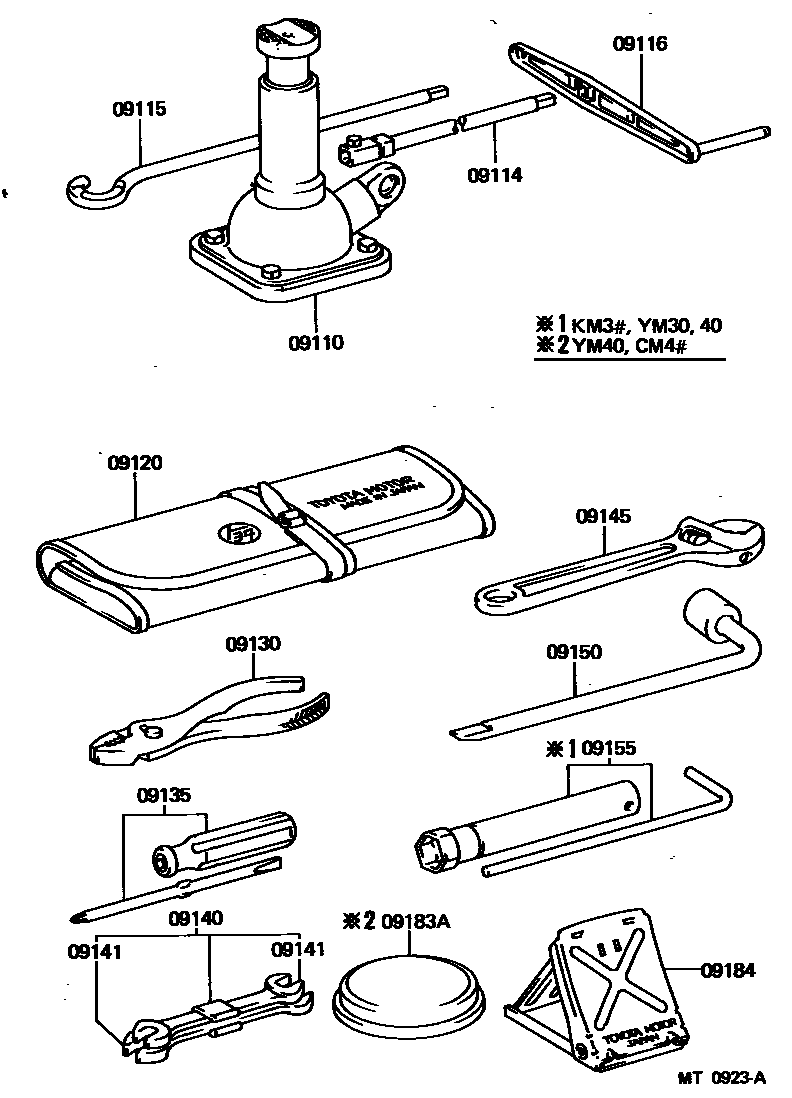

STANDARD TOOL

09110JACK ASSY

main09111-27050iKM35..06S;KM35..MRF..03S;CM3#,KM30,31,36,YM30198509-198808

main09111-35110iCM4#,YM40198510-198701

main09111-95701iCM4#,YM40; KM35..V1..03S198701-198808

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60040×2iCM3#,4#,KM3#,YM30,40198509-198603

main09114-60050×2iCM3#,4#,KM3#,YM30,40198603-198808

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030iCM3#,4#,KM3#,YM30,40198509-198808

09116LEVER, JACK HANDLE

main09116-35040iCM3#,4#,KM3#,YM30,40198509-198808

09120BAG, TOOL

main09120-26021iCM3#,KM3#,YM30198509-198808

main09120-28010iCM4#,YM40198510-198808

09130PLIERS

main99913-11500iCM3#,4#,KM3#,YM30,40198509-198808

09135DRIVER, SCREW

main99915-10700iCM3#,4#,KM3#,YM30,40198509-198808

09140SPANNER SET

main09140-27010iCM3#,4#,KM3#,YM30,40198509-198608

09141SPANNER

main99914-10810iCM3#,4#,KM3#,YM30,40198608-198808

main99914-11012iCM3#,4#,KM3#,YM30,40198509-198608

main99914-11417iCM3#,4#,KM3#,YM30,40198509-198608

09145WRENCH, MONKEY

main99911-10200iCM3#,4#,KM3#,YM30,40198509-198605

main99911-11200iCM3#,4#,KM3#,YM30,40198605-198608

09150WRENCH, HUB NUT BOX

main09150-35020iCM3#,4#,KM3#,YM30,40198509-198808

09155WRENCH, SPARK PLUG

main09155-26010iYM30,40198509-198808

main09155-44010iKM3#198509-198808

09183AREPLACER, WHEEL CAP

main09183-28010iCM4#,YM40198510-198808

09184STOPPER, WHEEL

main09184-00010iCM3#,4#,KM3#,YM30,40198509-198808

14 parts on this diagram · 1 diagram in section
