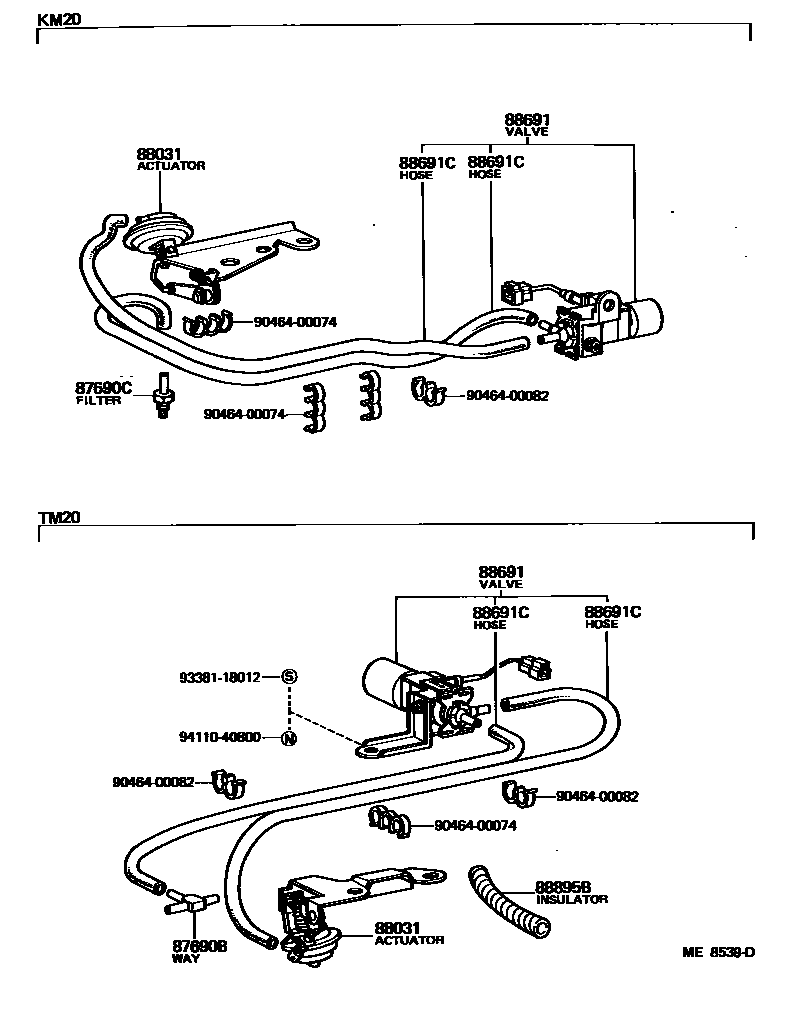

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0004 1 0005 1 0006 1 0007 1 0008 1

87690BWAY, 3

main90413-04005iTM20..MTM197910-198210

87690CFILTER ASSY, GAS

main90917-87002iKM20..DLX,SUP197910-198210

88031ACTUATOR SET, IDLE-UP

main21908-71010iYM21..05S,06S,08S,09S198210-198508

W/HEATER IDLE UP

main21908-71020iYM20,25198210

W/HEATER IDLE UP

main88031-12050iTM20; TM20..DLX,FXV,GXL,XL198101-198102

W/*ODAC; W/HEATER IDLE UP,COLD SPEC

main88031-12060iTM20; TM20..DLX,FXV,GXL,XL198102-198210

W/*ODAC; W/HEATER IDLE UP, COLD SPEC

main88031-12081iKM2#..DLX,SUP197911

main88031-12120iCM20..V4D;CM2#..TR,WG198210-198502

W/HEATER IDLE UP

main88031-27010iKM21..TR198306

W/TECS LPG ENGINE

main88031-28010iYM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL198210-198508

W/COOLER IDLE UP

main88031-87002iKM20..DLX,SUP197910-197911

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95710iKM20..DLX,SUP197910-198210

main88690-95711iTM20197910-198210

main88690-95712iCM2#198210-198508

W/COOLER IDLE UP

main88690-95713iYM21..FXV,GXL,MTP,S,XL198210-198211

W/PS

main88690-95714iYM21198210-198211

W/HEATER IDLE UP

main88690-95715iYM20198210-198211

main88690-95716iYM25198210

W/HEATER IDLE UP

main88690-95717iCM2#..TR198210-198502

W/HEATER IDLE UP

main88690-95718iKM21..DLX,SUP198210

main88690-95719iYM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL198210-198508

W/COOLER IDLE UP

main88690-95722iYM21..05S,06S,08S,09S198211-198508

W/HEATER IDLE UP

main88690-95723iYM21..CS7,FXV,GXL,MTP,S,SW,XL198211-198508

W/PS

main88690-95724iYM20198211-198508

W/HEATER IDLE UP

main88690-95725iYM20198211-198508

W/PS

main88691-12050iYM20,25198210

W/COOLER IDLE UP

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90445-08209iCM20..5F;CM20..V4D198210-198502

main90445-08227iCM2#..TR198210-198502

MARK=#0

main95411-10030iYM21..FXV198210-198508

main95411-10060iKM20..DLX,SUP; TM20197910-198210

main95411-10130iYM21; YM21..CS7,FXV,GXL,MTP,S,SW,XL198211-198508

main95411-10160iYM21; YM21..FXV,GXL,MTP,S,XL198210-198211

main95411-10330iYM20..05S198210-198508

*H,L=120,MARK=#3

main95411-10830iYM20198211-198508

MARK=#8

main95411-10860iYM20198210-198211

*H,L=420,MARK=#8

main95411-19930iCM2#..TR198210-198502

main95411-19960iKM20..DLX,SUP; TM20197910-198210

88895BINSULATOR, HOSE (FOR IDLE UP DEVICE)

main88895-95708×2iTM20198101-198210

9046400074

main90464-00074

9046400082

main90464-00082

9338118012

main93381-18012

9411040800

main94110-40800

10 parts on this diagram · 6 diagrams in section
