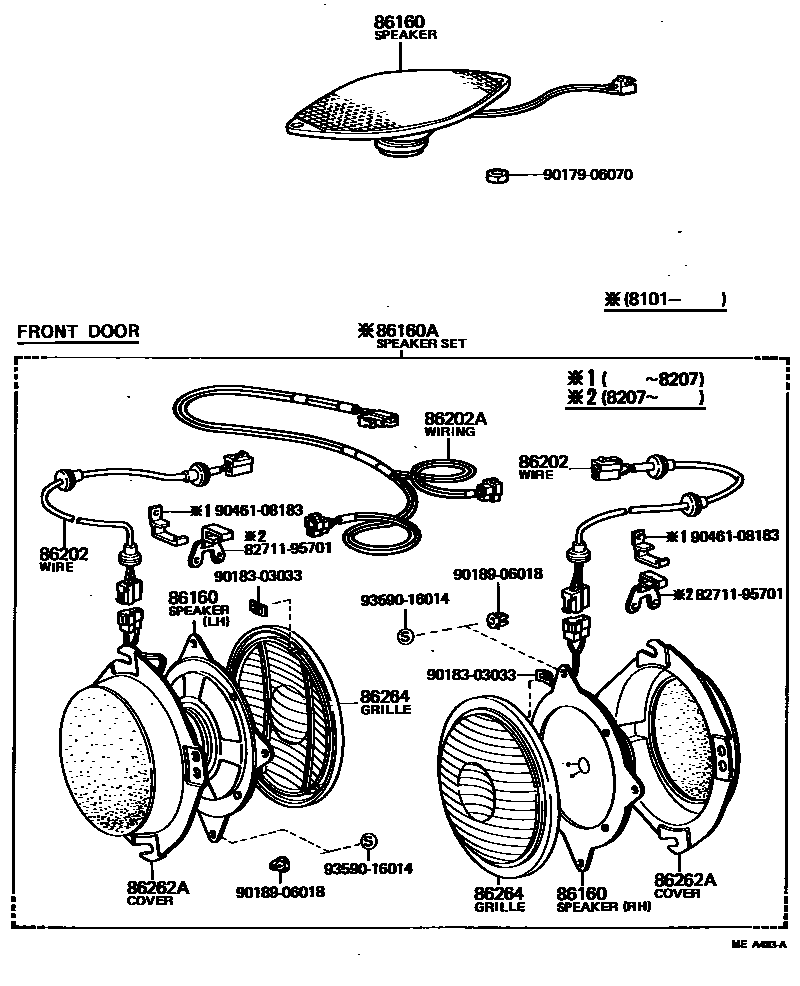

SPEAKER

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1

86160SPEAKER ASSY, FRONT NO.1

main86160-19565iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198210

W/AM RADIO

main86160-32070iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198210

RH,W/*19 OR TAPE PLAYER

main86160-95700iKM20,TM20..DLX,FXV,GXL,SUP,XL197910-198210

main86160-95710iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198210

LH,W/*19 OR TAPE PLAYER

main86170-95700iKM20,TM20..DLX,GXL,SUP,XL197910-198101

FR DOOR,RH

main86170-95702iKM20,TM20..DLX,FXV,GXL,SUP,XL198101-198210

FR DOOR,RH

main86180-95700iKM20,TM20..DLX,GXL,SUP,XL197910-198101

FR DOOR,LH

main86180-95702iKM20,TM20..DLX,FXV,GXL,SUP,XL198101-198210

FR DOOR,LH

86160ASPEAKER SET, FRONT

main86160-19655iYM21..S198210-198508

W/AM RADIO

main86160-29295iTM20..FXV,GXL198101-198210

main86160-29535iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198210

W/TAPE PLAYER

86202WIRE, SPEAKER, NO.1

main86203-95700×2iKM20,TM20..DLX,GXL,SUP,XL197910-198101

main86203-95704×2iKM20,TM20..DLX,FXV,GXL,SUP,XL198101-198210

main86238-95704iCM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL198210

86202AWIRE, SPEAKER, NO.2

main86202-95701iKM20,TM20..DLX,FXV,GXL,SUP,XL197910-198210

86262ACOVER, SPEAKER, FRONT

main86262-95700×2iKM20,TM20..DLX,FXV,GXL,SUP,XL197910-198210

86264GRILLE, SPEAKER, FRONT

main62529-95702-01×2iKM20,TM20..DLX,FXV,GXL,SUP,XL198101-198210

BLACK,BLACK

main62529-95702-06×2iKM20,TM20..DLX,FXV,GXL,SUP,XL198101-198210

BROWN,BROWN

main62529-95A00×2iKM20,TM20197910-198101

8271195701WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95701

9017906070

main90179-06070

9018303033

main90183-03033

9018906018

main90189-06018

9046108183

main90461-08183

9359016014

main93590-16014

12 parts on this diagram · 7 diagrams in section
