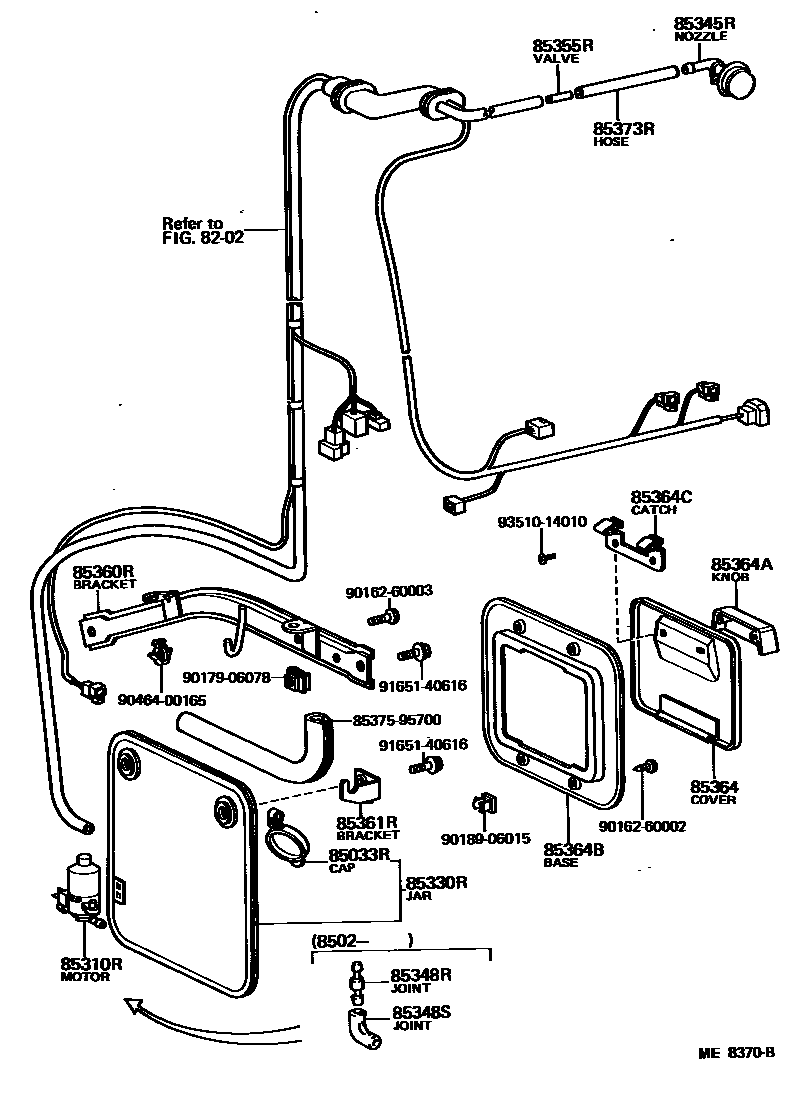

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-10080iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198502

main85332-20050iCM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)198502-198508

85310RMOTOR ASSY, REAR WASHER

main85310-10070iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198502

main85310-22080iCM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)198502-198508

85330RJAR ASSY, REAR WASHER

main85330-95701iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198502

main85331-95702iCM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)198502-198508

85345RNOZZLE, REAR WASHER

main85035-95700iCM20,KM2#,TM20,YM20,21..(V,WG)..(DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198312

main85035-95710iCM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)198312-198508

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201iCM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)198502-198508

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20070iCM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)198502-198508

85355RVALVE, REAR WASHER HOSE

main85031-30010iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198508

85360RBRACKET ASSY, REAR WASHER

main85307-95700iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198508

85361RHOLDER, REAR WASHER

main85373-95700iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198508

85364COVER, REAR WASHER JAR

main85306-95700-01iKM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)198101-198210

BLACK,BLACK

main85306-95700-02iYM20..03S198210-198508

TERRA COTTA,RED/MAROON

main85306-95700-04iCM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL198210-198508

BLUE GRAY,BLUE

main85306-95700-05iYM20..VSG;CM20,KM21..V..(DLX,SUP)198210-198508

BEIGE,BEIGE

main85306-95700-06iKM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)198010-198210

BROWN,BROWN

main85306-95700-11iYM21..S198302-198508

BLACK,BLACK

main85306-95700-16iKM20..V4D..SUP..WT198011-198011

REDDISH BROWN,BROWN

main85306-95700-26iCM20,YM21..WG198210-198508

BROWN,BROWN

85364AKNOB, REAR WASHER JAR COVER

main55521-95260iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198508

85364BBASE, REAR WASHER JAR COVER

main85366-95700-01iTM20..HRF..4H..GXL198010-198011

BLACK SATELLITE 80,BLACK

main85366-95700-02iYM20..03S198210-198508

TERRA COTTA,RED/MAROON

main85366-95700-04iCM20,YM21..CS7,FXV,GXL,MTP,S,SW,XL198210-198508

BLUE GRAY,BLUE

main85366-95700-05iYM20..VSG;CM20,KM21..V..(DLX,SUP)198210-198508

BEIGE,BEIGE

main85366-95700-06iKM20,TM20..(V,WG)..(DLX,GXL,SUP,XL)197910-198508

BROWN,BROWN

main85366-95700-11iYM21..S198302-198508

BLACK,BLACK

main85366-95700-16iKM20..V4D..SUP..WT198011-198011

REDDISH BROWN,BROWN

main85366-95700-26iCM20,YM21..WG198210-198508

BROWN,BROWN

85364CCATCH, REAR WASHER JAR COVER

main85374-95700iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198508

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iCM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)197910-198508

8537595700HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-95700

9016260002

main90162-60002

9016260003

main90162-60003

9017906078

main90179-06078

9018906015

main90189-06015

9046400165

main90464-00165

9165140616

main91651-40616

9351014010

main93510-14010

23 parts on this diagram · 1 diagram in section
