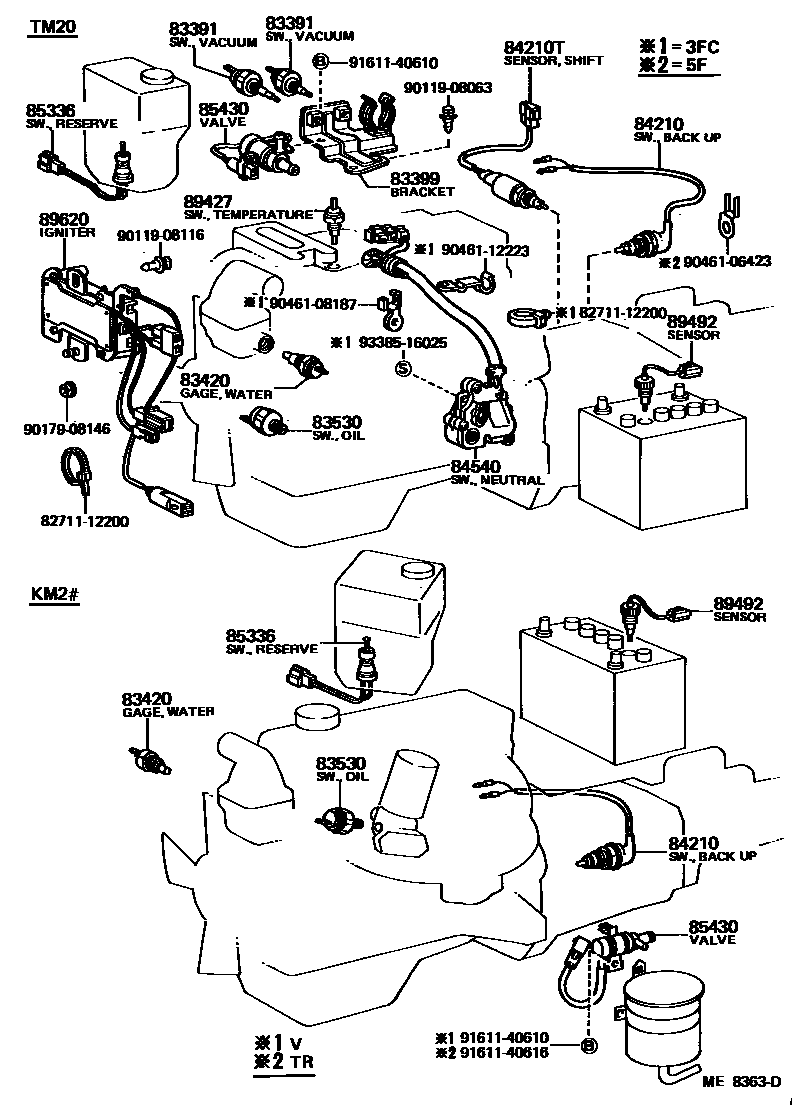

SWITCH & RELAY & COMPUTER
83391SWITCH, VACUUM
MARK=400M,EGR
MARK=400B,FUEL CUT
MARK=400B,FUEL CUT
FUEL HEATER
MARK=85M,EGR
MARK=300M,EGR
MARK=330B,FUEL CUT
MARK=85M,EGR
83399BRACKET, VACUUM SWITCH
83420GAGE ASSY, WATER TEMPERATURE SENDER
DENSO
YAZAKI
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84210TSENSOR ASSY, SHIFT POINT
84540SWITCH ASSY, NEUTRAL START
85336SWITCH ASSY, RESERVE TANK LEVEL WARNING
89427SWITCH, TEMPERATURE DETECT
89492SENSOR, ELECTROLYTE LEVEL
89620IGNITER ASSY
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9011908063
main90119-08063
9011908116
main90119-08116
9017908146
main90179-08146
9046106423
main90461-06423
9046108187
main90461-08187
9046112223
main90461-12223
9161140610
main91611-40610
9161140616
main91611-40616
9338516025
main93385-16025
22 parts on this diagram · 10 diagrams in section
