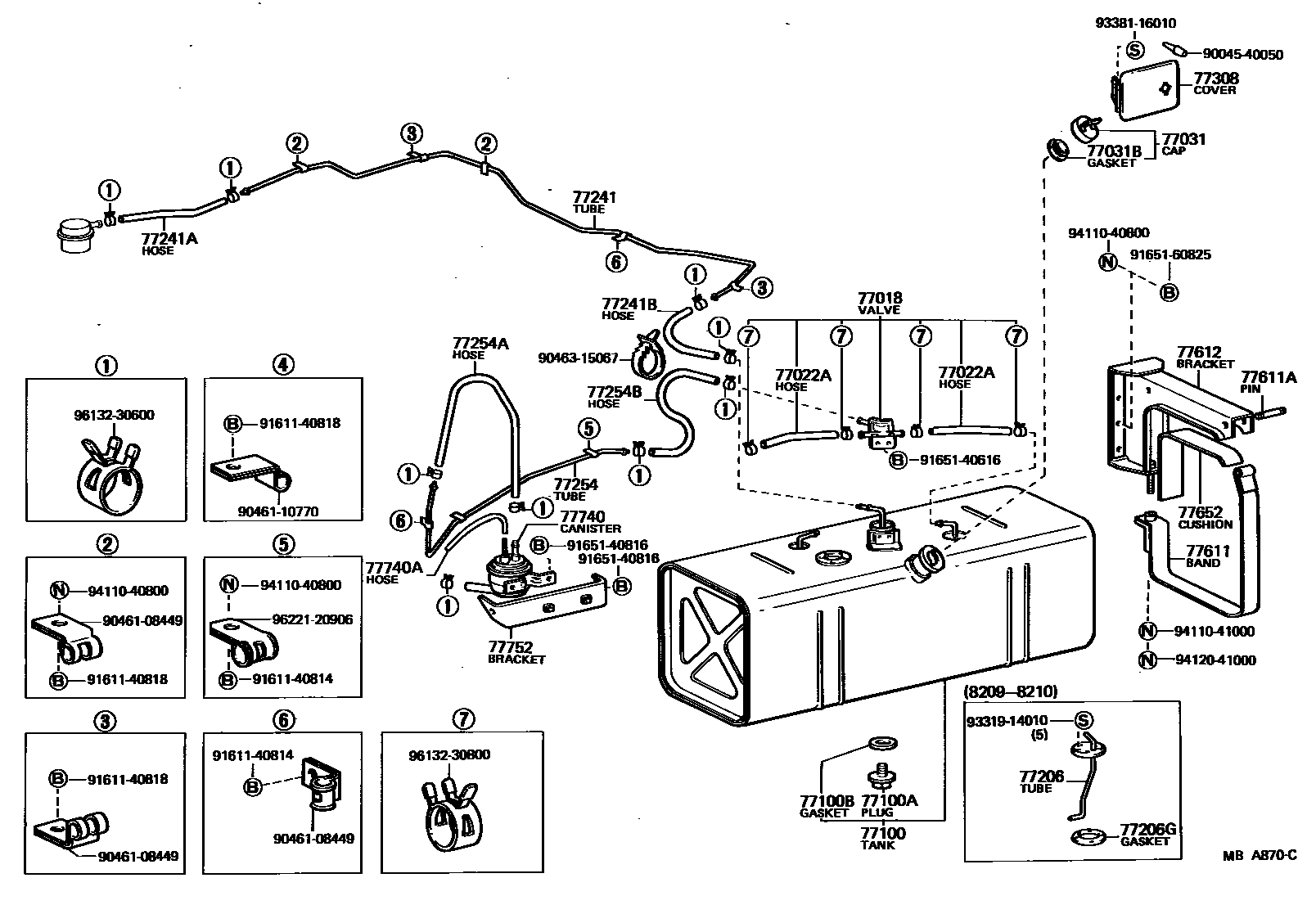

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-27010iCM2#,KM2#,YM25..TR197910-198609

main77018-27020iCM20..V,WG198210-198508

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77271-28011iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-27070×2iCM20,KM2#,TM20,YM20,21..(V,WG)..ST198205-198508

L=800

main77259-27080iKM2#,TM20..V,WG197910-198508

L=600

main77259-27100×2iCM20,KM2#,YM20..HRF..WT198205-198508

L=780

main77259-27110iYM20,21198210-198508

L=600

main95332-08020×2iCM2#,KM2#,YM25..TR197910-198609

77031CAP ASSY, FUEL TANK

main77310-12100iKM21,YM20,21..V,WG198210-198508

main77310-14070iKM20,TM20..V,WG197910-198210

main77310-35061iCM20..V,WG198210-198508

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iKM2#..T1..CBU197910-198609

77100TANK ASSY, FUEL

main77001-27040iKM20..TR197910-198209

main77001-27041iCM2#,KM21,YM25..TR198209-198609

main77001-27050iKM20,TM20..(V,WG)..ST197910-198210

main77001-27051iKM21,YM20,21..(V,WG)..ST198210-198501

main77001-27060iKM20..HRF..WT197910-198210

main77001-27061iKM21,YM20..HRF..WT198210-198508

main77001-27080iCM20..(V,WG)..ST198210-198508

main77001-27090iCM20..06S..WT198210-198508

main77001-27180iKM21,YM20,21..(V,WG)..ST198501-198508

77100APLUG(FOR FUEL TANK)

main90105-12018iKM20..TR197910-198210

main90341-20003iCM20..(V,WG)..ST; KM21,YM20,21..(V,WG)..ST198210-198508

main90341-24036iKM20,TM20..V,WG197910-198210

77100BGASKET(FOR FUEL TANK)

main90430-12245iKM20..TR197910-198210

main90430-20006iCM20..(V,WG)..ST; KM21,YM20,21..(V,WG)..ST198210-198508

main90430-24047iKM20,TM20..V,WG197910-198210

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-27010iCM20..(V,WG)..ST198210-198508

main77017-27020iCM20..06S..WT198210-198412

main77017-27021iCM20..06S..WT198412-198508

main77017-27050iKM21,YM20,21..(V,WG)..ST198210-198508

main77017-27060iKM21,YM20..HRF..WT198210-198609

main77017-27070iKM21,YM25..TR198210-198609

main77017-27080iCM2#..TR198210-198609

main77017-27090iKM20..TR198209-198210

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iKM20..TR198209-198210

77241TUBE, FUEL MAIN, NO.1

main77024-27010iCM2#..TR198210-198609

main77251-27030iKM20..TR197910-198210

main77251-27031iKM21,YM25..TR198210-198609

main77251-27040iKM20..V..ST197910-198210

main77251-27041iKM21..V5D..ST; YM21;KM21,YM20..V4D..ST198210-198508

main77251-27050iKM20..HRF..WT197910-198210

main77251-27051iKM21..VSG..WT198210-198508

main77251-27060iTM20197910-198101

main77251-27061iTM20198101-198210

main77251-27070iYM20..WT198210-198508

main77251-27090iCM20..06S..WT198210-198211

main77251-27091iCM20..06S..WT198211-198508

main77251-27100iCM20..(V,WG)..ST198210-198508

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iYM20,21198210-198508

main95332-06030iKM20..TR; KM20..V..ST197910-198210

main95332-06040iKM20..06S..WT197910-198001

main95332-08020iCM20..V,WG198210-198508

main95332-08040iCM2#..TR198210-198609

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iKM21,YM25..T1,T2; KM21..T3198210-198609

main95332-06030iKM21,YM20,21..(V,WG)..ST198210-198508

main95332-06040iKM20..HRF..WT198001-198210

main95332-06060iKM20..V..ST; TM20197910-198210

main95332-08030iCM2#..03S..WT; CM20..IV; CM20..TS..ST198210-198609

77254TUBE, FUEL EMISSION, NO.1

main77244-27010iCM2#..TR198210-198609

main77263-27010iKM20..TR197910-198210

main77263-27012iKM21,YM25..TR198210-198609

main77263-27020iKM20..V..ST197910-198210

main77263-27021iKM21,YM20,21..(V,WG)..ST198210-198508

main77263-27030iKM20..HRF..WT197910-198210

main77263-27031iKM21,YM20..HRF..WT198210-198508

main77263-27040iTM20197910-198101

main77263-27041iTM20198101-198210

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77279-27010iKM21,YM20,21..V,WG198210-198508

L=420

main90445-12042iKM2#,YM25..TR197912-198609

L=520

main95332-06030iKM20,TM20..V,WG197910-198210

main95332-06060iKM20..TR197910-197912

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main77209-27010iKM21,YM25198601-198609

main95332-06030iCM2#..TR198210-198609

main95332-06040iKM2#,YM25..TR197910-198601

77308COVER SUB-ASSY, FUEL INLET BOX

main77310-95700iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

main77350-87401iKM2#..T1197910-198609

77611BAND, FUEL TANK

main77601-27010×2iKM20..TR197910-198210

main77601-27011×2iCM2#,KM21,YM25..TR198210-198609

main77601-27020×2iCM20,KM2#,TM20,YM20,21..(V,WG)..ST197910-198508

main77601-27030×2iKM20..HRF..WT197910-198210

main77601-27031×2iCM20,KM21,YM20..HRF..WT198210-198508

77611APIN (FOR FUEL TANK BAND)

main77629-25010×2iCM2#,KM2#,TM20,YM2#197910-198609

77612BRACKET SUB-ASSY, FUEL TANK

main77501-27010×2iCM20..IV198210-198609

SINGLE JUSTLOW

main77501-27020×2iCM20,KM2#..T3197910-198609

77652CUSHION, FUEL TANK, NO.1

main77651-27010×2iCM2#,KM2#,YM25..TR197910-198211

main77651-27020×2iCM20,KM2#,TM20,YM20,21..(V,WG)..ST197910-198211

main77651-27040×2iCM20,KM2#,YM20..HRF..WT197910-198211

main77651-27080×2iCM20,KM21,YM20..HRF..WT198211-198508

main77651-27100×2iCM20,KM21,YM20,21..(V,WG)..ST198211-198508

main77651-27110×2iCM2#,KM21,YM25..TR198211-198609

77740CANISTER ASSY, CHARCOAL

main77740-27020iKM20..TR197910-198210

main77740-27030iKM20..V197910-198210

main77740-27031iKM21..V198210-198508

main77740-27050iTM20197910-198210

main77740-27070iYM20,21198210-198508

main77740-27090iYM25198210-198609

main77740-27140iKM21..TR198210-198609

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-10630iYM20,21198210-198508

main95411-10660iYM25198210-198609

main95411-19930iKM21..V198210-198508

main95411-19960iKM20..TR; KM20..V197910-198210

main95411-39960iTM20197910-198210

*H,L=330

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-27010iKM20..TR197910-198210

9004540050

main90045-40050

9046108449

main90461-08449

9046110770

main90461-10770

9046315067

main90463-15067

9161140814

main91611-40814

9161140818

main91611-40818

9165140616

main91651-40616

9165140816

main91651-40816

9165160825

main91651-60825

9331914010

main93319-14010

9338116010

main93381-16010

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9613230600

main96132-30600

9613230800

main96132-30800

9622120906

main96221-20906

41 parts on this diagram · 10 diagrams in section
