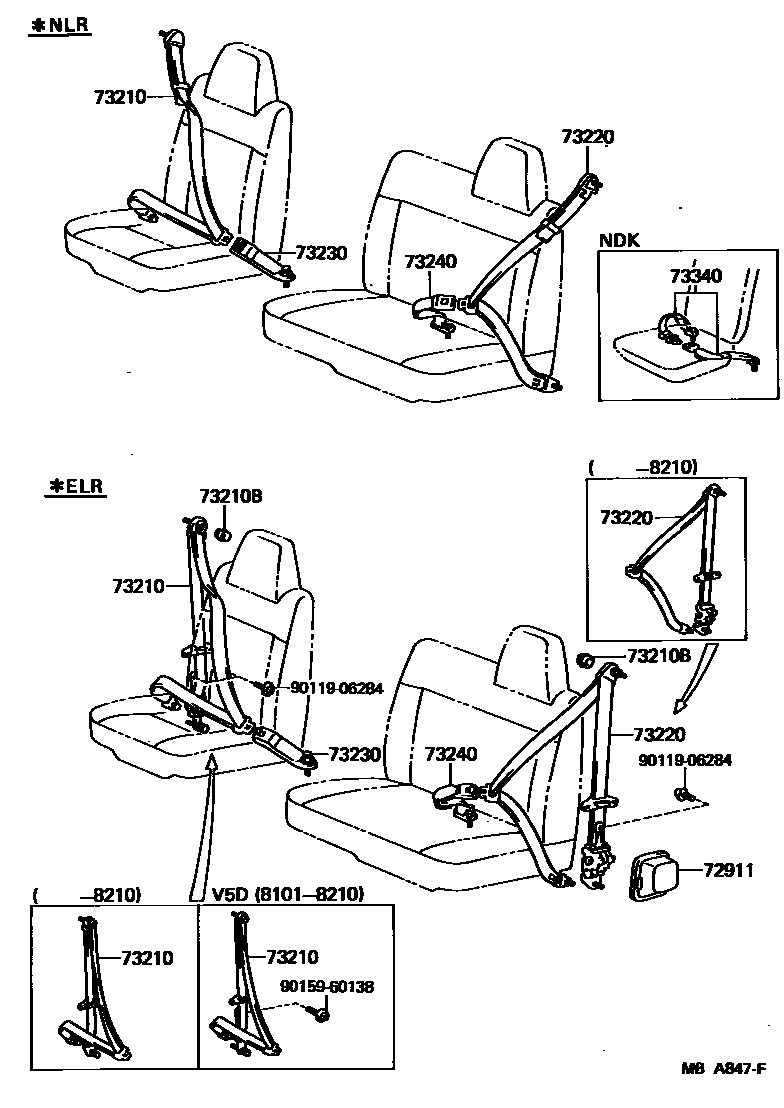

SEAT BELT

0001 1 0002 1 0003 1

72911COVER, SEAT BELT RETRACTOR

main61347-95705iTM20..4H198101-198210

main73207-87401×2iCM2#,KM21,YM25..TR198101-198609

73210BELT ASSY, FRONT SEAT OUTER, RH

main72801-87403iKM20..TR198101-198210

W/*ELR

main72801-95700iKM20197910-198101

main72801-95704iTM20..DLX,STD197910-198101

W/*ELR

main72801-95705iTM20..GXL,XL197910-198101

W/*ELR

main72801-95706iTM20197910-198101

main73210-95700-01iTM20..XL198101-198210

BLACK,BLACK

main73210-95700-06iTM20..DLX,STD,XL198101-198210

BROWN,BROWN

main73210-95701iTM20..4H;KM20..V4D198101-198210

W/*ELR

main73210-95702iKM20..V5D198101-198210

W/*ELR

main73210-95703-01iTM20..FXV,GXL,XL198101-198210

W/*ELR,BLACK,BLACK

main73210-95703-06iTM20..FXV,GXL,XL198101-198210

W/*ELR,BROWN,BROWN

main73210-95705iKM20..V4D..SUP..WT198011-198011

SATELLITE 80

main73210-95706iTM20..HRF..4F..GXL198010-198011

SATELLITE 80

main73210-95707iKM20198101-198210

main73210-95709iCM20,KM21,YM20..V5D198210-198508

W/*ELR

main73210-95710-05iCM20,KM21,YM20..V4D198210-198508

W/*ELR,BEIGE,BEIGE

main73210-95710-06iCM20,YM21..WG..(DLX,STD,SW)198210-198508

BROWN,BROWN

main73210-95713-01iYM21..S198302-198508

BLACK,BLACK

main73210-95713-04iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BLUE GRAY,BLUE

main73210-95713-06iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BROWN,BROWN

main73210-95714-05iCM2#,KM21,YM20,25..TR,V198210-198508

BEIGE,BEIGE

main73210-95714-06iCM20,YM21..SW198308-198508

W/*NLR,BROWN,BROWN

main73210-95717iCM2#,KM21,YM25..TR198210-198609

W/*ELR

main73210-95718iYM21..HRF..06S198402-198403

SUPER SW

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-06×2iKM20,TM20198101-198210

BROWN,BROWN

main73178-12010-11×2iTM20197910-198210

BLACK,BLACK

main73178-12010-21×2iYM21..S198302-198508

BLACK,BLACK

main73178-12010-24×2iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BLUE GRAY,BLUE

main73178-12010-55×2iCM20,KM21,YM20..V198210-198508

BEIGE,BEIGE

main73178-12010-56×2iCM20,YM21..WG198210-198508

BROWN,BROWN

73220BELT ASSY, FRONT SEAT OUTER, LH

main72801-87403iKM20..TR198101-198210

W/*ELR

main72801-95700iKM20197910-198101

main72801-95704iTM20..DLX,STD197910-198101

W/*ELR

main72801-95705iTM20..GXL,XL197910-198101

W/*ELR

main72801-95706iTM20197910-198101

main73210-95700-01iTM20..XL198101-198210

BLACK,BLACK

main73210-95700-06iTM20..DLX,STD,XL198101-198210

BROWN,BROWN

main73210-95701iKM20..V198101-198210

W/*ELR

main73210-95705iKM20..V4D..SUP..WT198011-198011

SATELLITE 80

main73210-95706iTM20..HRF..4F..GXL198010-198011

SATELLITE 80

main73210-95707iKM20198101-198210

main73210-95714-05iCM2#,KM21,YM20,25..TR,V198210-198508

BEIGE,BEIGE

main73210-95714-06iCM20,YM21..SW198308-198508

W/*NLR,BROWN,BROWN

main73210-95718iYM21..HRF..06S198402-198403

SUPER SW

main73220-95700iTM20..4H198101-198210

W/*ELR

main73220-95701-01iTM20..FXV,GXL,XL198101-198210

W/*ELR,BLACK,BLACK

main73220-95701-06iTM20..FXV,GXL,XL198101-198210

W/*ELR,BROWN,BROWN

main73220-95703-05iCM20,KM21,YM20..V198210-198508

W/*ELR,BEIGE,BEIGE

main73220-95703-06iCM20,YM21..WG..(DLX,STD,SW)198210-198508

BROWN,BROWN

main73220-95706-01iYM21..S198302-198508

BLACK,BLACK

main73220-95706-04iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BLUE GRAY,BLUE

main73220-95706-06iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BROWN,BROWN

main73220-95707iCM2#,KM21,YM25..TR198210-198609

W/*ELR

73230BELT ASSY, FRONT SEAT INNER, RH

main72803-95700iKM20197910-198101

main72803-95704iTM20197910-198101

main73230-95700-01iTM20..FXV,GXL,XL198101-198210

BLACK,BLACK

main73230-95700-06iTM20198101-198210

BROWN,BROWN

main73230-95701iKM20..V198101-198210

W/*ELR

main73230-95702iKM20..V4D..SUP..WT198011-198011

SATELLITE 80

main73230-95703iTM20..HRF..4F..GXL198010-198011

SATELLITE 80

main73230-95704iKM20198101-198210

main73230-95706-01iYM21..S198302-198508

BLACK,BLACK

main73230-95706-04iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

BLUE GRAY,BLUE

main73230-95706-05iCM20,KM21,YM20..V198210-198508

W/*ELR,BEIGE,BEIGE

main73230-95706-06iCM20,YM21..WG198210-198508

BROWN,BROWN

main73230-95707iYM21..HRF..06S198402-198403

SUPER SW

main73230-95709-05iCM2#,KM21,YM20,25..TR,V198210-198609

BEIGE,BEIGE

main73230-95709-06iCM20,YM21..SW198308-198508

W/*NLR,BROWN,BROWN

73240BELT ASSY, FRONT SEAT INNER, LH

main72804-95700iKM20197910-198101

main72804-95705iTM20197910-198101

main73240-95700-01iTM20..FXV,GXL,XL198101-198210

BLACK,BLACK

main73240-95700-06iTM20198101-198210

BROWN,BROWN

main73240-95701iKM20..V198101-198210

W/*ELR

main73240-95702iKM20..V4D..SUP..WT198011-198011

SATELLITE 80

main73240-95703iTM20..HRF..4F..GXL198010-198011

SATELLITE 80

main73240-95704iKM20198101-198210

main73240-95706iKM21..V198210-198508

W/*ELR

main73240-95708iCM20..V198210-198508

W/*ELR

main73240-95710-01iYM21..S198302-198508

BLACK,BLACK

main73240-95710-04iYM21..07S,08S198210-198508

BLUE GRAY,BLUE

main73240-95710-05iYM20..05S198210-198508

W/*ELR,BEIGE,BEIGE

main73240-95710-06iYM21..05S,06S,07S,08S198210-198508

BROWN,BROWN

main73240-95711iKM21..V198210-198508

main73240-95712iCM20..V198210-198508

main73240-95713-06iCM20..SW198405-198508

BROWN,BROWN

main73240-95714-04iCM20..08S198210-198508

BLUE GRAY,BLUE

main73240-95714-06iCM20..SW198405-198508

W/*ELR,BROWN,BROWN

main73240-95718-04iYM21..XL198210-198508

BLUE GRAY,BLUE

main73240-95718-05iYM20..5H198210-198508

W/*ELR,BEIGE,BEIGE

main73240-95718-06iYM21..5H198210-198508

BROWN,BROWN

main73240-95721-05iYM20..5H198210-198508

BEIGE,BEIGE

main73240-95721-06iYM21..06S198308-198508

W/*NLR,BROWN,BROWN

main73240-95722iCM2#..TR198210-198609

main73240-95723iYM21..HRF..06S198402-198403

SUPER SW

main73240-95724-05iYM20..05S198210-198508

BEIGE,BEIGE

main73240-95724-06iYM21..05S198308-198508

W/*NLR,BROWN,BROWN

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main72910-95700iTM20197910-198101

main72910-95701-01iTM20..GXL,XL198101-198201

BLACK,BLACK

main72910-95701-06iTM20..(4F,4H)..(DLX,STD,XL)198201-198210

BROWN,BROWN

main72910-95702-01iTM20..FXV198201-198210

BLACK,BLACK

main72910-95702-06iTM20..FXV198201-198210

BROWN,BROWN

main72910-95703iTM20..HRF..4F..GXL198010-198011

SATELLITE 80

main72910-95708-04iCM20,YM21..SRF..XL198210-198508

BLUE GRAY,BLUE

main72910-95708-06iCM20,YM21..SRF..XL198210-198508

BROWN,BROWN

main72910-95709-04iYM21..FXV198210-198508

BLUE GRAY,BLUE

main72910-95709-06iYM21..FXV198210-198508

BROWN,BROWN

main72910-95710iYM21..SW198308-198508

main72910-95712iYM21..HRF..06S198402-198403

SUPER SW

main73330-95701iKM21..V4D..SRF..VSG..03S..DLX198210-198508

NTT

main73330-95702iCM20..V4D..SRF..VSG..03S198406-198508

NTT

9011906284

main90119-06284

9015960138

main90159-60138

9 parts on this diagram · 3 diagrams in section
