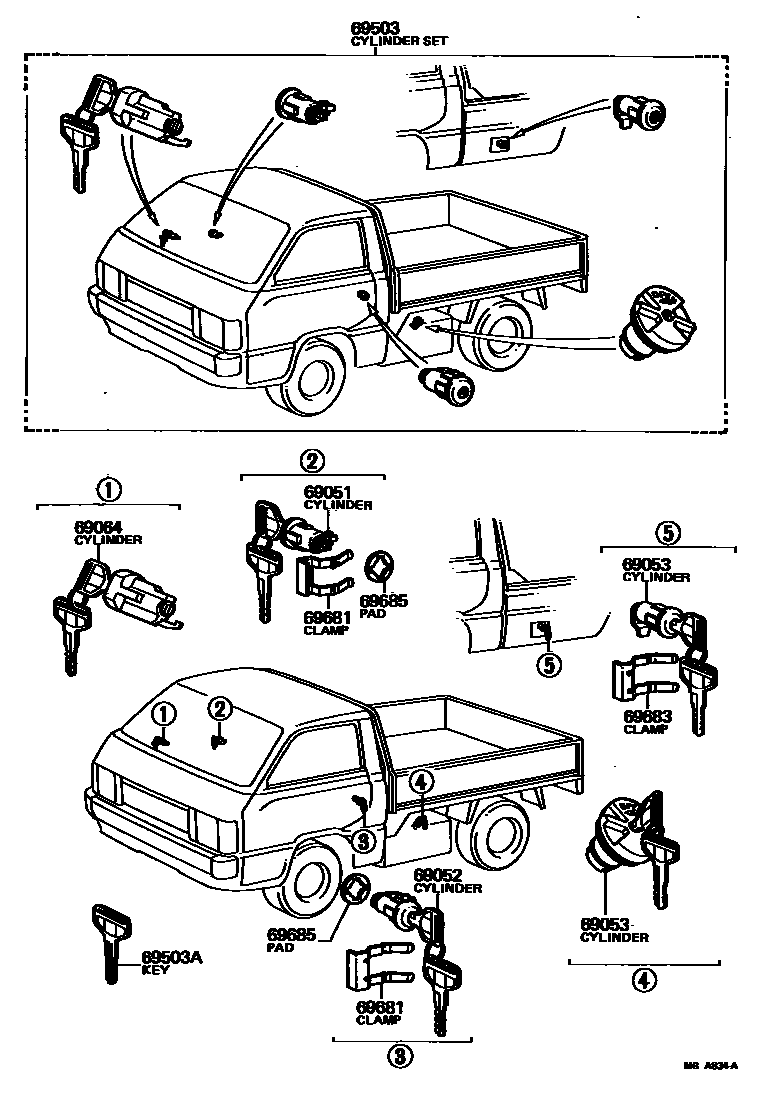

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95012iCM2#,KM2#,TM20,YM2#197910-198609

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95012iCM2#,KM2#,TM20,YM2#197910-198609

69053CYLINDER & KEY SET, FUEL INLET LOCK

main69058-19065iKM20,TM20..HRF,SRF197910-198508

sub69058-37070

main69058-87403iKM20..IV;KM20..(T2,T3)..CBU197910-198210

main69058-87404iKM2#..T1..CBU197910-198609

main69058-89102iCM2#..TR198210-198609

sub69058-25010

main69058-95400iKM21..ST..IV;KM21,YM25..T2,T3198210-198609

sub69058-60071

main69058-95701iKM20,TM20..HRF,SRF198008-198105

sub69058-19065

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14010iCM20,TM20,YM21..FXV,GXL198105-198508

W/PS

sub69057-22020

main69057-20020iTM20..FXV198101-198105

sub69057-90A05

main69057-95701iCM2#,KM2#,TM20,YM2#..CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL197910-198609

69503CYLINDER SET, LOCK

main69005-87403iKM20..T1..CBU197910-198210

main69005-87404iKM20..IV;KM20..(T2,T3)..CBU197910-198210

sub69503-95735

main69503-95706iCM20,KM2#..V4D..(DLX,STD);CM20,TM20,YM21..WG..(CS7,DLX,MTP,S,STD,SW,XL)197910-198508

sub69503-95710

main69503-95706iTM20..HRF..5F..GXL198109-198110

EVENT

sub69503-95710

main69503-95706iTM20..HRF..MTM..GXL198203-198210

GXL SUPER

sub69503-95710

main69503-95707iKM21..V4D..SUP197910-198508

W/MAGNET LOCK

main69503-95708iCM20,KM2#..V5D..DLX197910-198508

sub69503-95712

main69503-95709iKM21..V5D..SUP198210-198508

main69503-95709iKM20..V5D197910-198210

W/MAGNET LOCK

main69503-95714iTM20..FXV198101-198210

main69503-95721iYM20..V4D198210-198508

COOLING VAN

sub69503-95736

main69503-95722iYM20..V5D198210-198508

main69503-95723-04iCM20,YM21..GXL198210-198508

BLUE GRAY,BLUE

main69503-95723-06iCM20,YM21..GXL198210-198508

BROWN,BROWN

main69503-95724-04iCM20,YM21..FXV,GXL198210-198508

W/PS,BLUE GRAY,BLUE

main69503-95724-06iCM20,YM21..FXV,GXL198210-198508

W/PS,BROWN,BROWN

main69503-95734iKM21..T1..CBU198210-198609

main69503-95735iKM21..ST..IV;KM21,YM25..T2,T3198210-198609

main69503-95737iCM2#..TR198210-198609

69503AKEY, BLANK

main90999-00066iCM2#,KM2#,TM20,YM2#197910-198609

sub90999-00085

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iKM20..TR197910-198210

main69681-95402iCM20,KM21,YM20,21..V,WG197910-198609

69683CLAMP, FUEL LOCK CYLINDER

main69681-20040iKM21..T1197910-198609

main69681-95402iCM2#,KM21,YM25..T2,T3197910-198609

main69681-95A00iCM20,KM2#,TM20,YM20,21..V,WG198007-198508

69685PAD, LOCK CYLINDER

main69513-12020iCM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D198206-198508

DOOR

main69513-12020iCM2#,KM2#,YM25..TR197910-198609

main69513-95700iCM20,KM2#,TM20,YM20,21..V,WG198206-198508

FUEL

9 parts on this diagram · 2 diagrams in section
