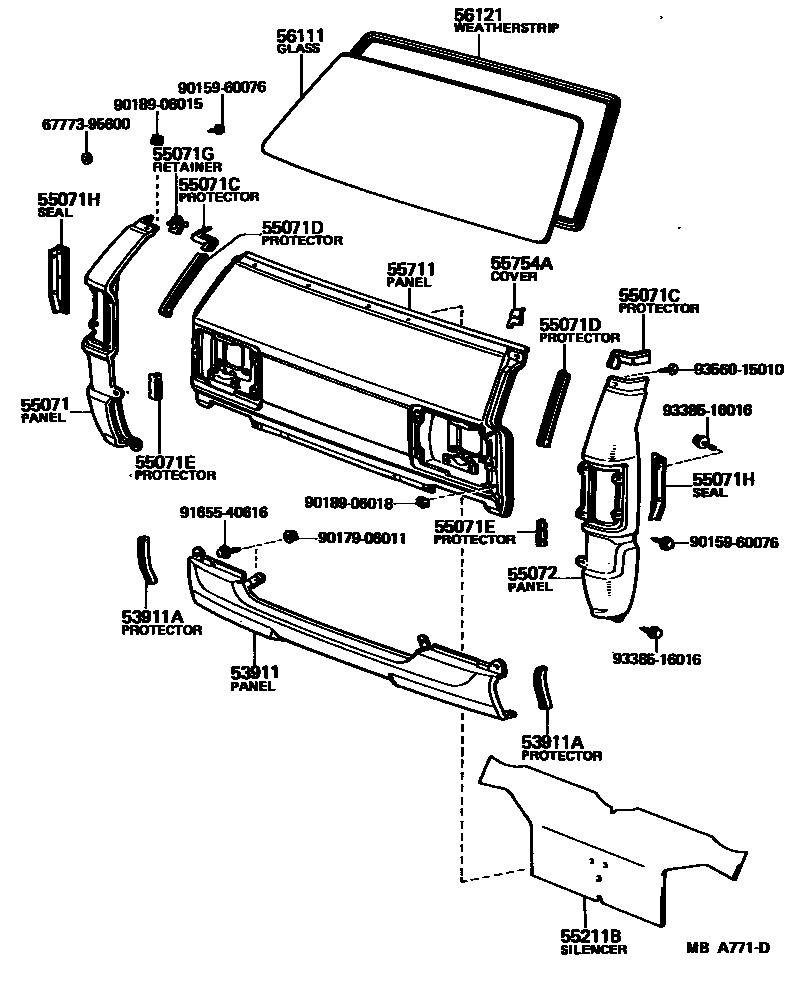

FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

53911PANEL, FRONT VALANCE

main53901-95700iYM21..S198210-198508

W/AIR CUT FLAP

main53901-95701iCM2#,KM21,YM2#198210-198609

main53911-87401iKM20..TR197910-198210

main53911-95700iKM20,TM20..V,WG197910-198210

53911APROTECTOR, FRONT VALANCE PANEL

main53915-95700×2iKM20,TM20197910-198210

main53915-95701×2iCM2#,KM21,YM2#198210-198609

main53915-95703iYM21..S198210-198508

RH,W/AIR CUT FLAP

main53916-95701iYM21..S198210-198508

LH,W/AIR CUT FLAP

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95700iKM20198011-198210

main53801-95702iTM20198011-198210

main53801-95703iCM2#,KM21,YM2#198210-198609

55071CPROTECTOR, FRONT SIDE PANEL, NO.1

main53821-95700×2iKM20,TM20197910-198210

main53821-95701×2iCM2#,KM21,YM2#198210-198609

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95700iKM20,TM20197910-198210

RH

main53823-95701iCM2#,KM21,YM2#198210-198609

RH

main53824-95700iKM20,TM20197910-198210

LH

main53824-95701iCM2#,KM21,YM2#198210-198609

LH

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main53828-95700×2iKM20,TM20197910-198210

main53828-95701×2iCM2#,KM21,YM20,21198210-198609

55071GRETAINER, FRONT SIDE PANEL SET

main53827-95700×2iKM20,TM20197910-198101

main53827-95701iCM2#,KM21,YM2#198210-198609

LH

55071HSEAL SUB-ASSY, FRONT PILLAR TO FRONT SIDE

main53805-95700iTM20198011-198210

RH

main53806-95700iTM20198011-198210

LH

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95700iKM20..TR198101-198210

main53802-95702iKM20..V198101-198210

main53802-95703iTM20198011-198101

main53802-95704iTM20198101-198210

main53802-95705iCM2#,KM21,YM2#198210-198609

55211BSILENCER, FRONT PANEL

main55211-95700iCM20,TM20,YM21..CS7,FXV,GXL,MTP,XL198101-198508

55711PANEL, COWL TOP, OUTER

main55701-87410iKM20..TR198101-198106

main55701-87411iKM20..TR198106-198210

main55701-95706iKM20,TM20197910-198101

main55701-95708iKM20,TM20..(HRF,SRF)..MTM198101-198106

main55701-95711iTM20..3FC198101-198106

main55701-95714iKM20,TM20..(V,WG)..MTM198106-198210

main55701-95716iTM20..3FC198106-198210

main55701-95720iCM2#,KM21,YM25..TR198210-198609

TOWN ACE

main55701-95721iCM2#,KM21,YM2#..DLX,STD,SUP,SW198210-198609

LITE ACE

main55701-95727iCM20,YM21..CS7,FXV,GXL,MTP,S,XL198210-198508

55754ACOVER, FRONT PANEL

main55729-95700iKM20,TM20198106-198210

RH

main55729-95702iCM2#,KM21,YM2#198210-198609

RH

main55738-95700iKM20,TM20198106-198210

LH

main55738-95702iCM2#,KM21,YM2#198210-198609

LH

56111GLASS, WINDSHIELD

main56111-95702iCM2#,KM2#,YM25..DLX,STD; CM20,TM20,YM21..STD,SW197910-198508

*ZT,T=5.0

main56111-95703iCM20,TM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,XL); KM2#,YM20..SUP197910-198508

*TZT,T=5.0

main56111-95704iCM2#,KM21,YM25198508-198609

*LAM,T=5.7

main56111-95706iTM20..FXV,GXL,XL198201-198210

BRONZE,*ZT,T=5.0

main56111-95709iYM21..FXV198210-198508

*TL,T=5.7

56121WEATHERSTRIP, WINDSHIELD

main56121-87401iKM20..TR197910-198210

main56121-95702iCM2#,KM21,YM2#..CS7,DLX,MTP,S,STD,SUP,SW,XL198210-198609

main56121-95703iKM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL)197910-198210

main56121-95705iCM20,YM21..FXV,GXL198304-198508

6777395600

main67773-95600

9015960076

main90159-60076

9017906011

main90179-06011

9018906015

main90189-06015

9018906018

main90189-06018

9165540616

main91655-40616

9338516016

main93385-16016

9356015010

main93560-15010

22 parts on this diagram · 2 diagrams in section
