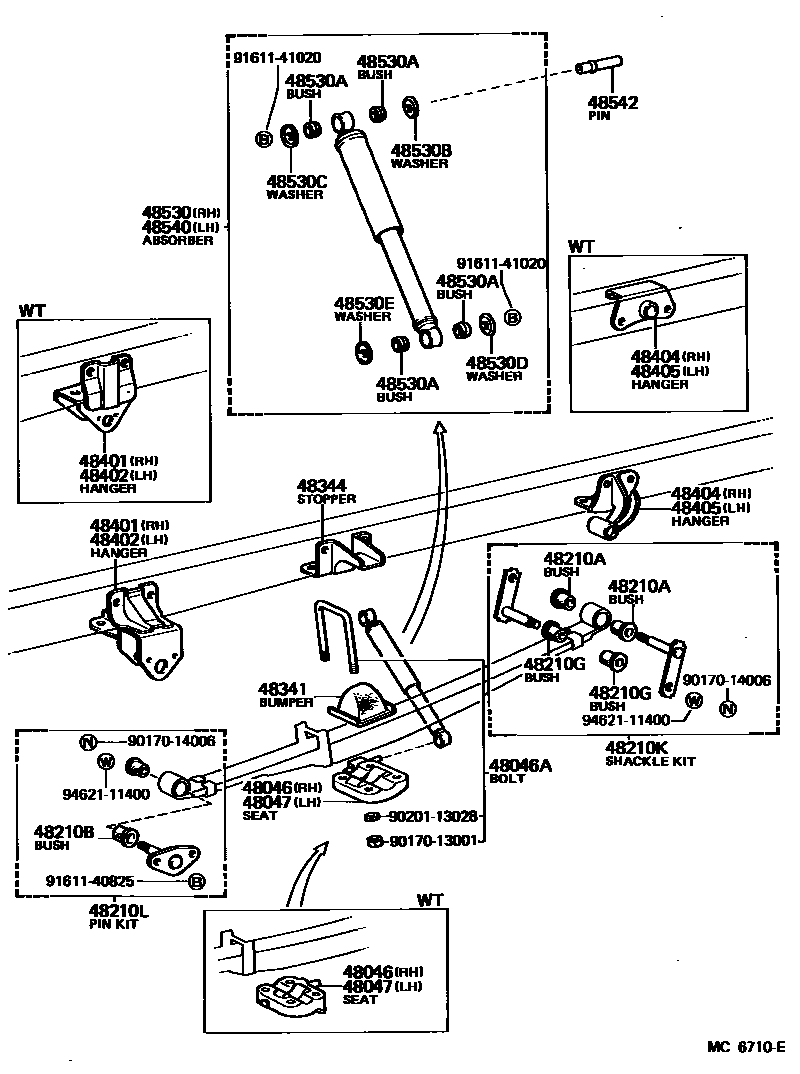

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26023iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

main48046-27020iCM20,KM2#..TR..ST197910-198609

main48046-27030iCM2#,KM2#,YM25..T2197910-198609

main48046-27040iKM20,TM20..(V,WG)..ST197910-198210

main48046-27050iCM20,KM2#,YM20..HRF..WT197910-198508

48046ABOLT, U(FOR REAR SPRING)

main90118-13091×4iCM20,KM21,YM20..V..ST198210-198508

main90118-13133×4iCM20,TM20,YM21..WG197910-198508

main90118-13152×4iKM20..V..ST197910-198210

main90118-13168×4iCM2#,KM21,YM25..(T2,T3)..CBU; CM20,KM21..ST..IV198210-198311

W/O TAIL GATE

main90118-13179×4iCM20,KM21..ST..IV198210-198609

SINGLE JUST LOW

main90118-13184×4iCM20,KM21..TS..ST..CBU198210-198311

main90118-13185×4iCM20,KM2#,YM20..HRF..WT197910-198508

main90118-13219×4iCM2#,KM21,YM25..TR198311-198609

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26023iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

main48047-27020iCM20,KM2#..TR..ST197910-198609

main48047-27030iCM2#,KM2#,YM25..T2197910-198609

main48047-27040iKM20,TM20..(V,WG)..ST197910-198210

main48047-27050iCM20,KM2#,YM20..HRF..WT197910-198508

48210SPRING ASSY, REAR RH

main48210-27080iCM20,KM2#..TS..ST..CBU198101-198609

main48210-27090iKM20..03S..WT197910-198101

main48210-27092iCM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU198210-198609

main48210-27100iKM20..V..ST197910-198210

main48210-27101iKM21..V..ST198210-198508

main48210-27110iKM20..06S..WT197910-198003

main48210-27111iKM20..06S..WT198003-198101

main48210-27112iKM20..HRF..WT198101-198210

main48210-27114iKM21..VSG..WT198210-198508

main48210-27120iYM21..07S,08S,09S198312-198508

main48210-27130iKM20..ST..IV198101-198210

main48210-27131iCM20,KM21..ST..IV; CM20,KM21..T3..CBU198210-198609

W/O TAIL GATE

main48210-27160iKM20..TS..WT198108-198210

W/O TAIL GATE

main48210-27161iCM25,26..TB;CM25,26,KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU198210-198609

W/O TAIL GATE

main48210-27180iCM20,YM20..V..ST198210-198508

main48210-27190iCM20,YM20..HRF..WT198210-198508

main48210-27220iCM20..08S198210-198508

main48210-27230iCM20,KM21..ST..IV198210-198609

SINGLE JUST LOW

main48210-27240iCM20,YM21..SW198312-198508

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-15001×4iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

main90385-18003×4iKM20..WT;KM20..TR..ST197910-198101

48210BBUSH(FOR REAR SPRING PIN)

main90385-18003×4iKM20..WT;KM20..TR..ST197910-198101

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18003×4iCM2#,KM2#,YM25..TR198101-198609

48210KSHACKLE KIT, REAR SPRING

main04483-27010×2iKM20..TR197910-198210

main04483-27011×2iCM2#,KM21,YM25..TR198210-198609

main04483-27020×2iKM20..06S..WT197910-198101

main04483-27021×2iKM20,TM20..(HRF,SRF)..ST197910-198101

48210LPIN KIT, REAR SPRING

main04484-27030×2iCM2#,KM2#,YM25..TR198101-198609

48341BUMPER, REAR SPRING

main48341-27010×2iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

main48341-27020×2iCM20,KM2#..TR..ST197910-198609

main48341-27040×2iKM20..T2197910-198210

main48341-28030×2iCM2#,KM21,YM25..T2198210-198609

48344STOPPER, BUMPER, REAR

main48344-27010iCM20,KM2#..TR..ST197910-198609

RH

main48344-27020×2iCM20,KM2#,YM20..HRF..WT197910-198508

main48344-27040×2iCM25,26,YM25198210-198609

main48354-27010iCM20,KM2#..TR..ST197910-198609

LH

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-27030iCM20,KM2#..TR..ST197910-198609

main48414-27040iCM2#,KM2#,YM25..T2197910-198609

main57701-95701iKM20,TM20..(V,WG)..ST197910-198210

main57701-95702iKM20..06S..WT197910-198101

main57701-95703iKM20..HRF..WT198101-198210

main57701-95704iCM20,KM21,YM20..HRF..WT198210-198508

main57701-95705iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-27030iCM20,KM2#..TR..ST197910-198609

main48414-27040iCM2#,KM2#,YM25..T2197910-198609

main57701-95701iKM20,TM20..(V,WG)..ST197910-198210

main57701-95705iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

main57702-95700iKM20..06S..WT197910-198101

main57702-95702iKM20..HRF..WT198101-198210

main57702-95703iCM20,KM21,YM20..HRF..WT198210-198508

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-27030iCM20,KM2#..TR..ST197910-198609

main48416-27040iCM2#,KM2#,YM25..T2197910-198609

main57703-95702iKM20,TM20..(V,WG)..ST197910-198210

main57703-95703iCM20,KM2#,YM20..HRF..WT197910-198508

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-27040iCM2#,KM2#,YM25..T2197910-198609

main48417-27020iCM20,KM2#..TR..ST197910-198609

main57705-95701iCM20,KM2#,YM20..HRF..WT197910-198508

main57705-95702iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29645iCM20,KM2#..TR..ST197910-198609

main48531-29655iKM20..T2197910-198210

main48531-29656iCM20,KM21..T2..CBU198210-198308

main48531-29665iKM2#..V..ST197910-198508

main48531-80015iCM20,YM20..V..ST198210-198508

main48531-80019iCM25,26,YM25;KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU198210-198609

W/O TAIL GATE

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iCM2#,KM2#,TM20,YM2#197910-198609

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004×2iCM2#,KM2#,TM20,YM2#197910-198609

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03007×2iCM2#,KM2#,TM20,YM2#197910-198609

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004×2iCM2#,KM2#,TM20,YM2#197910-198609

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03007×2iCM2#,KM2#,TM20,YM2#197910-198609

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29645iCM20,KM2#..TR..ST197910-198609

main48531-29655iKM20..T2197910-198210

main48531-29656iCM20,KM21..T2..CBU198210-198308

main48531-29665iKM2#..V..ST197910-198508

main48531-80015iCM20,YM20..V..ST198210-198508

main48531-80019iCM25,26,YM25;KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU198210-198609

W/O TAIL GATE

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-26020×2iCM2#,KM2#,YM25..TR197910-198609

9017013001

main90170-13001

9017014006

main90170-14006

9020113028

main90201-13028

9161140825

main91611-40825

9161141020

main91611-41020

9462111400

main94621-11400

29 parts on this diagram · 6 diagrams in section
