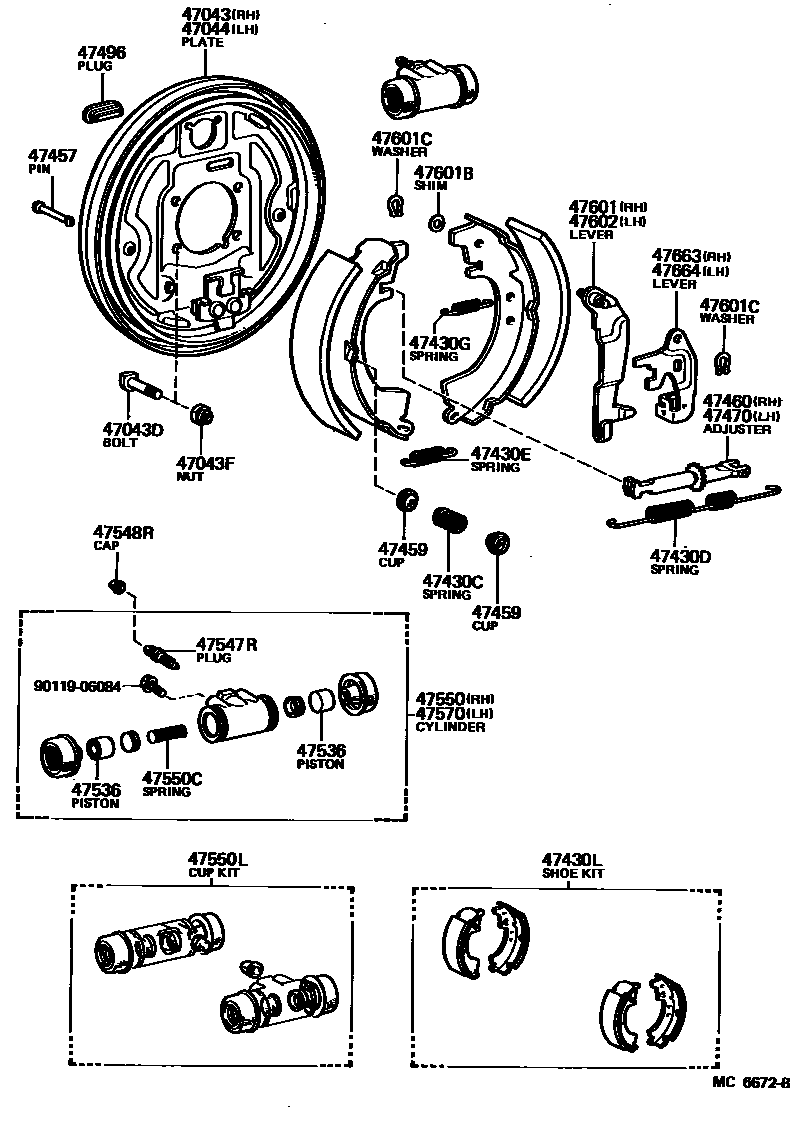

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-27010iCM2#,KM2#,YM20,25..WT197910-198609

main47043-28020iCM20,KM2#,TM20,YM20,21..ST197910-198609

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iCM20,KM2#,TM20,YM20,21..ST197910-198609

main90101-10069×4iCM2#,KM2#,YM20,25..WT197910-198609

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10191×4iCM2#,KM2#,YM20,25..WT197910-198609

main94181-11000×8iCM20,KM2#,TM20,YM20,21..ST197910-198609

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-27010iCM2#,KM2#,YM20,25..WT197910-198609

main47044-28020iCM20,KM2#,TM20,YM20,21..ST197910-198609

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iCM2#,KM2#,TM20,YM2#197910-198609

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23013×2iCM2#,KM2#,YM20,25..WT197910-198609

main90506-23375×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-16048×2iCM2#,KM21,YM20,25..WT198305-198609

main90506-23346×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

47430LSHOE KIT, REAR BRAKE

main04495-20050iCM20,YM21..WG198210-198508

FR DISC BRAKE

main04495-20080iCM20,KM21..(DLX,STD)..ST198210-198609

FR DRUM BRAKE

main04495-27010iKM20..WT197910-198210

FR DRUM BRAKE

main04495-27011iCM2#,KM21,YM20,25..WT198305-198609

main04495-27020iKM20..WT..CBU198101-198210

FR DISC BRAKE

main04497-20030iKM21..V..ST;KM21..TS..DLX..ST;CM20,YM20..(DLX,SUP)..ST198210-198609

REBUILT,FR DISC BRAKE

main04497-20060iCM20,KM21..(DLX,STD)..ST198210-198609

REBUILT,FR DRUM BRAKE

main04497-27010iKM20..WT197910-198210

REBUILT,FR DRUM BRAKE

main04497-27011iCM2#,KM21,YM20,25..WT198305-198609

REBUILT

main04497-27020iKM20..WT..CBU198101-198210

REBUILT,FR DISC BRAKE

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×2iCM2#,KM2#,YM20,25..WT197910-198609

FR

main47447-20030×4iCM20,KM2#,TM20,YM20,21..ST197910-198609

main47447-27010×2iCM2#,KM2#,YM20,25..WT197910-198609

RR

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iCM2#,KM2#,TM20,YM2#197910-198609

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iCM20,KM2#,TM20,YM20,21..ST197910-198609

main47460-27010iCM2#,KM2#,YM20,25..WT197910-198609

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iCM20,KM2#,TM20,YM20,21..ST197910-198609

main47470-27010iCM2#,KM2#,YM20,25..WT197910-198609

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

main47491-20020×2iCM2#,KM2#,YM20,25..WT197910-198609

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22031×4iKM20,TM20..(V,WG)..ST; KM20..ST; KM20..TS..DLX..ST197910-198210

ID=19.05W/C,FR DISC; ID=19.05W/C,FR DRUM,W/O LSPV

main47051-22040×4iKM20..ST; TM20..DLX,GXL,STD,XL197910-198210

ID=20.64,FR DRUM; ID=20.64W/C,FR DRUM,W/LSPV

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iCM2#,KM2#,TM20,YM2#197910-198609

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iCM2#,KM2#,TM20,YM2#197910-198609

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19125iCM20,KM21..(DLX,STD)..ST198210-198609

ID=19.05

main47550-19135iCM20,KM21,YM20,21..ST198210-198609

ID=20.64

main47550-29245iCM2#,KM2#,YM20,25..WT197910-198305

ID=15.87

main47550-29246iCM2#,KM21,YM20,25..WT198305-198609

ID=15.87

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010×2iKM20,TM20..(V,WG)..ST; KM20..ST; KM20..TS..DLX..ST197910-198210

ID=19.05W/C,FR DISC; ID=19.05W/C,FR DRUM,W/O LSPV

main47509-12020×2iKM20..ST; TM20..DLX,GXL,STD,XL197910-198210

ID=20.64,FR DRUM; ID=20.64W/C,FR DRUM,W/LSPV

main90501-06012×2iCM2#,KM2#,YM20,25..WT197910-198609

ID=15.87 W/C

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-12030iKM20,TM20..(V,WG)..ST; KM20..ST; KM20..TS..DLX..ST197910-198210

ID=19.05W/C,FR DISC; ID=19.05W/C,FR DRUM,W/O LSPV

main04906-12040iCM20,KM21..(DLX,STD)..ST; CM20,KM21..TS..DLX..ST198210-198609

ID=20.64W/C,FR DISC BRAKE; ID=20.64W/C,FR DRUM,W/LSPV

main04906-27010iCM2#,KM2#,YM20,25..WT197910-198609

ID=15.87 W/C

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19125iKM20,TM20..ST197910-198210

ID=19.05

main47550-19135iKM20,TM20..(DLX,GXL,STD,SUP,XL)..ST197910-198210

W/LSPV,ID=20.64

main47550-29245iCM2#,KM2#,YM20,25..WT197910-198305

ID=15.87

main47550-29246iCM2#,KM21,YM20,25..WT198305-198609

ID=15.87

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iCM20,KM2#,TM20,YM20,21..ST197910-198609

main47611-27010iCM2#,KM2#,YM20,25..WT197910-198609

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

main90564-08151×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

main90564-08152×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

main90564-08172×2iCM20,KM2#,TM20,YM20,21..ST197910-198609

main90564-08173×2iCM20,KM21,YM20,21..ST198210-198609

main90564-08174×2iCM20,KM21,YM20,21..ST198210-198609

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iCM20,KM2#,TM20,YM20,21..ST197910-198609

main90213-07010×2iCM2#,KM2#,YM20,25..WT197910-198609

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iCM20,KM2#,TM20,YM20,21..ST197910-198609

main47612-27010iCM2#,KM2#,YM20,25..WT197910-198609

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iCM20,KM2#,TM20,YM20,21..ST197910-198609

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iCM20,KM2#,TM20,YM20,21..ST197910-198609

9011906084

main90119-06084

28 parts on this diagram · 2 diagrams in section
