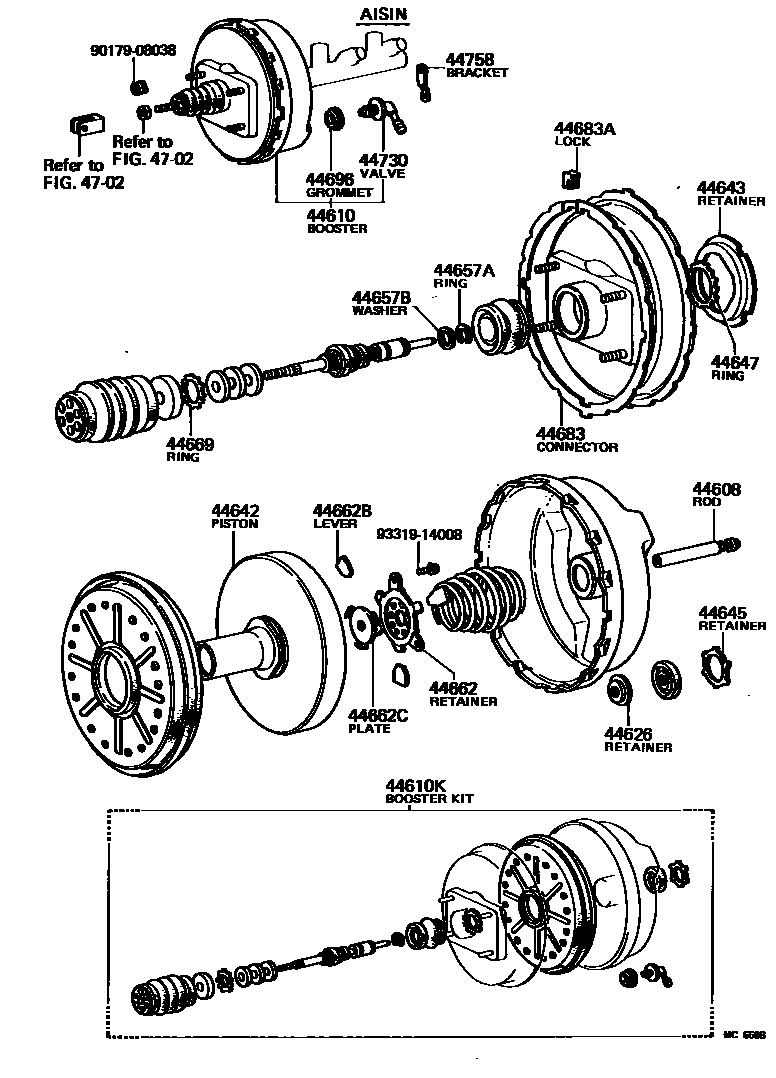

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCM2#,KM21,YM2#198410-198609

main44606-28120iTM20..FXV198101-198210

main44606-32010iCM2#,KM21,YM2#198210-198410

main44606-35100iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44610BOOSTER ASSY, BRAKE

main44610-27030iKM20..(DLX,SUP)..CBU;KM20,TM20..HRF..(STD,XL);TM20..(MRF,SRF)..(DLX,GXL,STD,XL)198101-198210

FR DISC BRAKE

main44610-27050iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

FR DRUM BRAKE

main44610-27080iTM20..FXV198101-198210

FR DISC BRAKE

main44610-27130iYM2#;KM21..V;KM21..TR..DLX198210-198609

FR DISC BRAKE

main44610-27140iCM2#198210-198609

FR DISC BRAKE

main44610-27150iKM21,YM25..DLX,STD198210-198609

FR DRUM BRAKE

main44610-27160iCM2#..DLX198210-198609

FR DRUM BRAKE

44610KBOOSTER KIT, BRAKE

main04443-12190iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

main04443-27070iTM20..FXV198101-198210

main04443-27100iYM2#;KM21..V;KM21..TR..DLX198210-198609

FR DISC BRAKE

main04443-27110iCM2#198210-198609

FR DISC BRAKE

main04443-27120iKM21,YM25..DLX,STD198210-198609

FR DRUM BRAKE

main04443-27130iCM2#..DLX198210-198609

FR DRUM BRAKE

44626RETAINER, BOOSTER ROD CUP

main44626-60010iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44642PISTON, BRAKE BOOSTER

main44642-14170iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

main44642-16050iTM20..FXV198101-198210

main44642-27150iCM2#,KM21,YM25..DLX,STD198210-198609

FR DRUM BRAKE

44643RETAINER, DIAPHRAGM

main44643-60010iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-28120iTM20..FXV198101-198210

main44628-60010iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44662RETAINER, REACTION, NO.1

main44662-35100iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44662BLEVER, REACTION

main44661-35100×3iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44662CPLATE, REACTION, NO.1

main44607-22330iKM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL)..ST197910-198101

FR DISC BRAKE

main44607-27050iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

FR DRUM BRAKE

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44683CONNECTOR, BOOSTER BODY

main44682-20150iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44683ALOCK, CONNECTOR

main44683-20100iKM20,TM20..DLX,GXL,STD,SUP,XL197910-198210

44696GROMMET, CHECK VALVE

main90480-24439iKM2#,TM20,YM2#197910-198609

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iKM2#,TM20,YM2#197910-198609

main44730-60040iCM2#198210-198609

44758BRACKET, VACUUM CHECK VALVE

main44758-20051iKM20,TM20197910-198210

main44758-27060iKM21,YM2#198210-198609

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9331914008

main93319-14008

22 parts on this diagram · 8 diagrams in section
