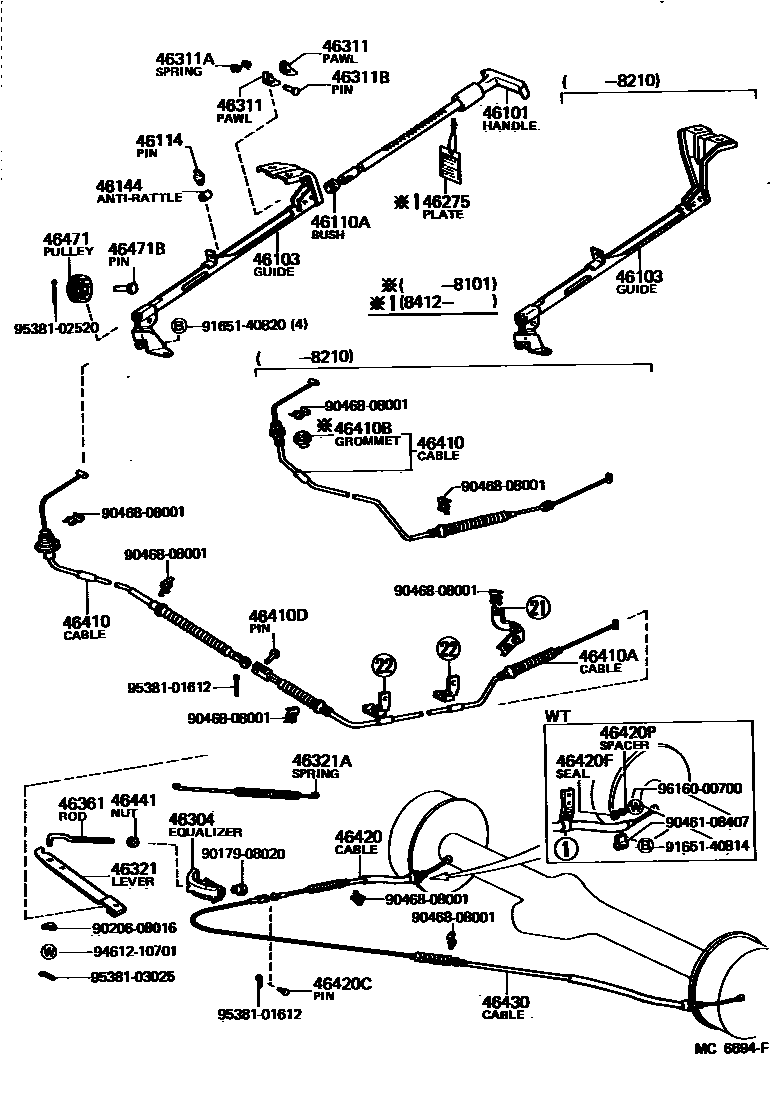

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-26030iCM2#,KM2#,TM20,YM2#..MTM197910-198412

main46120-27010iCM2#,KM21,YM2#..MTM198412-198609

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-27020iKM20,TM20..MTM197910-198210

main46103-27021iCM2#,KM21,YM2#..MTM198210-198609

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iCM2#,KM2#,TM20,YM2#..MTM197910-198609

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iCM2#,KM2#,TM20,YM2#..MTM197910-198609

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iCM2#,KM2#,TM20,YM2#..MTM197910-198609

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iCM2#,KM21,YM2#..MTM198412-198609

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCM25,26,YM25198210-198609

main46341-27010iCM20,KM21,YM20,21..V,WG197910-198508

main46341-27020iCM20,KM21..TR198210-198609

main46341-35010iKM20..TR197910-198210

46311PAWL, PARKING BRAKE

main46311-26010iCM2#,KM21,YM2#..MTM198412-198609

main46311-30041iCM2#,KM2#,TM20,YM2#..MTM197910-198412

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-07007iTM20,YM20,21..3FC198101-198508

main90508-08106iCM2#,KM2#,TM20,YM2#..MTM197910-198609

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iCM2#,KM2#,TM20,YM2#..MTM197910-198609

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-27020iCM20,KM2#,TM20,YM20,21..(V,WG)..MTM..ST197910-198508

main46321-27030iCM20,KM21,YM20..HRF..WT197910-198508

main46321-27040iKM20..TR..ST197910-198210

main46321-27041iCM20,KM21..TS..ST198210-198411

main46321-27042iCM20,KM21..TS..ST198411-198609

main46321-27050iCM2#,KM21,YM25..T2198210-198411

main46321-27051iCM25,26,YM25198411-198609

main46321-27060iCM20,KM21..T2198411-198609

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-20026iKM20,TM20..(HRF,SRF)..ST197910-198508

main90506-20028iCM20,KM2#,YM20..HRF..WT197910-198508

main90506-23020iCM25,YM25198210-198411

main90506-23025iCM20,KM21..TR198210-198411

main90506-23033iCM20,KM21..TR198411-198609

main90506-23034iCM25,26,YM25198411-198609

main90506-23320iKM20..TR197910-198210

46361ROD, PARKING BRAKE PULL

main46361-27010iCM20,KM2#,YM20..HRF..WT197910-198508

main46361-27020iKM20,TM20..(HRF,SRF)..ST197910-198508

main46361-27030iCM25,26,YM25198210-198609

main46361-27040iCM20,KM21..TR198301-198609

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27050iKM20..TR197910-198101

main46410-27051iKM20..TR198101-198210

main46410-27052iCM2#,KM21,YM25..TR198210-198609

main46410-27061iKM20,TM20..(V,WG)..MTM..ST197910-198210

main46410-27062iCM20,KM21,YM20,21..(V,WG)..MTM..ST198210-198508

main46410-27080iKM20..06S..WT197910-198101

main46410-27081iKM20..HRF..WT198101-198210

main46410-27082iCM20,KM21,YM20..HRF..WT198210-198508

main46410-27090iTM20..3FC198101-198210

main46410-27091iYM20,21..3FC198210-198508

46410ACABLE ASSY, PARKING BRAKE, NO.5

main46410-27130iCM2#,KM21,YM25..TR198210-198609

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-20004iKM20,TM20197910-198101

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-06032iCM2#,KM21,YM25..TR198210-198609

main90249-10012iTM20,YM20,21..3FC198101-198508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-27030iKM20..TR..ST197910-198210

main46420-27031iCM20,KM21..TS..ST198210-198609

main46420-27040iCM20,KM2#..T2197910-198609

main46420-27050iKM20..V..ST197910-198210

main46420-27051iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

main46420-27060iCM20,KM2#,YM20..HRF..WT197910-198508

main46420-27070iTM20197910-198210

main46420-27110iCM25,26,YM25198210-198609

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iCM20,KM2#,TM20,YM20,21197910-198609

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iCM2#,KM2#,YM20,25..WT197910-198609

46420PSPACER, PARKING BRAKE

main90560-08015iCM2#,KM2#,YM20,25..WT197910-198609

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-27030iKM20..TR..ST197910-198210

main46430-27031iCM20,KM21..TS..ST198210-198505

main46430-27032iCM20,KM21..TS..ST198505-198609

main46430-27040iCM20,KM2#..T2197910-198505

main46430-27041iCM20,KM21..T2198505-198609

main46430-27050iKM20..V..ST197910-198210

main46430-27051iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

main46430-27060iCM20,KM2#,YM20..HRF..WT197910-198508

main46430-27070iTM20197910-198210

main46430-27110iCM25,YM25198210-198411

main46430-27111iCM25,26,YM25198411-198609

46441NUT, WIRE ADJUSTING, NO.1

main46441-22010iCM25,26,YM25198210-198609

main94120-40800iCM20,KM2#,TM20,YM20,21..MTM197910-198609

46471PULLEY, WIRE

main46471-20010iCM2#,KM2#,TM20,YM2#..MTM197910-198609

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iCM2#,KM2#,TM20,YM2#..MTM197910-198609

9017908020

main90179-08020

9020608016

main90206-08016

9046108407

main90461-08407

9046808001

main90468-08001

9165140814

main91651-40814

9165140820

main91651-40820

9461210701

main94612-10701

9538101612

main95381-01612

9538102520

main95381-02520

9538103025

main95381-03025

9616000700

main96160-00700

36 parts on this diagram · 6 diagrams in section
