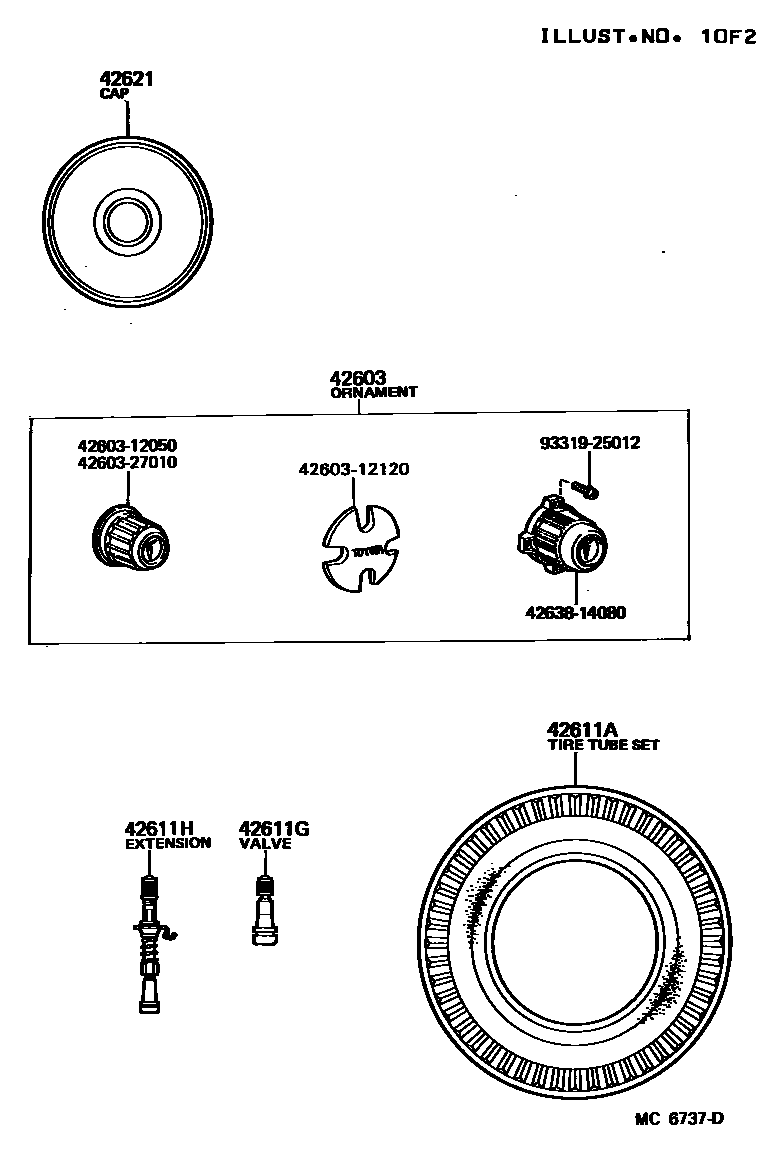

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050×4iTM20;KM20..V..(DLX,SUP)..ST197910-198210

main42603-12120×4iCM20,TM20,YM21..CS7,FXV,GXL,MTP,S,XL198201-198508

ALUMI WHEEL,TYPE G

main42603-27010×4iCM20,KM21,YM20,21..(V,WG)..ST198210-198508

main42638-14080×4iTM20..FXV,GXL197910-198201

ALUMI WHEEL,TYPE D

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-27010×5iCM2#,KM2#,YM20,25..WT197910-198609

5.00-10-6,RR

main42605-27060×5iCM2#,KM21,YM2#198408-198609

5.50-13-16,*(B)

main42605-27070×3iCM20,KM21,YM20..TR,V198408-198609

5.50-13-8,RR,*(B)

main42605-28010×5iKM20..TR..ST; KM20..V..(DLX,SUP)..ST197910-198210

165R-13-6

main42605-28030×5iCM20,KM21,YM20..TR,V198210-198609

165R13-6

main42605-28040×3iCM20,YM20..V..ST198210-198508

165R13-8,RR

main42652-12320×5iTM20..FXV,GXL,XL198201-198210

175SR13

main42652-14140×5iTM20197910-198201

165SR13

main42652-14180×5iTM20197910-198210

185/70HR13

main42652-27020×5iTM20..DLX,STD,XL198201-198210

165SR13,*(B),*(D),*(T)

main42652-28010×5iCM20,YM21..WG198210-198508

175SR13

main42652-28020×5iCM20,YM21..WG198302-198508

185/70SR13,*(B),*(D),*(T)

main42652-32020×5iCM20,YM21..WG198210-198508

185/70SR13,*(Y)

main98061-55133×5iTM20197910-198210

5.50-13-6,*(B) & *(D)

main98061-55134×3iKM20..TR..ST197910-198210

5.50-13-8,RR

main98961-55133×5iTM20197910-198210

5.50-13-6,*(T) & *(Y)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iCM20,TM20,YM21..WG197910-198508

42611HEXTENSION, VALVE

main90942-05010×2iCM2#,KM21,YM20,25..WT198210-198508

INSIDE TIRE

42621CAP, WHEEL

main42621-26110×4iKM2#..STD..ST197910-198609

main42621-27020×4iKM20..(DLX,SUP)..ST197910-198210

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120

4260327010ORNAMENT SUB-ASSY, WHEEL HUB

main42603-27010

4263814080

main42638-14080

9331925012

main93319-25012

10 parts on this diagram · 2 diagrams in section
