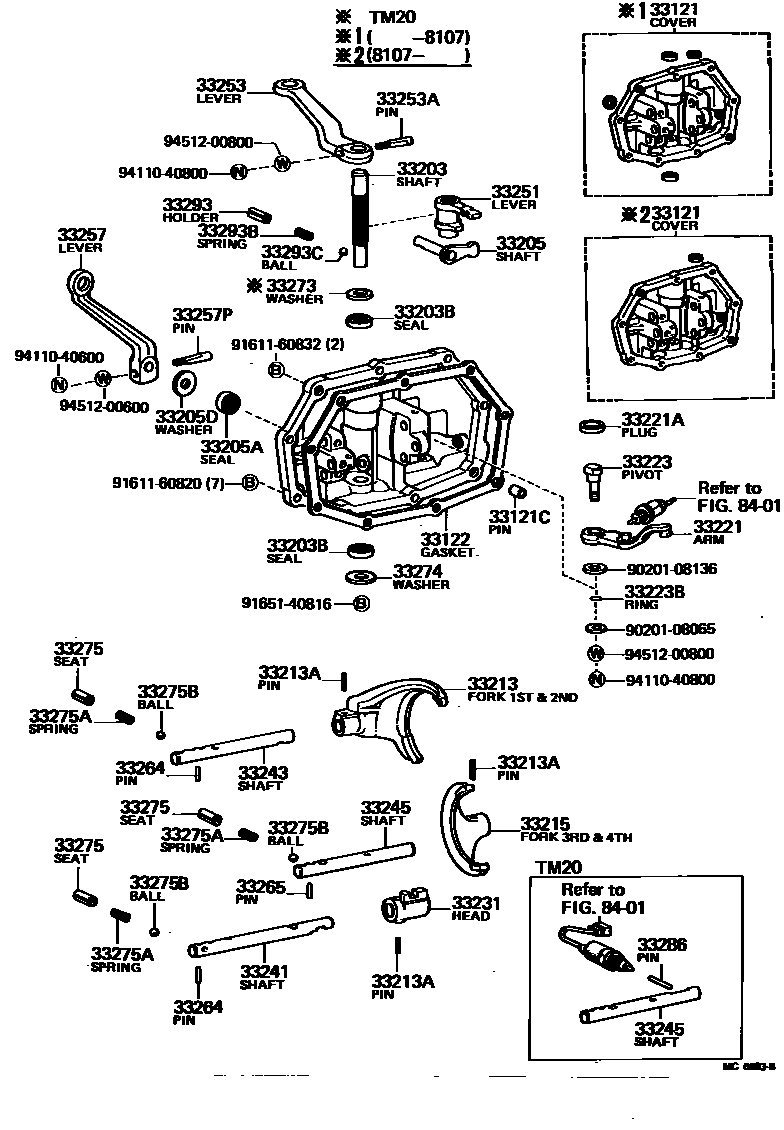

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33121CPIN(FOR TRANSMISSION CASE COVER)
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
LWR
UPR
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
L=22
L=25.5
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)
sub96411-42500
33223PIVOT, SHIFT ARM
33223BRING, O(FOR SHIFT ARM PIVOT)
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33253LEVER, SHIFT OUTER, NO.1
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=39.2,OD=9.53
L=14.9,OD=9.35
33265PIN, SHIFT INTERLOCK, NO.2
33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
sub90501-13006
sub90501-14123
sub90501-14132
33275BBALL, SHAFT DETENT
33286PIN, SWITCH PRESSURE
33293HOLDER, REVERSE RESTRICT BALL
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
33293CBALL (FOR REVERSE RESTRICT)
8401
9020108065
main90201-08065
9020108136
main90201-08136
9161160820
main91611-60820
9161160832
main91611-60832
9165140816
main91651-40816
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
45 parts on this diagram · 4 diagrams in section
