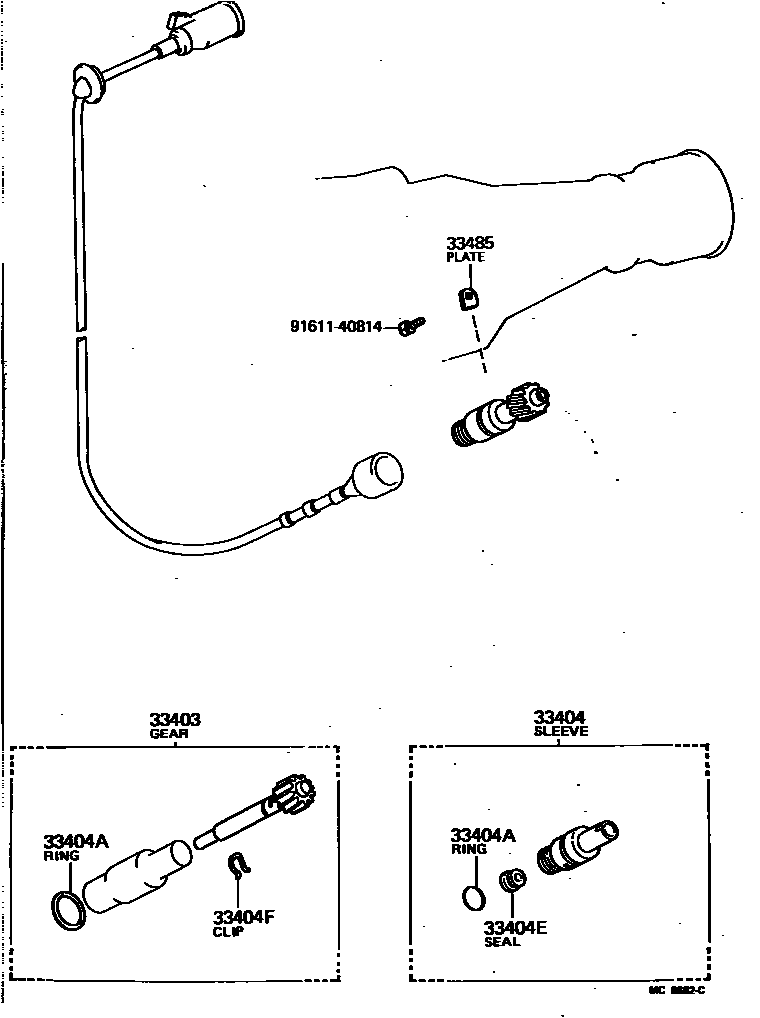

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39036iTM20..4F,4H197910-198210

main33403-39045iKM20..ST198101-198210

main33403-39055iKM20197910-198210

N=16,DIFF R=4.778

main33482-29035iYM20..06S..ST198210-198609

main33482-29045iCM20,25..03S..WT198210-198609

main33482-29055iTM20..5F198101-198210

main33482-39025iYM21..MTM198210-198508

main33482-39035iYM20..5H198101-198508

main33482-39045iYM21..MTM..(CS7,FXV,GXL,MTP,S,XL)198210-198508

main33482-39085iYM25198210-198609

main33482-39095iKM21198210-198609

main33482-39105iKM21..ST198210-198609

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iKM20,TM20..4F,4H197910-198210

main33404-35010iCM2#,KM21,YM2#..MTM198101-198609

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCM2#,KM2#,TM20,YM2#..MTM197910-198609

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCM2#,KM2#,TM20,YM2#..MTM197910-198609

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iTM20..5F198101-198609

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCM2#,KM2#,TM20,YM2#..MTM197910-198609

9161140814

main91611-40814

7 parts on this diagram · 1 diagram in section
