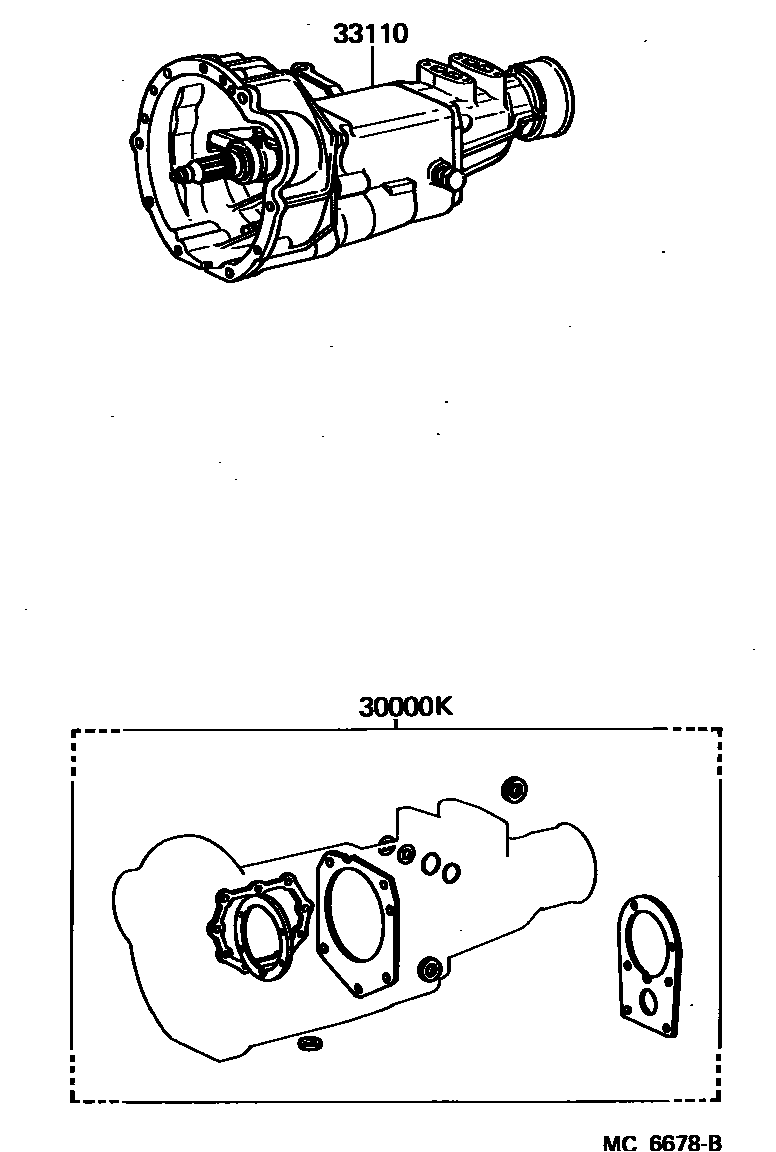

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26010iKM2#,TM20,YM25..4F,4H197910-198609

main04331-35071iTM20..5F198101-198210

main04331-35080iCM2#,YM20,21..MTM198210-198609

33110TRANSMISSION ASSY, MANUAL

main33030-27020iYM25198210-198609

main33110-27070iKM20..ST198101-198210

SMG R=17:4,DIFF R=5.125&4.100

main33110-27071iKM21198210-198609

main33110-27080iKM20197910-198210

SMG R=16:4,DIFF R=4.778&3.909

main33110-27130iTM20197910-198007

SMG R=17:5

main33110-27150iTM20197910-198007

SMG R=17:5,REDUCTION STARTER

main33110-27151iTM20..4F,4H198007-198210

SMG R=17:5

main33110-27160iTM20..5F..XL198101-198201

SMG R=17:5

main33110-27170iTM20..5F198101-198210

SMG R=21:6

main33110-27190iYM20..5H198210-198508

main33110-27200iCM20..DLX..ST198210-198609

main33110-27210iCM20..5F198210-198508

main33110-27220iYM21..MTM198210-198508

2 parts on this diagram · 3 diagrams in section
