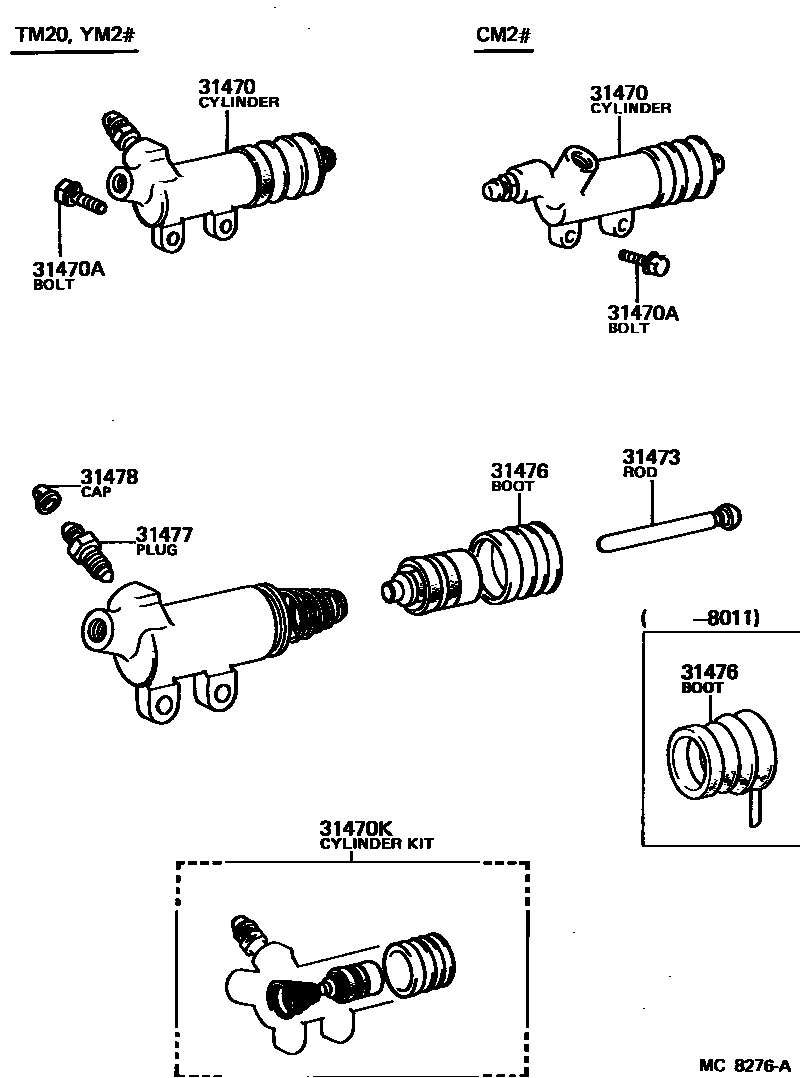

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28030iCM2#198210-198609

main31470-30140iTM20197910-198011

main31470-30141iTM20..4F,4H198011-198210

main31470-30230iTM20..5F198101-198210

main31470-35050iYM2#..MTM198210-198609

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iCM2#,TM20,YM2#..MTM197910-198609

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iCM2#,YM2#..MTM198210-198609

main04313-30090iTM20197910-198011

main04313-30120iTM20..MTM198011-198210

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCM2#,YM2#..MTM198210-198609

main31473-30040iTM20197910-198011

main31473-30041iTM20..4F,4H198011-198210

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCM2#,TM20,YM2#..MTM198011-198609

main31476-30040iTM20197910-198011

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCM2#,TM20,YM2#..MTM197910-198609

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCM2#,TM20,YM2#..MTM197910-198609

7 parts on this diagram · 1 diagram in section
