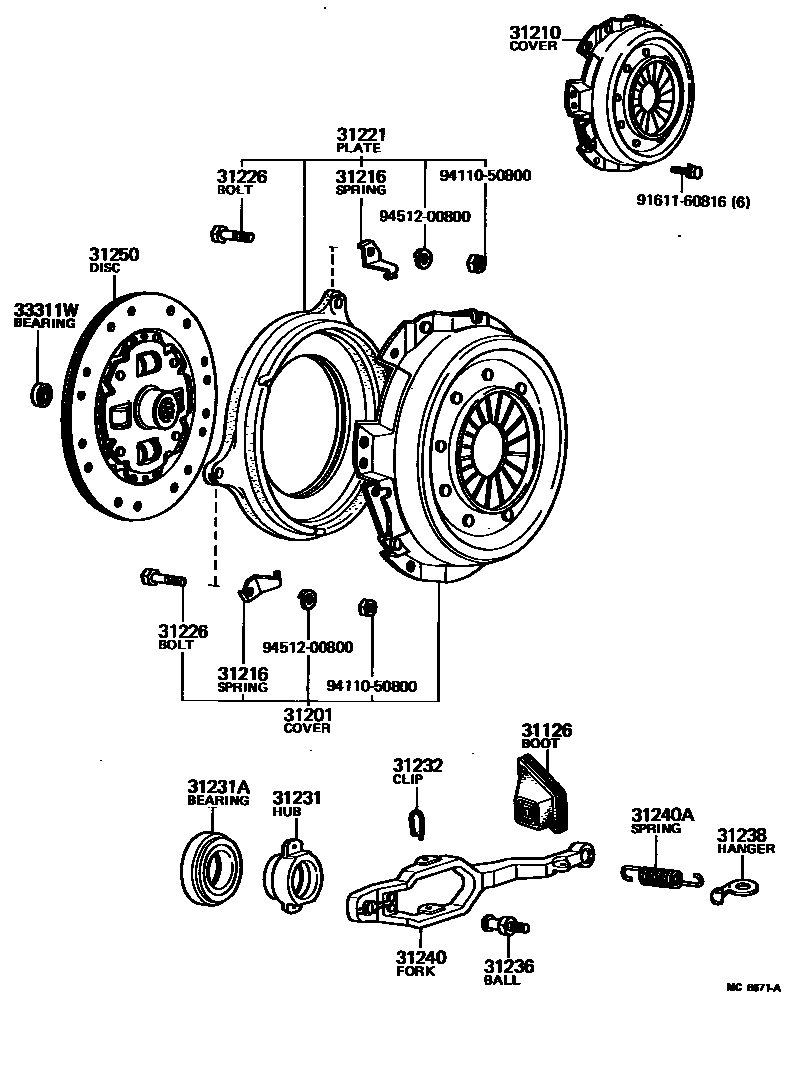

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20040iTM20..4F,4H197910-198210

main31126-20060iYM2#..MTM198210-198609

main31126-20070iCM2#,TM20..5F,5H198101-198609

main31126-27020iKM2#197910-198609

31201COVER SUB-ASSY, CLUTCH

main31201-29068iKM20197910-198101

main31201-29076iTM20197910-198101

main31201-29085iCM2#,TM20,YM21..MTM198101-198609

main31201-29105iKM20198101-198210

main31201-39047iYM20,25..MTM198210-198508

31210COVER ASSY, CLUTCH

main31210-20092iKM20197910-198101

main31210-20093iKM20198101-198210

main31210-26021iTM20197910-198101

main31210-26030iYM25198508-198609

main31210-28010iKM21198210-198609

main31210-35042iYM20,25..MTM198210-198508

31216SPRING, CLUTCH RETRACTING

main31216-20020×3iKM20197910-198210

main31216-30010×3iCM2#,TM20,YM2#..MTM197910-198609

31221PLATE, CLUTCH PRESSURE

main31221-29015iKM20197910-198210

main31221-29035iCM2#,TM20,YM21..MTM197910-198609

main31221-39045iYM20,25..MTM198210-198508

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iCM2#,YM2#..MTM198308-198609

main90101-08350×3iCM2#,KM20,TM20,YM2#..MTM197910-198308

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iCM2#,TM20..5F,5H198101-198609

main31231-27012iKM20197910-198009

main31231-27013iKM20198009-198210

main31231-27020iTM20..4F,4H198010-198210

main31231-27030iKM21198509-198609

main31231-30071iTM20197910-198010

main31231-30080iKM21198210-198509

main31231-36070iYM2#..MTM198210-198609

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iTM20197910-198002

main90363-40005iKM20197910-198002

main90363-40008iTM20198002-198012

main90363-40013iKM20198002-198009

main90363-40019iKM20198009-198210

main90363-40022iCM2#,KM21,TM20,YM2#..MTM198012-198609

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010×2iTM20..4F,4H198010-198210

main31232-22010×2iTM20..5F198101-198210

main31232-30010×2iTM20197910-198010

main31232-30020×2iKM2#197910-198609

31236BALL, RELEASE FORK

main31236-20020iKM20,TM20..4F,4H197910-198107

main31236-30060iKM20,TM20..4F,4H198107-198210

main31236-35020iTM20..5F198101-198210

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM2#197910-198609

31240FORK ASSY, CLUTCH RELEASE

main31204-20040iTM20197910-198010

main31204-20070iYM2#..MTM198210-198508

main31204-20071iYM25198508-198609

main31204-20090iCM2#,TM20..5F,5H198101-198609

main31204-27010iKM20197910-198009

main31204-27011iKM2#198009-198609

main31204-27020iTM20..4F,4H198010-198102

main31204-27030iTM20..4F,4H198102-198210

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM2#197910-198609

31250DISC ASSY, CLUTCH

main31250-14110iTM20..MTM198109-198210

main31250-20111iCM2#198210-198407

main31250-20112iCM2#198407-198502

main31250-20113iCM2#198502-198609

main31250-25020iTM20..MTM197910-198109

main31250-27023iKM20197910-198107

main31250-27024iKM2#198107-198312

main31250-27025iKM21198312-198609

main31250-35061iYM2#..MTM198210-198502

main31250-35062iYM2#..MTM198502-198609

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM2#..MTM198210-198609

main90363-12003iKM2#,TM20198010-198609

main90363-12004iCM2#198210-198609

main97123-06001iKM20,TM20197910-198010

6001 ZZ C3

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

18 parts on this diagram · 5 diagrams in section
