21015HOUSING SUB-ASSY, COIL

main21015-13030i197910-198210

main21015-13390i198210-198508

main21015-13391i198508-198510

main21015-13392i198510-198609

main21015-18030i198106-198210

main21015-18110i198101-198106

main21015-71010i198210-198609

main21015-73010i198210-198508

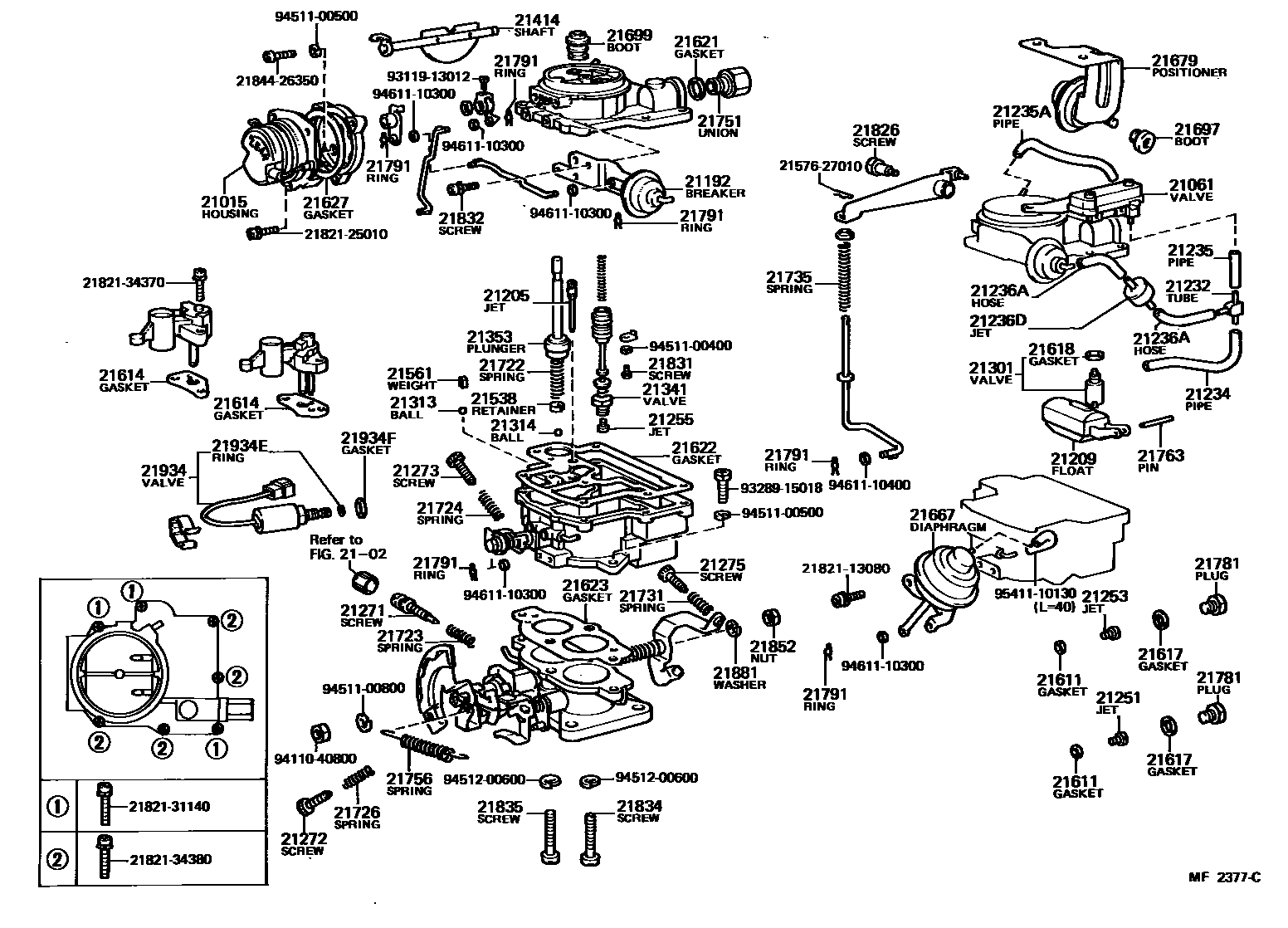

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

21061VALVE SUB-ASSY, THERMOSTATIC

main21061-13090i197910-198609

21192BREAKER

main21192-13091i197910-198210

main21192-13390i198210-198609

main21192-18050i197910-198210

main21192-18110i198101-198210

main21192-71010i198411-198508

main21192-72020i198411-198609

21205JET SUB-ASSY, SLOW

main21205-13090i197910-198210

main21205-13250i198210-198609

main21205-18050i197910-198210

main21205-35240i198210-198609

main21205-72010i198210-198508

21209FLOAT SUB-ASSY

main21209-15020i198004-198210

main21209-24480i197910-198609

main21209-27040i197910-198004

main21209-37041i198210-198609

21232TUBE

main21232-13050i197910-198609

21234PIPE OR HOSE

main21234-13030i197910-198210

main21234-13031i198210-198609

21235PIPE OR HOSE, CONNECTING

main21235-13030i197910-198210

main21235-13031i198210-198609

21235APIPE OR HOSE, CONNECTING

main21249-13030i197910-198210

main21249-13031i198210-198609

NO.1

main21249-13090i198210-198609

NO.2

21236AHOSE, NO.1(FOR OPENER)

main95411-19930×2i197910-198609

*H,L=60

21236DJET(FOR OPENER)

main90925-04006i197910-198210

21251JET, 1ST MAIN

main90999-41099i198210-198609

ID=0.99

main90999-41102i197910-198210

ID=1.02

main90999-41103i197910-198210

ID=1.03

main90999-41108i198210-198508

ID=1.08

21253JET, 2ND MAIN

main21253-37040i198210-198609

main90999-42150i198210-198609

ID=1.50

main90999-42153i197910-198210

ID=1.53

main90999-42162i197910-198210

ID=1.62

21255JET, POWER

main90999-43047i197910-198210

ID=0.47

main90999-43050i198101-198210

ID=0.50

21271SCREW, IDLE ADJUSTING

main21271-13270i198206-198609

main21271-15230i198210-198609

main21271-24470i197910-198206

main21271-25201i197910-198210

21272SCREW, 1ST IDLE ADJUSTING

main21272-24100i197910-198405

main21272-71010i198210-198609

main21814-33010i198405-198609

main21828-25180i197910-198210

21273SCREW, THROTTLE ADJUSTING

main21273-13390i198405-198609

main21273-24230i197910-198002

main21273-24231i198002-198405

main21273-71010i198210-198307

main21273-71011i198307-198609

main21844-33010i197910-198210

21275SCREW, ADJUSTING

main21275-24360i197910-198609

main21275-71010i198210-198609

21301VALVE SUB-ASSY, NEEDLE

main21301-15020i198004-198210

main21301-15080i197910-198004

main21301-24501i197910-198609

main21301-35010i198210-198609

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i197910-198609

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-11020i197910-198210

main21314-60010i197910-198609

21341VALVE, POWER

main21304-61060i198210-198609

21353PLUNGER, PUMP

main21305-22011i197910-198210

main21353-24010i198210-198609

main21353-33010i197910-198210

21414SHAFT, CHOKE

main21054-13030i197910-198210

main21054-13390i198210-198405

main21054-13391i198405-198609

21538RETAINER, BALL CHECK

main21538-31010i197910-198609

21561WEIGHT, PUMP DISCHARGE

main21561-22010i197910-198609

21611GASKET, MAIN JET

main21611-22010×2i197910-198609

21614GASKET, VENTURI

main21614-22010i197910-198609

1ST

main21614-24360i197910-198609

2ND

main21614-33010i197910-198210

1ST

main21614-33080i197910-198210

2ND

21617GASKET, MAIN PASSAGE PLUG

main21617-30010×2i197910-198609

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i197910-198609

21621GASKET, UNION NIPPLE

main21621-30010×2i197910-198210

main21633-24030×2i197910-198609

21622GASKET, AIR HORN

main21622-24360i197910-198609

main21622-28090i197910-198004

main21622-28091i198004-198210

main21622-37040i198210-198303

main21622-71010i198303-198609

21623GASKET, BODY FLANGE

main21623-13080i197910-198609

main21623-25180i197910-198210

21627GASKET, COIL HOUSING

main21627-28090i198210-198609

main21627-28150i198210-198609

main21627-34080i197910-198210

21667DIAPHRAGM

main21667-13090i197910-198210

main21667-13390i198210-198609

main21667-37040i198210-198609

MAIN

main21667-38011i197910-198012

main21667-38310i198210-198609

SUB

main21667-63010i198210-198411

*CHB

main21667-63090i198411-198508

*CHB

21679POSITIONER

main21679-13090i197910-198609

21697BOOT(FOR SLIDING ROD)

main21699-24360i197910-198609

21699BOOT(FOR PUMP PLUNGER)

main21699-21061i197910-198009

main21699-28150i198009-198609

21722SPRING, PUMP DAMPING

main21722-22010i197910-198609

21723SPRING, IDLE ADJUSTING

main21723-21030i197910-198609

21724SPRING, THROTTLE ADJUSTING

main21723-21030i197910-198210

main21723-38330i198210-198609

main21864-24230i197910-198609

21726SPRING, 1ST IDLE ADJUSTING

main21723-21030i197910-198210

main21726-38310i198210-198609

main21726-40010i197910-198609

21731SPRING, DASH POT OR POSITIONER ADJUSTING

main21723-11041i198210-198609

main21864-24010i197910-198609

21735SPRING, PUMP ARM

main21735-15010i198101-198210

main21735-22010i197910-198609

main21735-25200i197910-198101

21751UNION, NIPPLE

main21751-24034i197910-198609

main21751-26390i197910-198210

main21894-71010i198210-198609

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21756-33080i197910-198210

main21869-37040i198210-198609

main90507-10003i197910-198609

21763PIN, FLOAT LEVER

main21763-26350i197910-198210

main21763-34320i198210-198609

main21763-38010i197910-198609

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230×2i198210-198609

main21781-30020×2i197910-198206

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010×2i198411-198609

TYPE2

main21791-60010×9i197910-198609

21826SCREW, PUMP ARM SET

main21826-24470i198210-198609

main21826-31012i197910-198210

21831SCREW, POWER PISTON STOP

main21821-15060i198210-198609

main21842-33010i197910-198104

21832SCREW(FOR CHOKE LEVER ADAPTER SET)

main21821-15010i197910-198609

21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

main21834-31010i197910-198609

main21844-26400×2i197910-198210

21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)

main21835-40010i197910-198609

21852NUT, THROTTLE LEVER SET

main21852-30010i197910-198609

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i197910-198609

21934SOLENOID, THROTTLE VALVE

main21062-13030i197910-198508

main21062-13391i198508-198609

main21062-26620i197910-198210

1ST

main21062-27040i197910-198210

2ND

main21062-71010i198210-198609

main21062-73010i198210-198508

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101×2i197910-198609

21934FGASKET

main21617-10010×2i197910-198405

main21649-38010i198405-198609

2157627010CLIP, PUMP STRAINER

main21576-27010

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182134370SCREW, 2ND THROTTLE VALVE SET

main21821-34370

2182134380SCREW, 2ND THROTTLE VALVE SET

main21821-34380

2184426350SCREW, CHOKE LEVER

main21844-26350

9311913012

main93119-13012

9328915018

main93289-15018

9411040800

main94110-40800

9451100400

main94511-00400

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400

9541110130

main95411-10130
