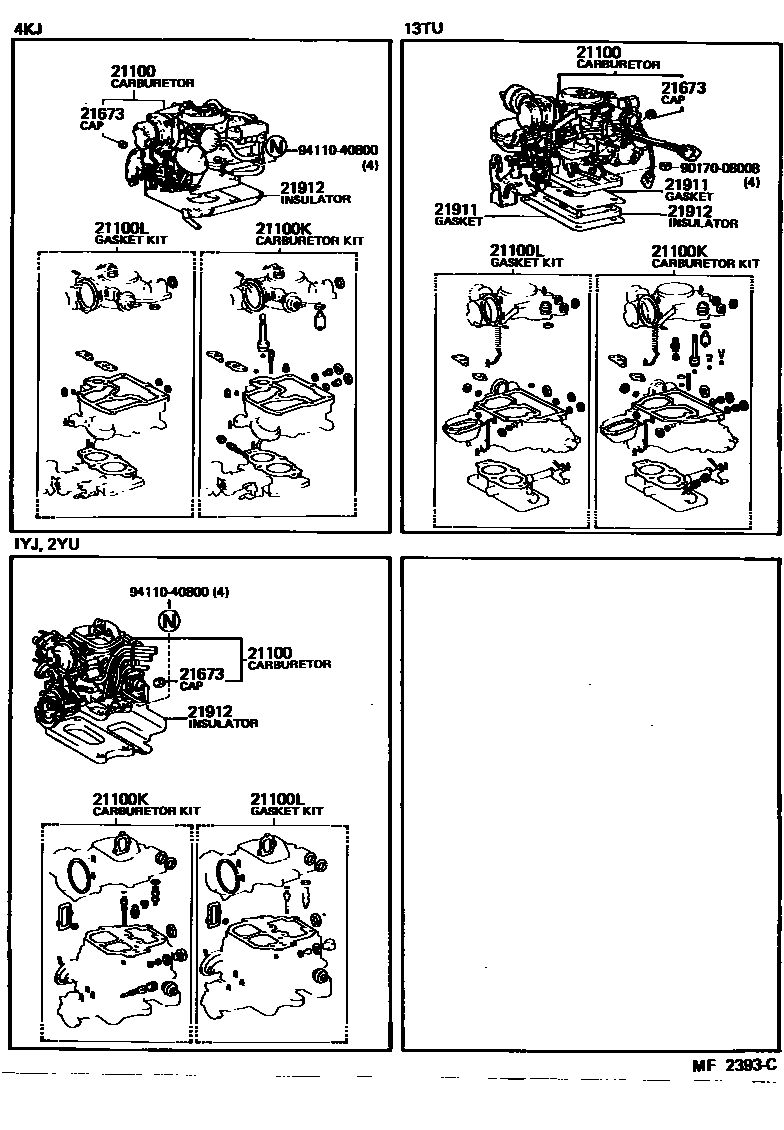

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-13090i4KJ..KM20197910-198210

main21100-13390i4KJ..KM21198210-198508

main21100-13391i4KJ..KM21198508-198609

main21100-18050i13TU..TM20..MTM197910-198210

main21100-18110i13TU..TM20..3FC198101-198210

main21100-71010i1YJ..YM20,25198210-198609

main21100-72010i2YU..YM21198210-198508

21100KCARBURETOR KIT

main04211-13110i4KJ..KM20197910-198206

main04211-13111i4KJ..KM20198206-198210

main04211-13270i4KJ..KM21198210-198609

main04211-18040i13TU..TM20197910-198004

main04211-18041i13TU..TM20..MTM198004-198210

main04211-18100i13TU..TM20..3FC198101-198210

main04211-71010i1YJ..YM20,25198210-198303

main04211-71011i1YJ..YM20,25198303-198609

main04211-72010i2YU..YM21198210-198303

main04211-72011i2YU..YM21198303-198508

21100LGASKET KIT, CARBURETOR

main04212-13022i4KJ..KM20197910-198210

main04212-13060i4KJ..KM21198210-198609

main04212-18020i13TU..TM20..3FC198101-198210

main04212-28030i13TU..TM20197910-198004

main04212-28031i13TU..TM20..MTM198004-198210

main04212-71010i1YJ,2YU..YM2#198210-198303

main04212-71020i1YJ,2YU..YM2#198303-198609

21673CAP, IDLE LIMIT

main21673-13280i1YJ,2YU..YM2#; 4KJ..KM2#198206-198609

main21673-38020i13TU..TM20197910-198210

21911GASKET, CARBURETOR

main21911-26010×2i13TU..TM20197910-198210

21912INSULATOR, CARBURETOR HEAT

main21912-13030i4KJ..KM20198108-198112

main21912-13031i4KJ..KM2#198112-198609

main21912-24090i4KJ..KM20197910-198108

main21912-26030i13TU..TM20197910-198210

main21912-71010i1YJ,2YU..YM2#198210-198408

main21912-72010i1YJ,2YU..YM2#198408-198609

9017008008

main90170-08008

9411040800

main94110-40800

8 parts on this diagram · 1 diagram in section
