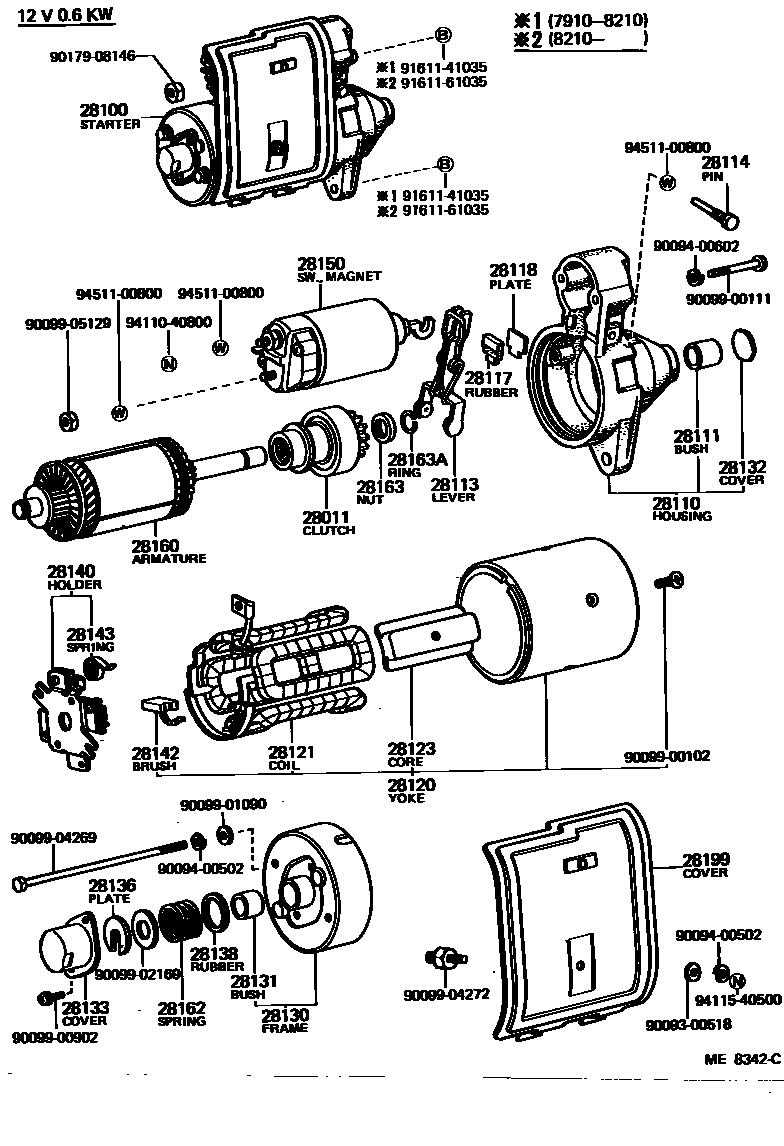

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28011CLUTCH SUB-ASSY, STARTER

main28011-13060i4KJ..KM21198608

12V 0.6KW

main28011-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28011-22022i4KJ..KM2#197910-198608

12V 0.6KW

sub28011-22020

main28011-26042i13TU,1YJ,2YU..TM20,YM2#197910

12V 1.0KW

main28011-64010i1C,2C..CM2#198210

12V 1.4KW

sub28011-67030

main28011-64020i1C..CM2#198210-198410

12V 2.0KW

28100STARTER ASSY

main28100-13020i4KJ..KM2#197910

main28100-13060i4KJ..KM21198508

sub28100-13061

main28100-24031i4KJ..KM2#197910-198508

main28100-26070i13TU..TM20197910-198008

main28100-26142i13TU..TM20197910-198008

main28100-27020i13TU..TM20198008-198210

main28100-27050i13TU..TM20198008-198210

main28100-64010i1C..CM2#198210-198309

main28100-64020i1C..CM2#198210-198410

sub28100-64040

main28100-64100i1C,2C..CM2#198309

main28100-72010i1YJ,2YU..YM2#198210

28110HOUSING ASSY, STARTER DRIVE

main28110-13020i4KJ..KM2#197910

12V 0.8KW

main28110-13060i4KJ..KM21198608

12V 0.6KW

main28110-24010i4KJ..KM2#197910-198608

12V 0.6KW

main28110-26070i13TU..TM20197910-198008

12V 1.0KW

main28110-26141i13TU..TM20197910-198008

12V 0.8KW

main28110-27020i13TU..TM20198008-198210

12V 0.8KW

main28110-27030i13TU..TM20198008-198210

12V 1.0KW

main28110-64070i1C,2C..CM2#198309

12V 1.4KW

main28110-72010i1YJ,2YU..YM2#198210

12V 1.0KW

main28115-64010i1C..CM2#198210-198309

12V 1.4KW

main28115-64020i1C..CM20..V4D;1C,2C..CM2#..TR,WG198410

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4KJ..KM2#198108-198608

12V 0.6KW,0.8KW

main90099-10158i4KJ..KM21198608

12V 0.6KW

28113LEVER, STARTER PINION DRIVE

main28113-13060i4KJ..KM21198608

12V 0.6KW

main28113-15011i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28113-41011i4KJ..KM2#197910-198608

12V 0.6KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i4KJ..KM2#197910-198608

12V 0.6KW

28117RUBBER(FOR STARTER YOKE)

main28117-15050i4KJ..KM2#197910-198608

12V 0.6KW

main90099-06031i1C..CM2#198210-198309

12V 1.4KW

main90099-14064i1C,2C..CM2#198309

12V 1.4KW

28118PLATE(FOR STARTER YOKE)

main28118-41013i4KJ..KM2#197910-198608

12V 0.6KW

28120YOKE ASSY, STARTER

main28120-13060i4KJ..KM21198608

12V 0.6KW

main28120-15090i1C,2C..CM2#198309

12V 1.4KW

main28120-24030i4KJ..KM2#197910-198608

12V 0.6KW

main28120-26070i13TU,1YJ,2YU..TM20,YM2#197910

12V 1.0KW

sub28120-26071

main28120-26140i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28120-34030i1C..CM2#198210-198309

12V 1.4KW

main28120-64020i1C..CM20..V4D;1C,2C..CM2#..TR,WG198410

12V 2.0KW

28121COIL, STARTER FIELD

main28121-22011i4KJ..KM2#197910-198608

12V 0.6KW

sub28121-22012

28123CORE, STARTER POLE

main28123-10011×4i4KJ..KM2#197910-198608

12V 0.6KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13020i4KJ..KM2#197910

12V 0.8KW

main28130-13060i4KJ..KM21198608

12V 0.6KW

main28130-21011i4KJ..KM2#197910-198608

12V 0.6KW

main28130-26070i13TU..TM20197910-198210

12V 1.0KW

main28130-37010i13TU..TM20197910

12V 0.8KW

main28130-64100i1C,2C..CM2#198309

12V 1.4KW

main28130-72010i1YJ,2YU..YM2#198210

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i4KJ..KM2#197910-198608

STD,12V 0.6KW

main90099-00157i4KJ..KM21198608

12V 0.6KW

main90099-10039i4KJ..KM2#197910-198608

U/S 0.3,12V 0.6KW

main90099-10040i4KJ..KM2#197910-198608

U/S 0.5,12V 0.6KW

main90099-10134i4KJ..KM2#198108

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-24030i4KJ..KM2#198206-198608

12V 0.6KW

main28166-41011i4KJ..KM20197910-198206

12V 0.6KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

sub28132-15011

main28132-41011i4KJ..KM2#197910-198608

12V 0.6KW

28136PLATE, STARTER LOCK

main28136-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28136-41011i4KJ..KM2#197910-198608

12V 0.6KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28138-41011i4KJ..KM2#197910-198608

12V 0.6KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28140-15090i1C,2C..CM2#198309

12V 1.4KW

main28140-22011i4KJ..KM2#197910-198608

12V 0.6KW

main28140-26070i13TU,1YJ,2YU..TM20,YM2#197910

12V 1.0KW

main28140-34030i1C..CM2#198210-198309

12V 1.4KW

main28140-54070i1C..CM2#198210-198410

12V 2.0KW

28142BRUSH, STARTER

main28142-10011×2i4KJ..KM2#197910-198608

12V 0.6KW

main28142-10020×4i4KJ..KM21198608

12V 0.6KW

28143SPRING, STARTER BRUSH

main28143-10020×4i4KJ..KM21198608

12V 0.6KW

main28143-40010×4i4KJ..KM2#197910-198608

12V 0.6KW

sub28143-40040

main90099-17112×4i13TU,1C,2C,1YJ,2YU..CM2#,TM20,YM2#197910

12V 1.0KW,1.4KW

main90099-17115×4i1C..CM20..V4D;1C,2C..CM2#..TR,WG198410

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4KJ..KM21198608

12V 0.6KW

sub28150-10021

main28150-15011i4KJ..KM20197910-197912

12V 0.8KW

main28150-15012i13TU..TM20198003-198210

12V 0.8KW

main28150-24060i4KJ..KM2#197910-198608

12V 0.6KW

sub28150-24061

main28150-26070i13TU..TM20197910-198008

12V 1.0KW

main28150-27050i13TU..TM20198008-198108

12V 1.0KW

main28150-27051i13TU..TM20198108-198210

12V 1.0KW

main28150-34080i1YJ,2YU..YM2#198210

12V 1.0KW

main28150-37010i4KJ..KM21198303

12V 0.8KW

sub28150-37011

main28150-64010i1C..CM2#198210-198309

12V 1.4KW

main28150-64020i1C..CM2#198210-198410

12V 2.0KW

main28150-64070i1C,2C..CM2#198309

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-10020i4KJ..KM21198608

12V 0.6KW

main28160-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28160-15090i1C,2C..CM2#198309

12V 1.4KW

sub28160-15091

main28160-22011i4KJ..KM2#197910-198608

12V 0.6KW

main28160-26050i1C..CM2#198210-198309

12V 1.4KW

main28160-26070i13TU,1YJ,2YU..TM20,YM2#197910

12V 1.0KW

sub28160-26071

main28160-54070i1C..CM2#198210-198410

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i13TU,4KJ..KM2#,TM20197910

12V 0.8KW

main28162-41011i4KJ..KM2#197910-198608

12V 0.6KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10020×2i4KJ..KM21198608

12V 0.6KW

sub28163-10021

main28163-40011i4KJ..KM21198608

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i13TU,4KJ..KM2#,TM20197910-198608

12V 0.6KW,0.8KW

main90099-07124i4KJ..KM21198608

12V 0.6KW

28199COVER, STARTER

main28159-13060i4KJ..KM21198608

12V 0.6KW

main28199-13010i13TU..TM20198011-198108

12V 1.0KW

main28199-13011i13TU..TM20198108-198210

12V 1.0KW

main28199-15110i4KJ..KM21198304

12V 0.8KW

main28199-24030i4KJ..KM2#197910-198608

12V 0.6KW

main28199-26070i13TU..TM20197910-198008

12V 1.0KW

main28199-26131i13TU,4KJ..KM2#,TM20197910-198304

12V 0.8KW

main28199-27050i13TU..TM20198008-198011

12V 1.0KW

9009300518

main90093-00518

9009400502

main90094-00502

9009400602

main90094-00602

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904269

main90099-04269

9009904272

main90099-04272

9009905129

main90099-05129

9017908146

main90179-08146

9161141035

main91611-41035

9161161035

main91611-61035

9411040800

main94110-40800

9411540500

main94115-40500

9451100800

main94511-00800

43 parts on this diagram · 7 diagrams in section
