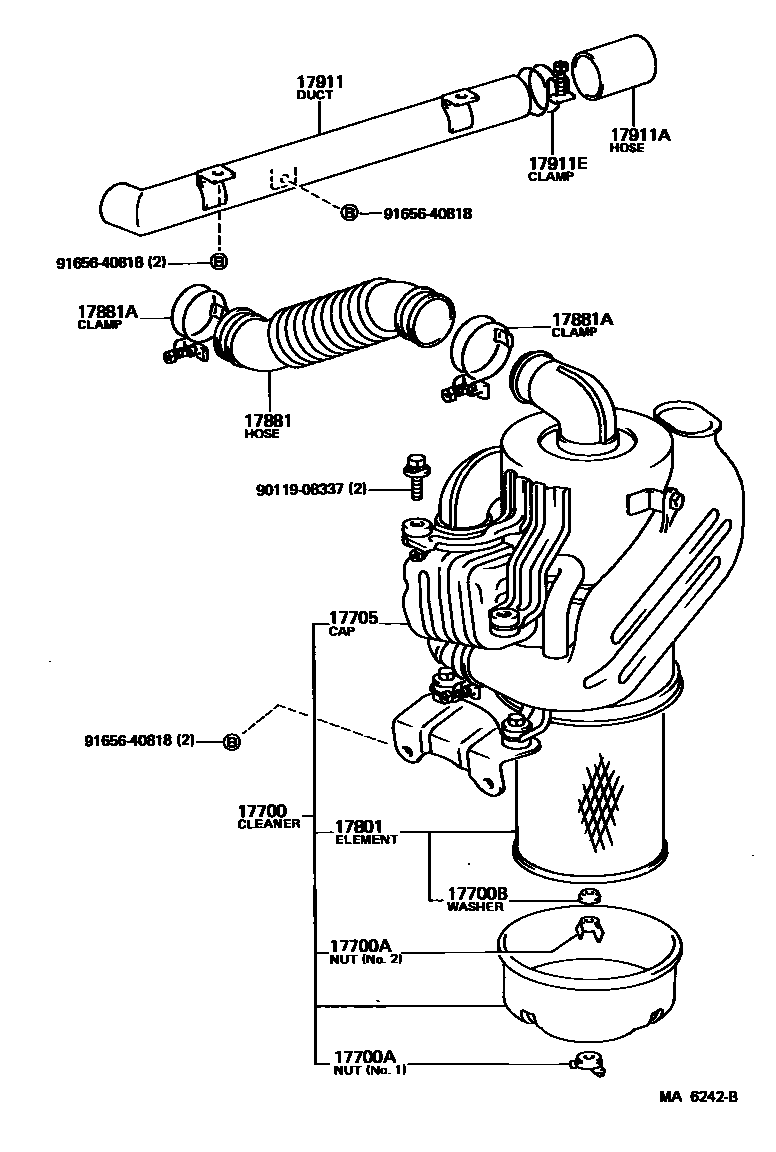

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17700CLEANER ASSY, AIR

main17700-13100i4KJ..KM20197910-198210

main17700-13380i4KJ..KM21..V198210-198508

main17700-13390i4KJ..KM21..T2,T3;4KJ..KM21..ST..IV198310-198405

LPG PACKAGE,COLD SPEC

main17700-13470i4KJ..KM21..V198210-198508

W/HOT AIR INTAKE

main17700-13480i4KJ..KM21..TR198210-198609

W/HOT AIR INTAKE

main17700-18011i13TU..TM20197910-198101

sub17700-18012

main17700-18040i13TU..TM20198101-198210

main17700-64050i1C..CM20..V,WG198210-198508

sub17700-64070

main17700-64060i1C..CM2#..TR198210-198508

main17700-64190i1C,2C..CM2#198508-198609

main17700-71020i1YJ,2YU..YM20,21198210-198508

main17700-71030i1YJ..YM25198210-198609

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i1C..CM20..V,WG198210-198508

NO.1

main94271-00800i1C..CM20..V,WG198210-198508

NO.2

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i1C..CM20..V,WG198210-198508

17705CAP SUB-ASSY, AIR CLEANER

main17705-13020i4KJ..KM20197910-198210

main17705-13080i4KJ..KM21198210-198609

W/HOT AIR INTAKE

main17705-13100i4KJ..KM21..T2,T3;4KJ..KM21..ST..IV198310-198609

LPG PACKAGE,COLD SPEC

main17705-18011i13TU..TM20197910-198101

main17705-18012i13TU..TM20198101-198210

main17705-64040i1C..CM20..V,WG198210-198508

main17705-64050i1C..CM2#..TR198210-198508

main17705-71010i1YJ,2YU..YM2#198210-198609

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13030i4KJ..KM21198210-198609

main17801-23020i4KJ..KM20197910-198210

main17801-41082i13TU..TM20197910-198210

sub17801-45010

main17801-54050i1C,2C..CM2#..TR198210-198609

main17801-64030i1C..CM20..V,WG198210-198508

17881HOSE, AIR CLEANER, NO.1

main17881-13040i4KJ..KM20197910-198210

main17881-13090i4KJ..KM21..V198210-198508

main17881-13110i4KJ..KM21..TR198210-198609

sub17881-13100

main17881-64030i1C..CM20..V,WG198210-198508

main17881-64040i1C..CM2#..TR198210-198508

main17881-64130i1C,2C..CM2#198508-198609

main17881-71030i2YU..YM21198210-198508

main17881-71040i1YJ..YM20198210-198508

main17881-71050i1YJ..YM25198210-198609

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-78001×2i4KJ..KM20197910-197911

main90460-78002×2i4KJ..KM20197911-198210

sub90460-78006

main96111-10630i1C..CM2#..TS198210-198307

INTAKE MANIFOLD SIDE

main96111-10670i1C..CM20..V,WG198210-198508

INTAKE MANIFOLD SIDE

main96111-10690×2i1C,2C..CM2#198508-198609

main96111-10710i1C..CM2#..TR198307-198508

AIR CLEANER SIDE

main96111-10730i1C..CM20..V,WG198210-198307

AIR CLEANER SIDE

17911DUCT, COOL AIR INTAKE, NO.1

main17760-95701i1C..CM20..V,WG198210-198508

main17761-95704i1C..CM2#..TR198210-198508

main17761-95707i1YJ,2YU..YM20,21198210-198609

main17761-95709i1C,2C..CM2#198508-198609

17911AHOSE, COOL AIR INTAKE, NO.1

main17813-95700i1C..CM20..V,WG198210-198508

main17881-95702i1C,2C..CM2#..TR198210-198609

17911ECLAMP, COOL AIR INTAKE HOSE, NO.1

main96111-10620×2i1C..CM2#198210-198212

main96111-10650×2i1C..CM2#198212-198508

main96111-10690×2i1C,2C..CM2#198508-198609

9011908337

main90119-08337

9165640818

main91656-40818

12 parts on this diagram · 9 diagrams in section
