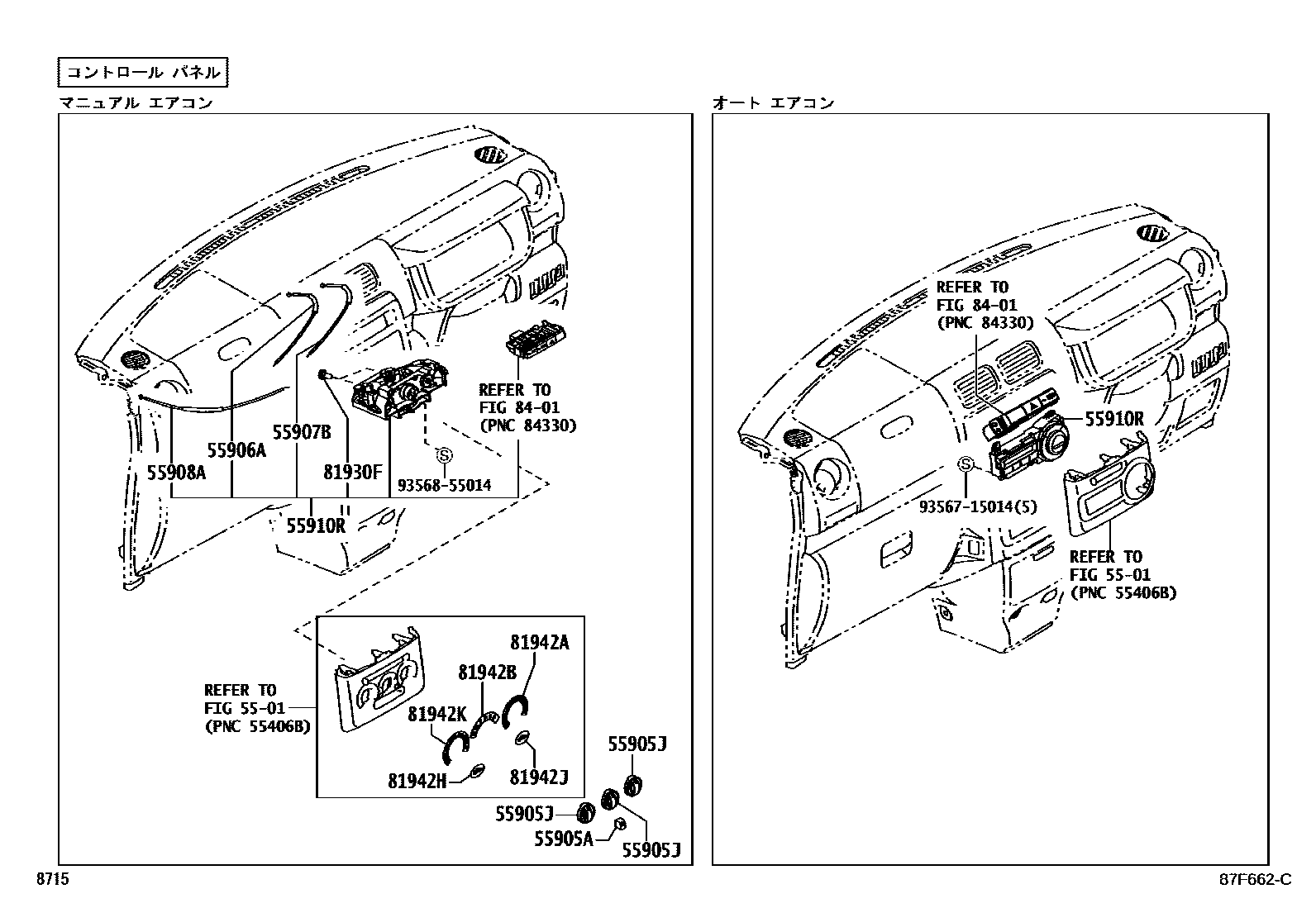

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55905AKNOB, HEATER CONTROL
55905JKNOB SUB-ASSY, CONTROL
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55910RCONTROL ASSY, HEATER
129M ZAICHAKU COLOR,TRIM1#
81930FBULB, HEATER CONTROL INDICATOR LAMP
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
81942HSHEET, HEATER CONTROL NAME, NO.3
81942JSHEET, HEATER CONTROL NAME, NO.4
81942KSHEET, HEATER CONTROL NAME, NO.5
8401
9356715014
main93567-15014
9356855014
main93568-55014
16 parts on this diagram · 4 diagrams in section
