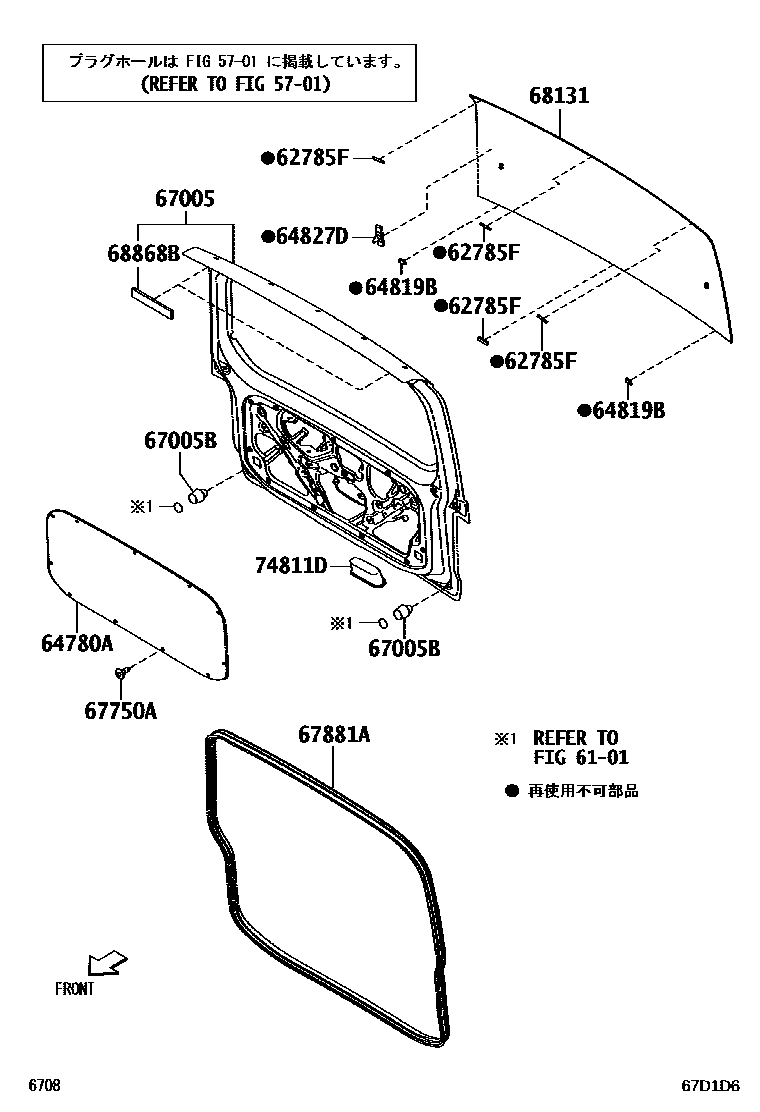

BACK DOOR PANEL & GLASS

6101

62785FSPACER, BACK DOOR GLASS

main64818-87704iL575,585..CTMG,CTMX,L,X201109-201306

64780APANEL ASSY, BACK DOOR TRIM

main64780-B2100-B0iL575,585201109-201306

GRAY,TRIM1#

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-B2010iL575,585..CTMG,CTMX,L,X201109-201306

64827DCLIP, BACK WINDOW GLASS

main64827-87701iL575,585..CTMG,CTMX,L,X201109-201306

67005PANEL SUB-ASSY, BACK DOOR

main67005-B2701iL575,585..L,X201109-201205

sub67005-B2702

main67005-B2702iL575,585..L,X201205-201306

main67005-B2711iL575,585..CTMRS201109-201205

sub67005-B2712

main67005-B2712iL575,585..CTMG,CTMRS,CTMX201205-201306

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41263iL575,585201109-201306

67750ACLIP(FOR BACK DOOR TRIM)

main90044-67579-B0iL575,585201109-201604

DK.GRAY,TRIM1#

main90044-67609-B0iL575,585201605-201611

DK.GRAY,TRIM1#

sub90044-67609

main90044-67609-C0iL575,585201611

BLACK,TRIM1#

sub90044-67609

67881AWEATHERSTRIP, BACK DOOR

main67881-B2220iL575,585..CTMG,CTMX,L,X201109-201209

sub67881-B2221

main67881-B2221iL575,585201210-201306

68131GLASS, BACK DOOR

main68131-B2280iL575,585..CTMRS201109-201205

main68131-B2410iL575,585201204-201404

68868BSEAL, BACK DOOR HINGE

main68868-B2030iL575,585..CTMG,CTMX,L,X201109-201306

74811DHANDLE, DOOR PULL

main74811-13010-C0iL575,585201109-201306

BLACK,TRIM1#

sub74811-13010

12 parts on this diagram · 1 diagram in section
