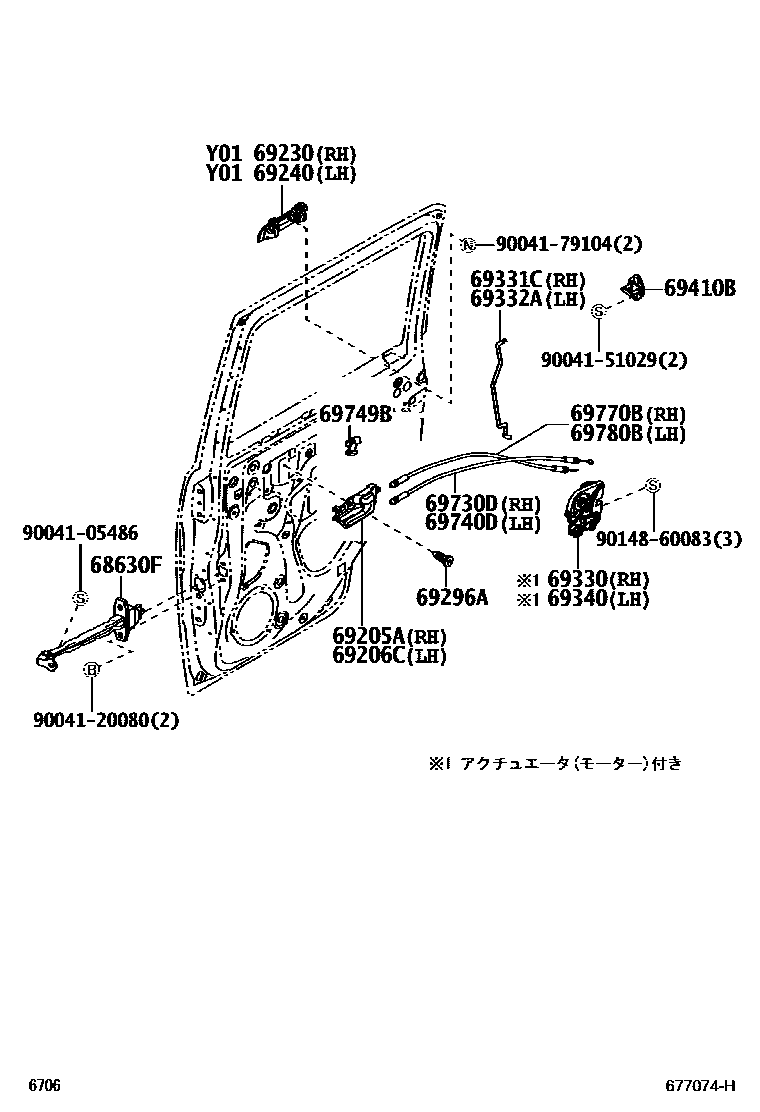

REAR DOOR LOCK & HANDLE

68630FCHECK ASSY, REAR DOOR

main68630-B2111iL575,585201109-201312

sub68630-B2112

main68630-B2112iL575,585201401

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM1#

sub69270-B2011

main69270-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM10

sub69270-B2011

main69270-B2010-B4iL575,585..X201109-201301

DK.GRAY,TRIM11

sub69270-B2011

main69270-B2011-B3iL575,585..X201302-201306

WARM GRAY,TRIM1#

main69270-B2011-B3iL575,585..X201302-201306

WARM GRAY,TRIM10

main69270-B2011-B4iL575,585..X201302-201306

DK.GRAY,TRIM11

main69270-B2020iL575,585..CTMG,CTMRS,CTMX201109-201212

sub69270-B2021

main69270-B2021-B0iL575,585..X201306

WARM GRAY,TRIM10

main69270-B2021-B1iL575,585..CTMG,CTMRS,CTMX201301-201306

DK.GRAY,TRIM1#

main69270-B2021-B1iL575,585..CTMG,CTMRS,CTMX201306

DK.GRAY,TRIM11

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM1#

sub69280-B2011

main69280-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM10

sub69280-B2011

main69280-B2010-B4iL575,585..X201109-201301

DK.GRAY,TRIM11

sub69280-B2011

main69280-B2011-B3iL575,585..L201302-201306

WARM GRAY,TRIM1#

main69280-B2011-B3iL575,585..X201302-201306

WARM GRAY,TRIM10

main69280-B2011-B4iL575,585..X201302-201306

DK.GRAY,TRIM11

main69280-B2020iL575,585..CTMG,CTMRS,CTMX201109-201212

sub69280-B2021

main69280-B2021-B0iL575,585..X201306

WARM GRAY,TRIM10

main69280-B2021-B1iL575,585..CTMG,CTMRS,CTMX201301-201306

DK.GRAY,TRIM1#

main69280-B2021-B1iL575,585..CTMG,CTMRS,CTMX201306

DK.GRAY,TRIM11

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-B2150-A0iL575,585..L,X201109-201306

main69210-B2150-S8iL575,585..L,X201109-201306

main69230-B2010-C0iL575,585..L,X201109-201306

main69230-B2010-D3iL575,585..L,X201109-201306

main69230-B2010-D5iL575,585..L,X201306-201701

main69230-B2010-E2iL575,585..L,X201109-201306

main69230-B2010-E4iL575,585..L,X201404-201701

main69230-B2010-E4iL575,585..L,X201109-201404

main69230-B2010-G2iL575,585..L,X201306-201701

main69230-B2010-J3iL575,585..L,X201109-201306

main69230-B2010-J3iL575,585..L,X201306-201701

main69230-B2010-J4iL575,585..L,X201306-201701

main69230-B2020iL575,585..CTMG,CTMRS,CTMX201109-201207

sub69230-B2021

main69230-B2021iL575,585..CTMG,CTMRS,CTMX201208-201701

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-B2150-A0iL575,585..L,X201109-201701

main69210-B2150-S8iL575,585..L,X201109-201306

main69230-B2010-C0iL575,585..L,X201109-201701

main69230-B2010-D3iL575,585..L,X201109-201701

main69230-B2010-E2iL575,585..L,X201109-201306

main69240-B2010-D5iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2010-E4iL575,585..L,X201109-201404

sub69230-B2010

main69240-B2010-E4iL575,585..L,X201404-201701

sub69230-B2010

main69240-B2010-G2iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2010-J3iL575,585..L,X201109-201306

sub69230-B2010

main69240-B2010-J3iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2010-J4iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2020iL575,585..CTMG,CTMRS,CTMX201109-201207

sub69240-B2021

main69240-B2021iL575,585..CTMG,CTMRS,CTMX201208-201701

69296ASCREW, DOOR INSIDE HANDLE

main90041-67041iL575,585201109-201701

69330LOCK ASSY, REAR DOOR, RH

main69330-B2150iL575,585201109-201701

69331CROD, REAR DOOR LOCK OPEN, RH

main69331-B2060iL575,585..CTMG,CTMX,L,X201109-201306

69332AROD, REAR DOOR LOCK OPEN, LH

main69332-B2060iL575,585..CTMG,CTMX,L,X201109-201306

69340LOCK ASSY, REAR DOOR, LH

main69340-B2170iL575,585201109-201701

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-B2030iL575,585..CTMG,CTMX,L,X201109-201306

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-B2130iL575,585..CTMG,CTMX,L,X201109-201306

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-B2130iL575,585..CTMG,CTMX,L,X201109-201306

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iL575,585..CTMG,CTMX,L,X201109-201306

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-B2120iL575,585..CTMG,CTMX,L,X201109-201306

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-B2110iL575,585..CTMG,CTMX,L,X201109-201306

9004105486

main90041-05486

9004120080

main90041-20080

9004151029

main90041-51029

9004179104

main90041-79104

9014860083

main90148-60083

21 parts on this diagram · 1 diagram in section
