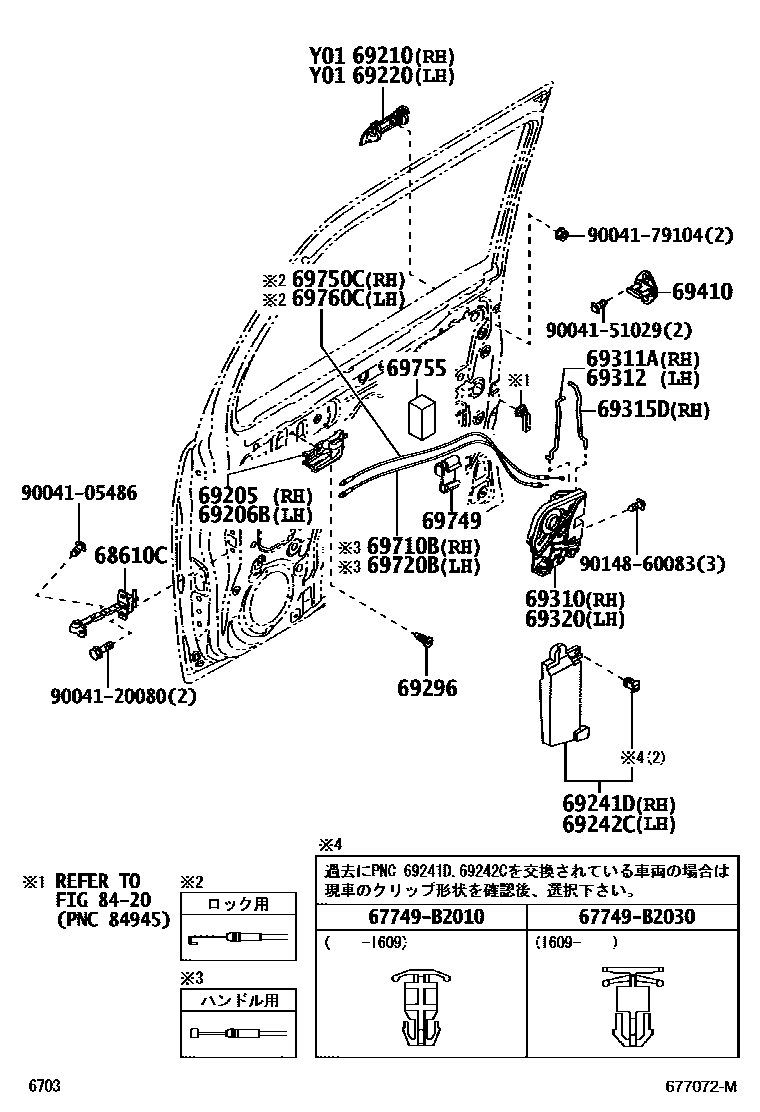

FRONT DOOR LOCK & HANDLE

68610CCHECK ASSY, FRONT DOOR

main68610-B2121iL575,585201109-201209

sub68610-B2122

main68610-B2122iL575,585201210-201312

sub68610-B2123

main68610-B2123iL575,585201401

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-B2010-B3iL575,585..X201109-201301

WARM GRAY,TRIM10

sub69270-B2011

main69270-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM1#

sub69270-B2011

main69270-B2010-B4iL575,585..X201109-201301

DK.GRAY,TRIM11

sub69270-B2011

main69270-B2011-B3iL575,585..L201302-201306

WARM GRAY,TRIM10

main69270-B2011-B3iL575,585..X201302-201306

WARM GRAY,TRIM1#

main69270-B2011-B4iL575,585..X201302-201306

DK.GRAY,TRIM11

main69270-B2020iL575,585..CTMG,CTMRS,CTMX201109-201212

sub69270-B2021

main69270-B2021-B0iL575,585..X201306

WARM GRAY,TRIM10

main69270-B2021-B1iL575,585..CTMG,CTMRS,CTMX201301-201306

DK.GRAY,TRIM1#

main69270-B2021-B1iL575,585..CTMG,CTMRS,CTMX201306

DK.GRAY,TRIM11

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM10

sub69280-B2011

main69280-B2010-B3iL575,585..L201109-201301

WARM GRAY,TRIM1#

sub69280-B2011

main69280-B2010-B4iL575,585..X201109-201301

DK.GRAY,TRIM11

sub69280-B2011

main69280-B2011-B3iL575,585..L201302-201306

WARM GRAY,TRIM1#

main69280-B2011-B3iL575,585..X201302-201306

WARM GRAY,TRIM10

main69280-B2011-B4iL575,585..X201302-201306

DK.GRAY,TRIM11

main69280-B2020iL575,585..CTMG,CTMRS,CTMX201109-201212

sub69280-B2021

main69280-B2021-B0iL575,585..X201306

WARM GRAY,TRIM10

main69280-B2021-B1iL575,585..CTMG,CTMRS,CTMX201301-201306

DK.GRAY,TRIM1#

main69280-B2021-B1iL575,585..CTMG,CTMRS,CTMX201306

DK.GRAY,TRIM11

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-B2150-A0iL575,585..L,X201109-201306

main69210-B2150-S8iL575,585..L,X201109-201306

main69230-B2010-C0iL575,585..L,X201109-201306

main69230-B2010-D3iL575,585..L,X201109-201306

main69230-B2010-D5iL575,585..L,X201306-201701

main69230-B2010-E2iL575,585..L,X201109-201306

main69230-B2010-E4iL575,585..L,X201404-201701

main69230-B2010-E4iL575,585..L,X201109-201404

main69230-B2010-G2iL575,585..L,X201306-201701

main69230-B2010-J3iL575,585..L,X201306-201701

main69230-B2010-J3iL575,585..L,X201109-201306

main69230-B2010-J4iL575,585..L,X201306-201701

main69230-B2020iL575,585..CTMG,CTMRS,CTMX201109-201207

sub69230-B2021

main69230-B2021iL575,585..CTMG,CTMRS,CTMX201208-201701

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-B2150-A0iL575,585..L,X201109-201701

main69210-B2150-S8iL575,585..L,X201109-201306

main69230-B2010-C0iL575,585..L,X201109-201701

main69230-B2010-D3iL575,585..L,X201109-201701

main69230-B2010-E2iL575,585..L,X201109-201306

main69240-B2010-D5iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2010-E4iL575,585..L,X201109-201404

sub69230-B2010

main69240-B2010-E4iL575,585..L,X201404-201701

sub69230-B2010

main69240-B2010-G2iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2010-J3iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2010-J3iL575,585..L,X201109-201306

sub69230-B2010

main69240-B2010-J4iL575,585..L,X201306-201701

sub69230-B2010

main69240-B2020iL575,585..CTMG,CTMRS,CTMX201109-201207

sub69240-B2021

main69240-B2021iL575,585..CTMG,CTMRS,CTMX201208-201701

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-B2060iL575,585201109-201701

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-B2060iL575,585201109-201701

69296SCREW, DOOR INSIDE HANDLE

main90041-67041iL575,585201109-201701

69310LOCK ASSY, FRONT DOOR, RH

main69310-B2280iL575,585201109-201306

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-B2090iL575,585201109-201306

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-B2080iL575,585..CTMG,CTMX,L,X201109-201306

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-B2050iL575,585..CTMG,CTMX,L,X201109-201306

69320LOCK ASSY, FRONT DOOR, LH

main69320-B2310iL575,585201109-201306

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-B2030iL575,585..CTMG,CTMX,L,X201109-201306

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-B2130iL575,585201109-201701

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-B2130iL575,585201109-201701

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iL575,585..CTMG,CTMX,L,X201109-201306

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-B2140iL575,585201109-201701

69755SILENCER, FRONT DOOR LOCK LINK

main69759-87207iL575,585..CTMG,CTMX,L,X201109-201306

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-B2140iL575,585201109-201701

8420

67749B2010CLIP, DOOR TRIM MOULDING

main67749-B2010

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030

9004105486

main90041-05486

9004120080

main90041-20080

9004151029

main90041-51029

9004179104

main90041-79104

9014860083

main90148-60083

28 parts on this diagram · 1 diagram in section
