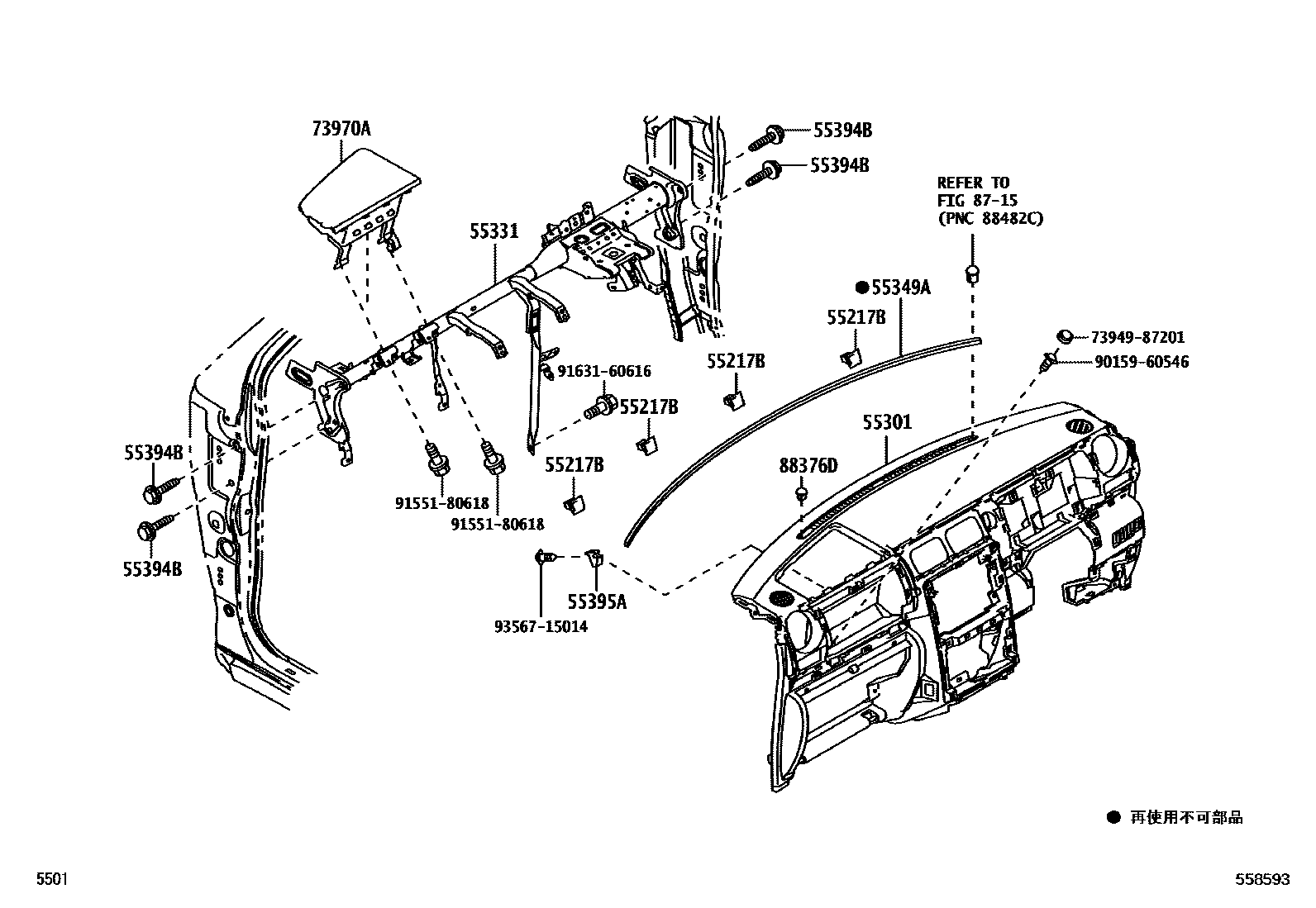

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1�������� 0003 1�������� 0004 1��������

55217BRETAINER, DASH PANEL SILENCER

main55217-B2011×4iL575,585201306

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B2370-B2iL575,585..CTMG,CTMRS,CTMX; L575,585..X201109-201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM11

main55311-B2370-B3iL575,585..L; L575,585..X201109-201306

WARM GRAY,TRIM1#; WARM GRAY,TRIM10

main55311-B2371-B2iL575,585..CTMG,CTMRS,CTMX; L575,585..L,X201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM11

main55311-B2371-B3iL575,585..L,X201306

WARM GRAY,TRIM10

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B2270iL575,585..CTMG,CTMX,L,X201109-201204

main55305-B2271iL575,585201306

55349ACUSHION, INSTRUMENT PANEL

main55349-B2030iL575,585..CTMG,CTMX,L,X201109-201204

55394BBOLT, INSTRUMENT PANEL

main55394-B2040×4iL575,585..CTMG,CTMX,L,X201109-201204

main90041-20313×4iL575,585201509

55395ARETAINER, INSTRUMENT PANEL CLAMP

main55395-B2010iL575,585..CTMG,CTMX,L,X201109-201204

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B2210-B0iL575,585..CTMG,CTMRS,CTMX; L575,585..L,X201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM11

main73970-B2210-B1iL575,585..L; L575,585..X201109-201306

WARM GRAY,TRIM1#; WARM GRAY,TRIM10

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88376DCAP, BLIND

main88376-B2010iL575,585..CTMG,CTMX,L,X201109-201204

7394987201CAP

main73949-87201

9015960546

main90159-60546

9155180618

main91551-80618

9163160616

main91631-60616

9356715014

main93567-15014

14 parts on this diagram · 4 diagrams in section
