Toyota PIXIS SPACE — SPARE WHEEL CARRIER

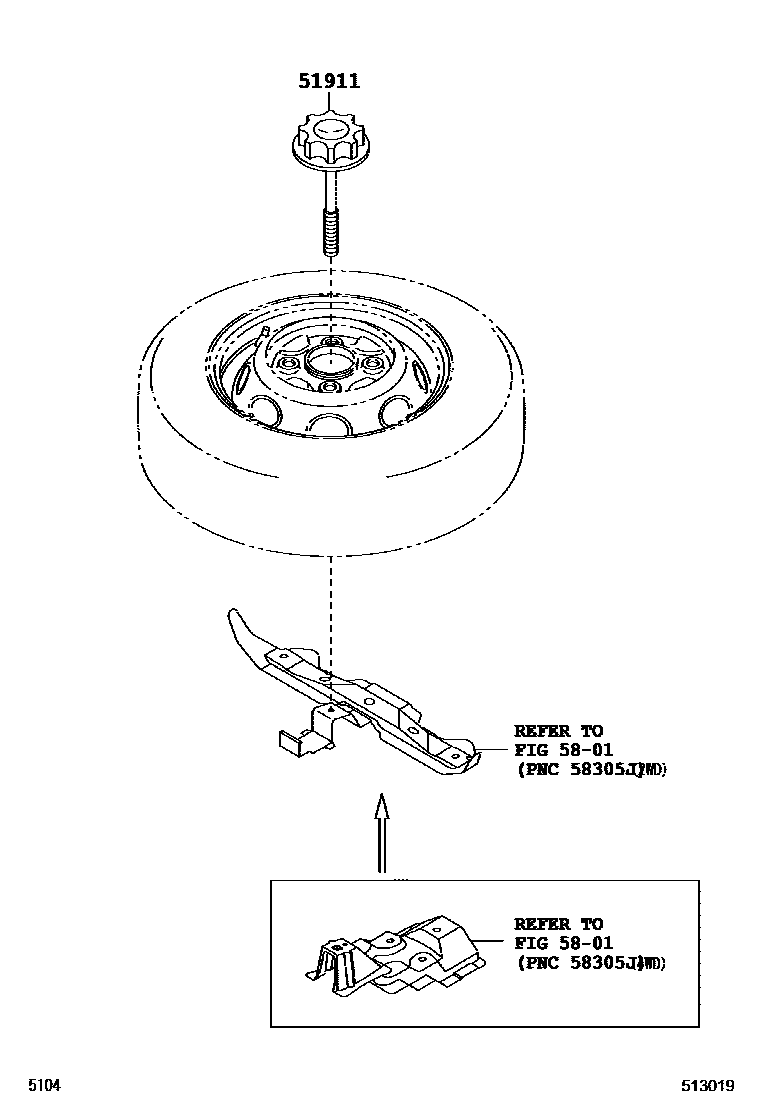

Parts diagram
51911BOLT ASSY, SPARE WHEEL MOUNTING
51911-B2010
51942-B2010
51942-B2020
51911-87207
5801FLOOR PAN & LOWER BACK PANEL
→ Go to FIG 58-01

2 parts on this diagram · 1 diagram in section

SPARE WHEEL CARRIER for Toyota PIXIS SPACE

This section contains 2 genuine Toyota parts for the SPARE WHEEL CARRIER system of the Toyota PIXIS SPACE. Key components include: BOLT ASSY, SPARE WHEEL MOUNTING, FLOOR PAN & LOWER BACK PANEL.
