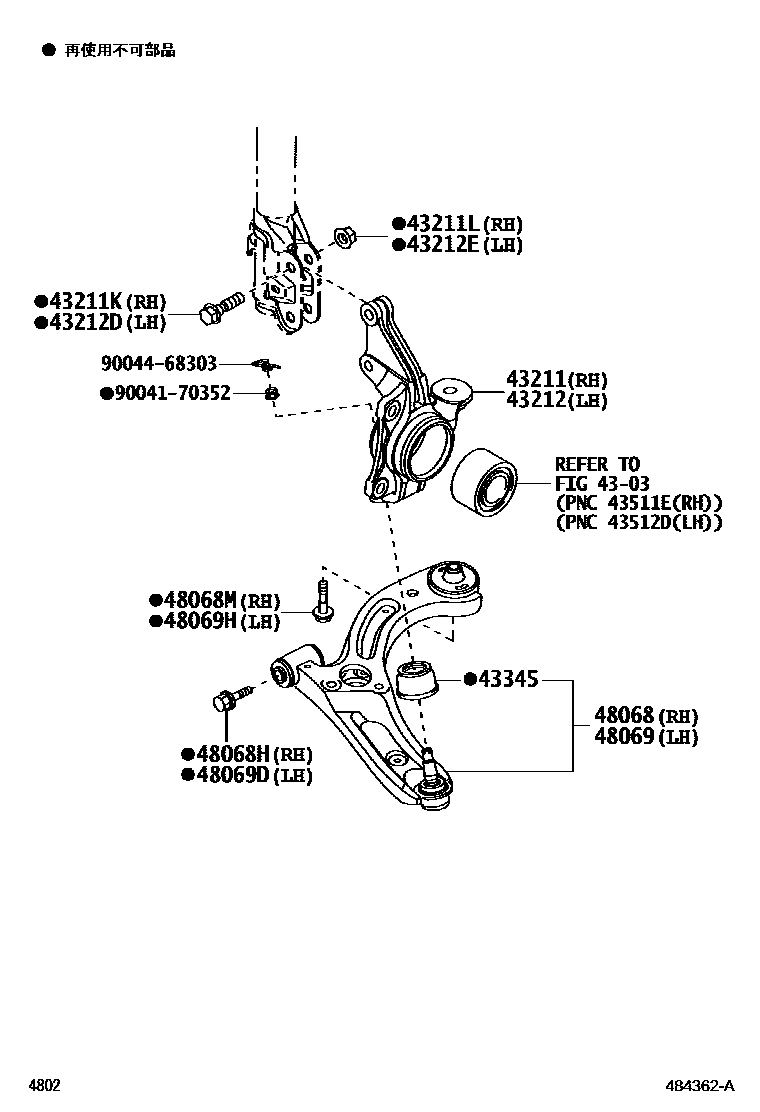

FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-B2020iL575,585201109-201112

main43211-B2021iL575,585201201-201306

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652×2iL575,585201109-201306

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70393×2iL575,585201109-201306

43212KNUCKLE, STEERING, LH

main43212-B2020iL575,585201109-201112

main43212-B2021iL575,585..CTMG,CTMX,L,X201201-201204

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652×2iL575,585201109-201306

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70393×2iL575,585201109-201306

43345COVER, LOWER BALL JOINT DUST

main43345-B2010×2iL575,585201109-201306

main43345-B2011×2iL575,585201602

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B2031iL575,585..CTMRS201109-201306

main48068-B2041iL575,585..CTMG,CTMX,L,X201109-201306

main48068-B2080iL575,585..CTMG,CTMX,L,X201306

main48068-B2090iL575,585..CTMRS201306

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-20192iL575,585..CTMG,CTMX,L,X201109-201204

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05388iL575,585201109-201204

main90041-05475iL575,585201205-201306

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B2031iL575,585..CTMRS201109-201306

main48069-B2041iL575,585..CTMG,CTMX,L,X201109-201306

main48069-B2070iL575,585..CTMG,CTMX,L,X201306

main48069-B2170iL575,585..CTMRS201306

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-20192iL575,585201306

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05388iL575,585201109-201204

main90041-05475iL575,585201205-201306

9004170352

main90041-70352

9004468303

main90044-68303

16 parts on this diagram · 1 diagram in section
