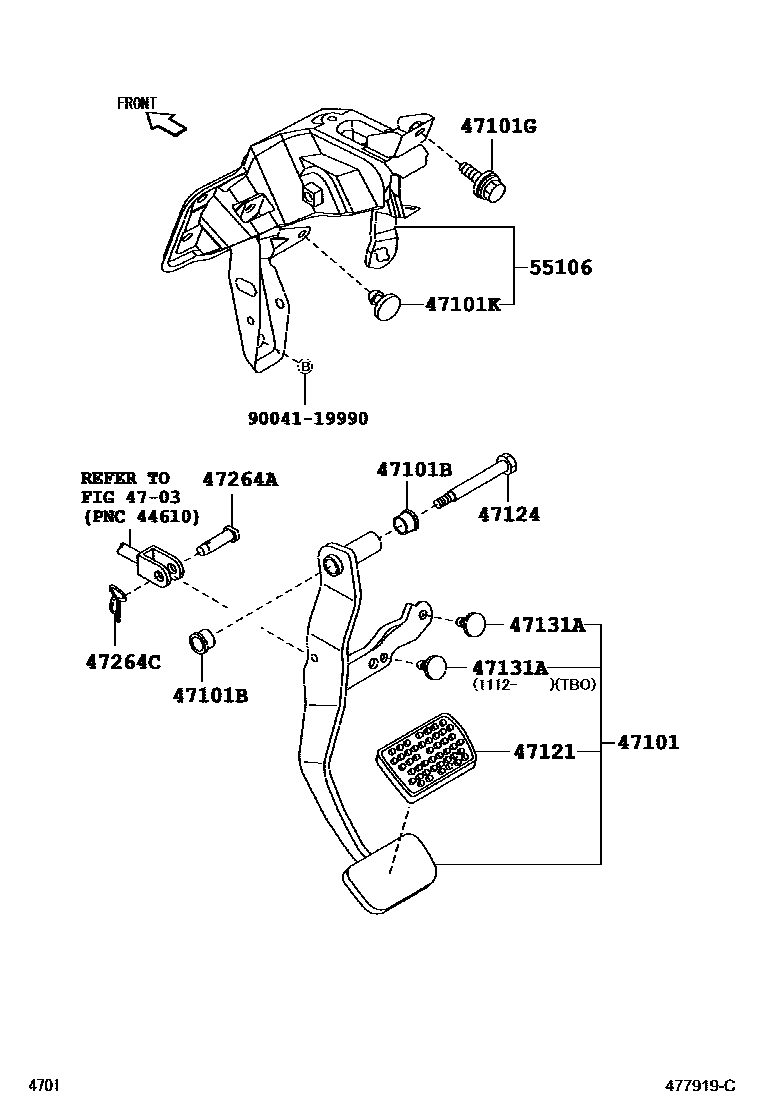

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B2220iL575,585..CTMRS201109-201205

main47110-B2280iL575,585..CTMG,CTMX,L,X201109-201204

main47110-B2370iL575,585..PS2201204-201306

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iL575,585201306

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iL575,585..CTMG,CTMX,L,X201109-201204

47101KCUSHION(FOR PARKING LOCK CABLE)

main90045-40158iL575,585..CTMRS201109-201205

47121PAD, BRAKE PEDAL

main47121-87202iL575,585..CTMG,CTMX,L,X201109-201204

47124SHAFT, BRAKE PEDAL

main31324-B2010iL575,585..PS2201109-201306

47131ACUSHION(FOR BRAKE PADAL STOPPER)

main90045-40158iL575,585..CTMG,CTMX,L,X201109-201204

47264APIN(FOR PUSH ROD)

main90042-40151iL575,585201306

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iL575,585..CTMRS201109-201205

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B2180iL575,585..CTMRS201109-201205

main55106-B2280iL575,585..CTMG,CTMX,L,X201109-201204

main55106-B2370iL575,585..PS2201204-201306

9004119990

main90041-19990

12 parts on this diagram · 2 diagrams in section
