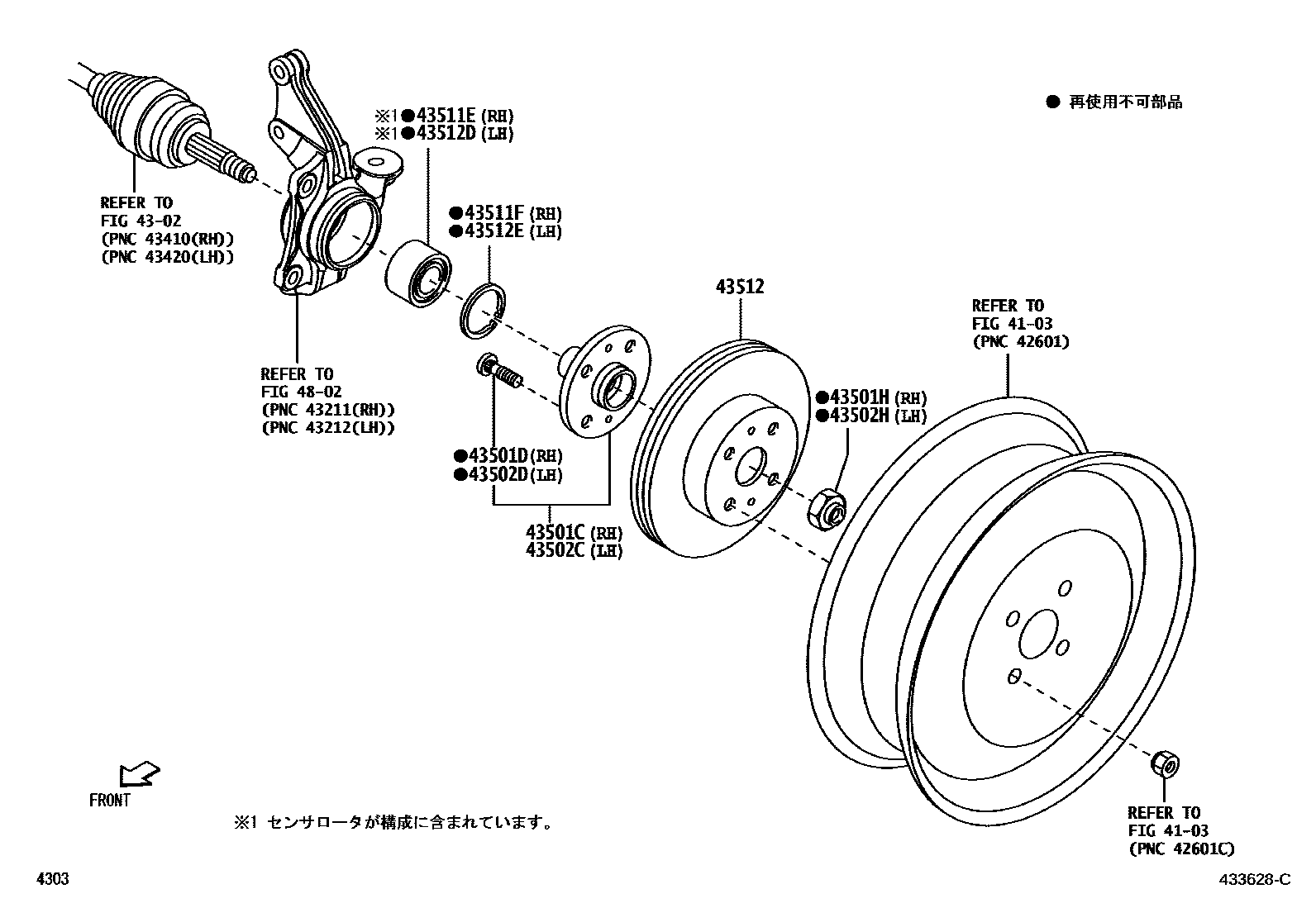

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B5020iL575,585201306

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iL575,585201109-201306

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274iL575,585201109-201306

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B5020iL575,585..CTMG,CTMX,L,X201109-201204

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iL575,585201109-201306

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274iL575,585201109-201306

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B2020iL575,585201306-201405

main43560-B2021iL575,585201406-201701

main43560-B2030iL575,585201306-201701

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163iL575,585201109-201306

43512DISC, FRONT

main43512-B2100×2iL575..PS1;L585..CTMG,CTMX,L,X;L575..(CTMG,CTMX,L,X)..PS2201109-201306

main43512-B2111×2iL585..CTMRS;L575..CTMRS..PS2201109-201209

main43512-B2112×2iL575,585201306

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B2020iL575,585201109-201306

main43560-B2021iL575,585201406-201701

main43560-B2030iL575,585201306-201701

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163iL575,585201109-201306

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

14 parts on this diagram · 1 diagram in section
