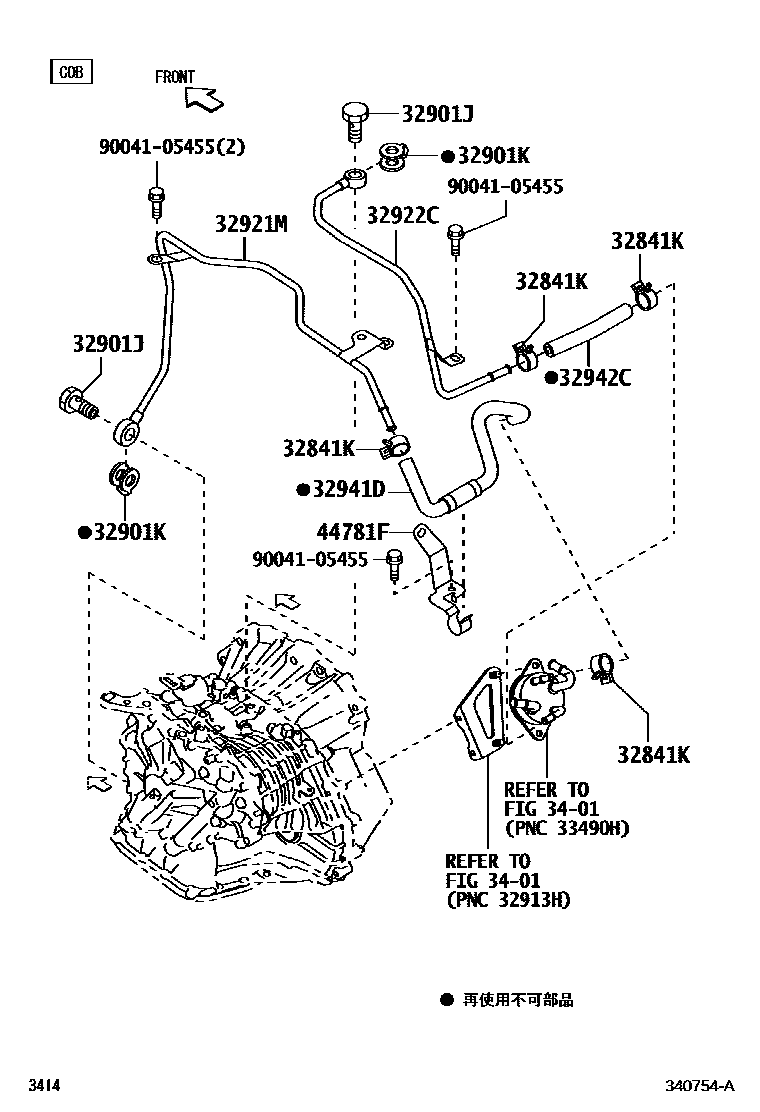

OIL COOLER & TUBE(CVT)

0001 1 0002 1

32841KCLIP, NO.1(FOR OIL COOLER HOSE)

main90044-67590×4iL575,585..CTMG,CTMX,L,X201306

32901JBOLT, UNION(FOR OIL COOLER)

main90044-01081×2iL575,585201306

main90044-01479×2iL575,585..CTMG,CTMX,L,X201109-201201

32901KGASKET(FOR OIL COOLER UNION)

main90044-30329×2iL575,585201109-201306

32921MTUBE, OIL COOLER INLET, NO.1

main32904-B2040iL575,585..CTMRS201306

main32904-B2070iL575,585..CTMG,CTMX,L,X201306

32922CTUBE, OIL COOLER OUTLET, NO.1

main32905-B2070iL575,585201109-201306

main32905-B2080iL575,585..CTMG,CTMX,L,X201306

32941DHOSE, OIL COOLER INLET

main32941-B2120iL575,585..CTMG,CTMX,L,X201306

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-B2130iL575,585..CTMG,CTMX,L,X201306

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

44781FBRACKET, HOSE CLAMP

main44781-B2020iL575,585..CTMG,CTMX,L,X201306

9004105455

main90041-05455

10 parts on this diagram · 2 diagrams in section
