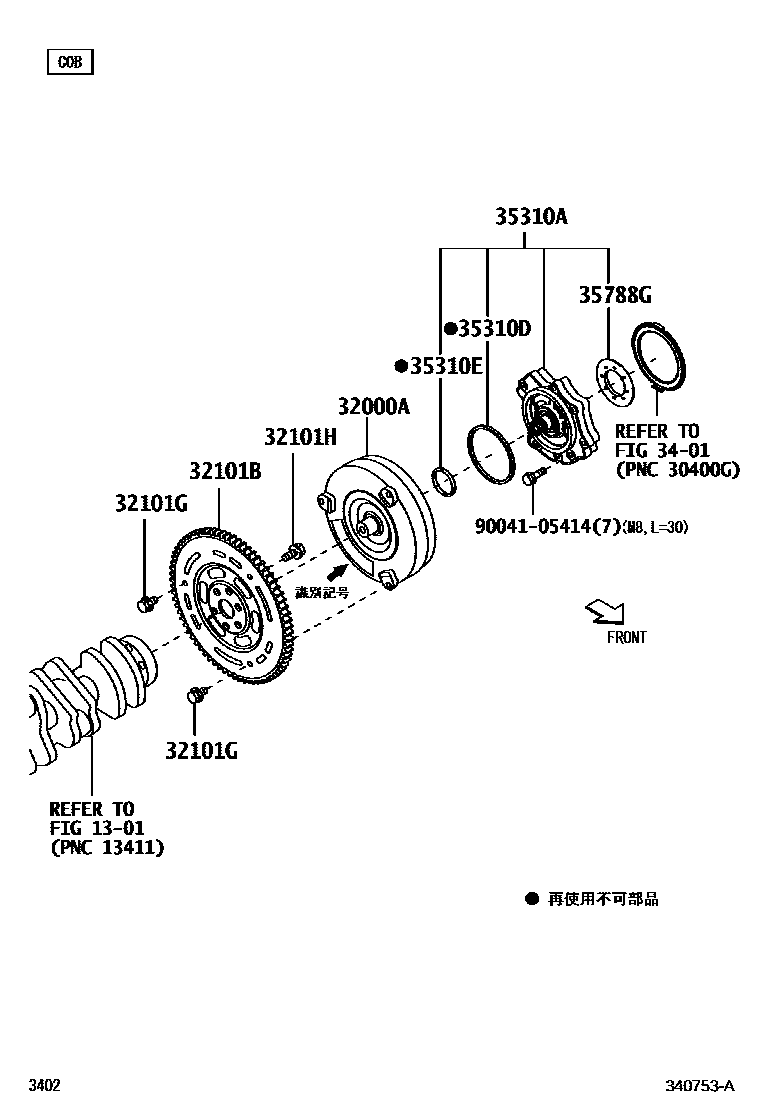

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B2090iL575,585..CTMG,CTMX,L,X201408

main32000-B2100iL575,585..CTMRS201109-201205

main32000-B2180iL575..CTMG,CTMX,L,X201109-201306

main32000-B2190iL585..CTMG,CTMX,L,X201109-201306

main32000-B2210iL575,585..CTMRS201306

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B2021iL575,585201109-201306

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iL575,585201109-201306

main90041-05281×2iL575,585201109-201306

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iL575,585201109-201306

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9022iL575,585..CTMRS201109-201205

main35310-B9050iL575,585..PS2;L575,585..(CTMG,CTMX,L,X)..PS1201109-201306

main35310-B9051iL575,585201308

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iL575,585201109-201306

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11369iL575,585..CTMRS201109-201110

main90043-11423iL575,585..PS2;L575,585..(CTMG,CTMX,L,X)..PS1201109-201306

35788GRACE, THRUST BEARING

main35789-B2060iL575,585201306-201307

main35789-B2061iL575,585201308

main35789-B2070iL575,585201306-201307

main35789-B2071iL575,585201308

main35789-B2080iL575,585201109-201306

main35789-B2081iL575,585201308

main35789-B2090iL575,585201109-201306

main35789-B2091iL575,585201308

main35789-B2100iL575,585201109-201306

main35789-B2101iL575,585201308

main35789-B2110iL575,585..PS2;L575,585..(CTMG,CTMX,L,X)..PS1201109-201306

main35789-B2111iL575,585201308

9004105414

main90041-05414

11 parts on this diagram · 1 diagram in section
